F15AEH (2004)
ELECTRICAL 2

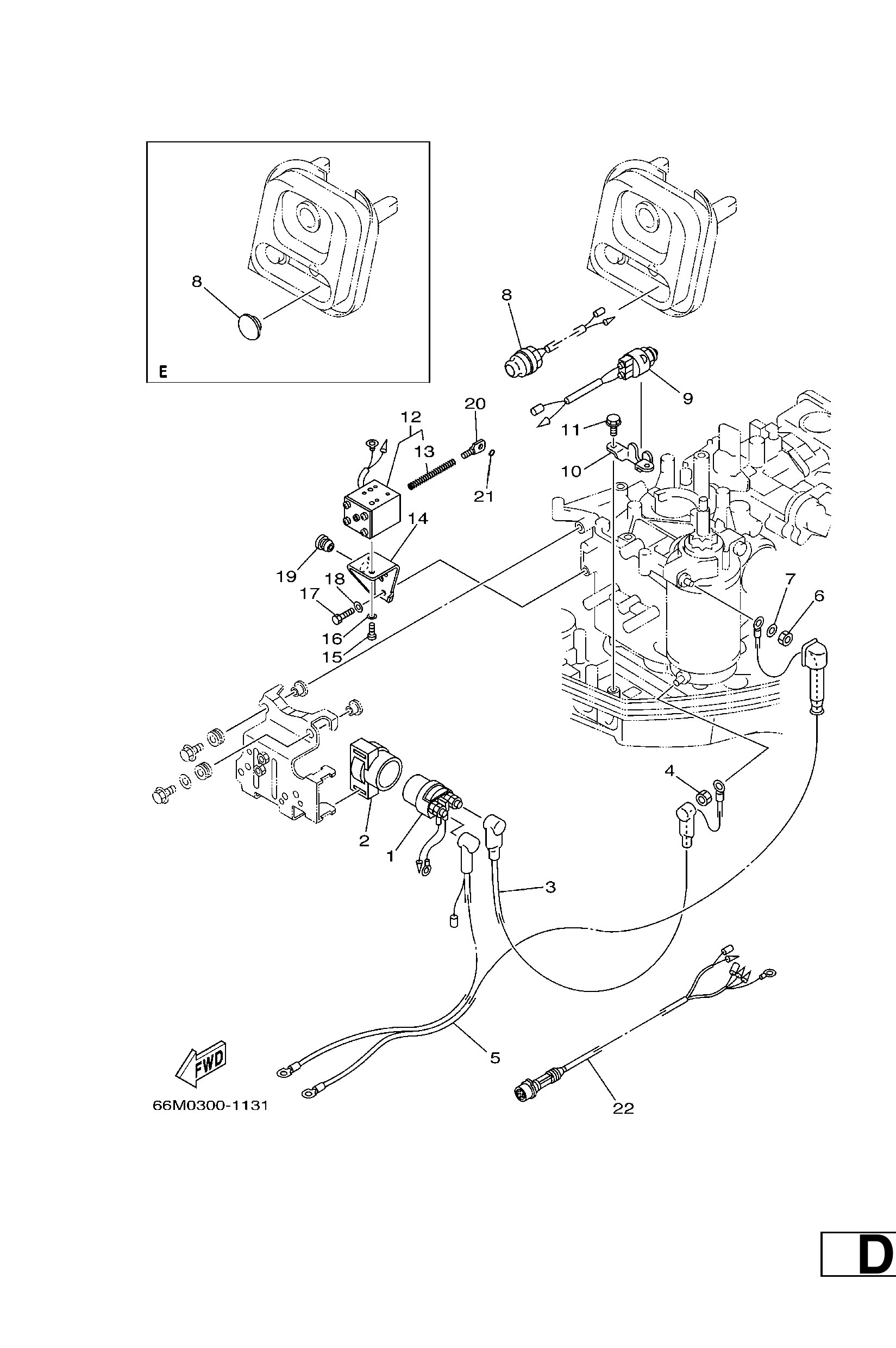

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G18194110
Starter relay
Loading…
↗
2
6G18195200
Holder, relay
Loading…
↗
3
66M8211700
Wire, lead
Loading…
↗
4
65W8182B00
Nut, special
Loading…
↗
5
66M8210500
Battery cable
Loading…
↗
6
9538008700
Nut(661)
Loading…
↗
7
9299008600
Washer, plain (663)
Loading…
↗
8
65W8187000
Starting switch assembly
Loading…
↗
8
6G14272500
Grommet
Loading…
↗
9
6H38254000
Neutral switch assembly
Loading…
↗
10
6J88255400
Stay, neutral switch
Loading…
↗
11
9010906M86
Bolt
Loading…
↗
12
66M8611100
Coil, solenoid
Loading…
↗
13
66M8611600
Wire, Pull
Loading…
↗
14
66M8611200
Stay, Solenoid
Loading…
↗
15
9788005008
Screw, with washer
Loading…
↗
16
9299005600
Washer, plain (646)
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
9048010M13
Grommet (6e0)
Loading…
↗
20
66M8611700
Hook, wire pull
Loading…
↗
21
9321003261
O-ring (663)
Loading…
↗
22
66M8259000
Wire Harness assembly
Loading…
↗
