F15AEP (2002)
ELECTRICAL 2

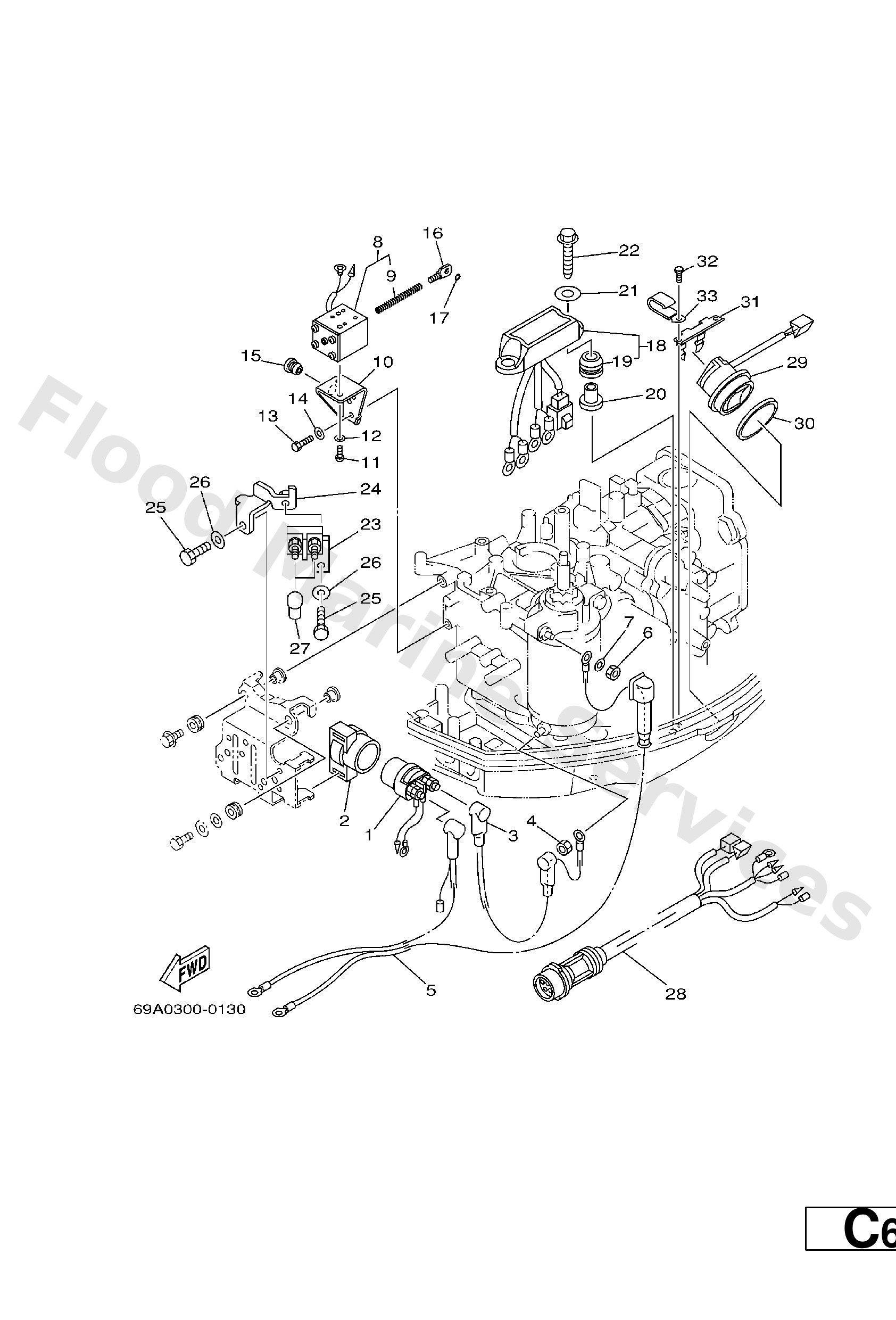

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G1−81941−10
Starter relay
Loading…
↗
2
6G1−81952−00
Holder, relay
Loading…
↗
3
66M−82117−00
Wire, lead
Loading…
↗
4
65W−8182B−00
Nut, special
Loading…
↗
5
66M−82105−00
Battery cable
Loading…
↗
6
95380−08700
Nut(661)
Loading…
↗
7
92990−08600
Washer, plain (663)
Loading…
↗
8
66M−86111−00
Coil, solenoid
Loading…
↗
9
66M−86116−00
Wire, Pull
Loading…
↗
10
66M−86112−00
Stay, Solenoid
Loading…
↗
11
97880−05008
Screw, with washer
Loading…
↗
12
92990−05600
Washer, plain (646)
Loading…
↗
13
97095−06016
Bolt, hexagon deep recess
Loading…
↗
14
92995−06600
Washer, plain (646)
Loading…
↗
15
90480−10M13
Grommet (6e0)
Loading…
↗
16
66M−86117−00
Hook, wire pull
Loading…
↗
17
93210−03261
O-ring (663)
Loading…
↗
18
69A−81950−00
Relay assembly
Loading…
↗
19
90480−09M12
Grommet (6a0)
Loading…
↗
20
90387−06M03
Collar (676)
Loading…
↗
21
90201−06416
Washer, plate(663)
Loading…
↗
22
90109−06MA2
Bolt
Loading…
↗
23
6H5−81920−00
Terminal assembly
Loading…
↗
24
69A−81929−00
Bracket, Terminal
Loading…
↗
25
97095−06012
Bolt(gh1)
Loading…
↗
27
6G5−82119−00
Cover, lead wire
Loading…
↗
28
69A−82590−00
Wire Harness assembly
Loading…
↗
29
63D−82563−10
Trim & tilt switch assembly
Loading…
↗
30
6E5−82587−00
Gasket
Loading…
↗
31
69A−83614−00
Bracket
Loading…
↗
32
90109−06M86
Bolt
Loading…
↗
33
90465−06M88
Clamp
Loading…
↗
