F200BET (2025)
ELECTRICAL 2

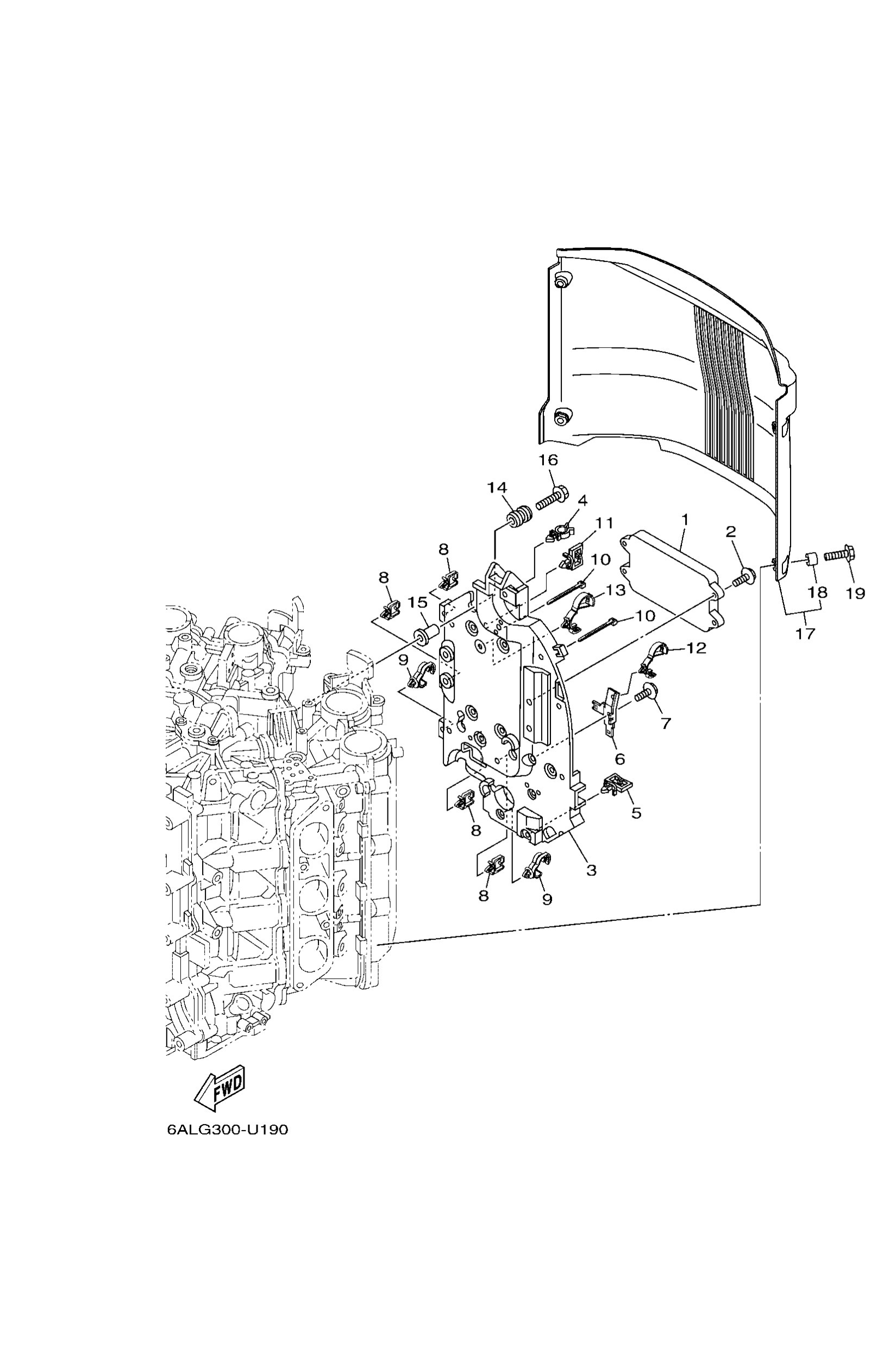

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6S18591A53
FOR BRA
Engine Control Unit assembly
Loading…
↗
1
6S18591A43
EXCEPT FOR BRA
Engine Control Unit assembly
Loading…
↗
2
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
6P28231601
Bracket, ignition coil
Loading…
↗
4
9046419M45
Clamp(65j)
Loading…
↗
5
9046423199
Clamp(4hm)
Loading…
↗
6
6P28184510
Plate
Loading…
↗
7
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
8
9046408004
Clamp
Loading…
↗
9
9046413249
Clamp
Loading…
↗
10
9046514M66
Clamp
Loading…
↗
12
9046412183
Clamp(jn2)
Loading…
↗
14
6A08231701
Damper, ignition coil
Loading…
↗
15
9038706119
Collar
Loading…
↗
16
9011906289
Bolt, with washer
Loading…
↗
17
6P28231421
Cover, ignition coil
Loading…
↗
18
9038706044
Collar
Loading…
↗
19
9011906M92
Bolt, with washer
Loading…
↗
