F200GET (2014)
ELECTRICAL 2

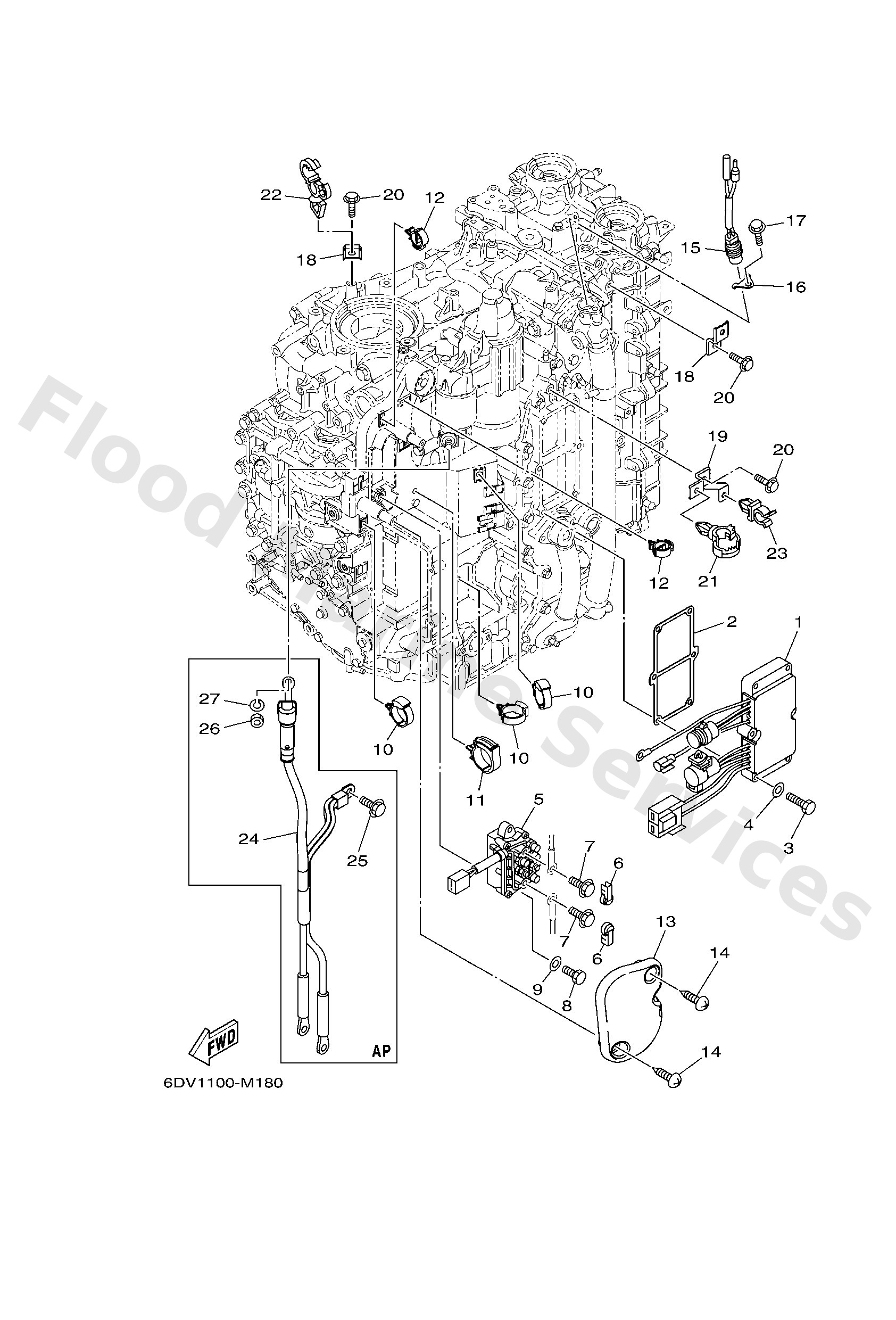

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6DA8196000
Rectifier & regulator assembly
Loading…
↗
2
6DA8197500
Plate, rectifier fitting
Loading…
↗
3
9709506035
Bolt(j52)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6AW8195000
Relay assembly
Loading…
↗
6
6P28183X00
Cap, terminal
Loading…
↗
7
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
8
9709506020
Bolt(7u8)
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
11
9046432002
Clamp
Loading…
↗
12
9046418246
Clamp(4tr)
Loading…
↗
13
6DA8194200
Cover
Loading…
↗
14
9016905M00
Screw truss head tapping
Loading…
↗
15
6P28256001
Thermo switch assembly
Loading…
↗
16
6E98258800
Plate
Loading…
↗
17
9589506012
Bolt, flange deep recess
Loading…
↗
18
6DA8238800
Plate
Loading…
↗
19
6DA8238900
Plate 2
Loading…
↗
20
9589506016
Bolt, flange deep recess
Loading…
↗
21
9046420181
Clamp(4ap)
Loading…
↗
22
9046413249
Clamp
Loading…
↗
23
9046409008
Clamp
Loading…
↗
24
6DA8210501
AP
Wire harness
Loading…
↗
25
9589508016
AP
Bolt, flange deep recess
Loading…
↗
26
9533308600
AP
Nut(6l2)
Loading…
↗
27
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
