F20AET (2009)
ELECTRICAL 2

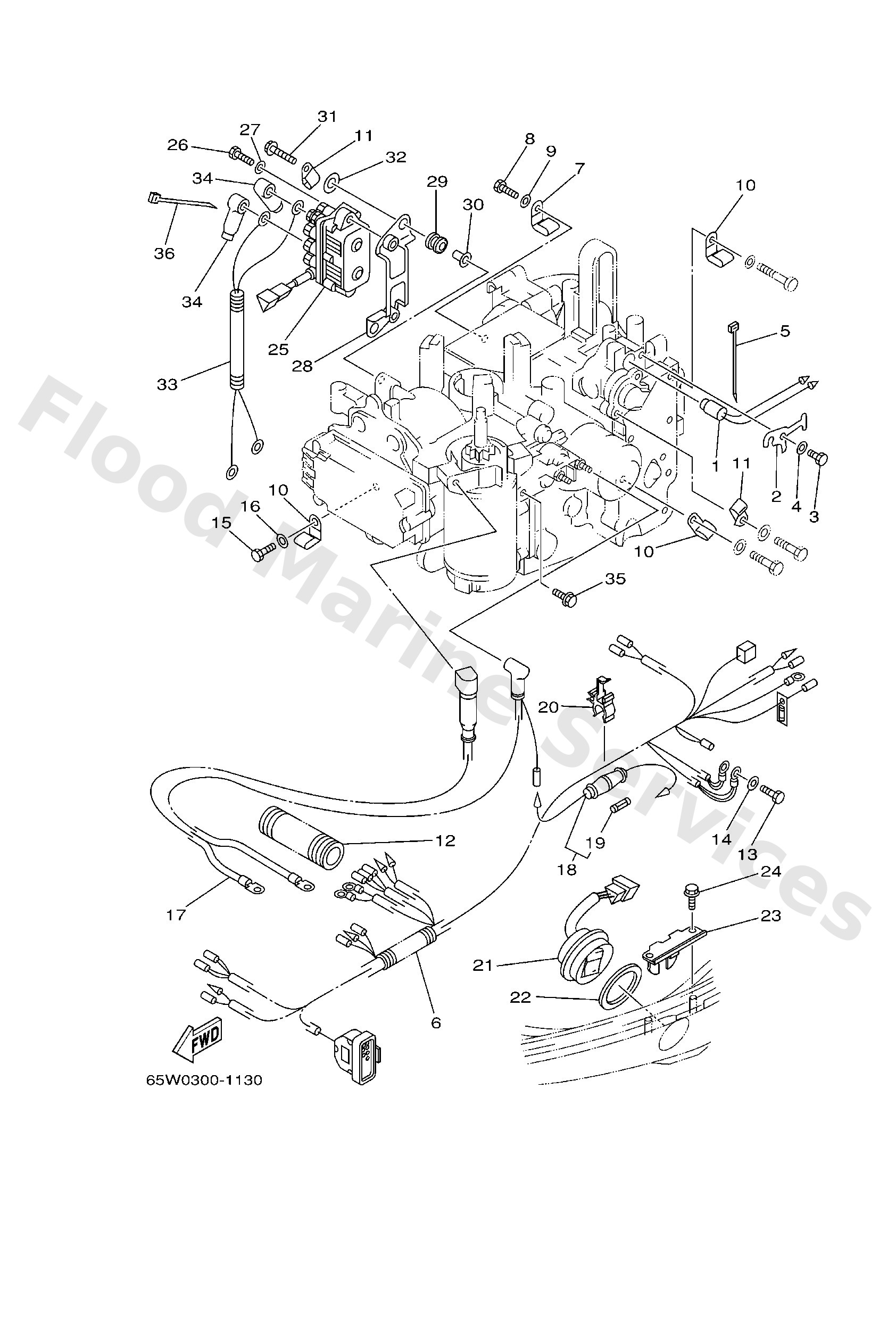

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
65W8579000
Thermosensor assembly
Loading…
↗
2
65W8575700
Retainer
Loading…
↗
3
9709506012
Bolt(gh1)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
65W8259010
-
Loading…
↗
6
65W8259030
Wire Harness assembly (10P)
Loading…
↗
6
65W8259040
-
Loading…
↗
7
9046508M08
Clamp (6e5)
Loading…
↗
8
9709506016
Bolt, hexagon deep recess
Loading…
↗
11
9046506M88
Clamp
Loading…
↗
12
6N78355700
Tube
Loading…
↗
15
9709505016
Bolt(6a1)
Loading…
↗
16
9299505600
Washer, plain (646)
Loading…
↗
17
65W8210500
Battery cable
Loading…
↗
18
6G88215000
Fuse holder assembly
Loading…
↗
19
6638215100
Fuse
Loading…
↗
20
6G58215200
Holder, fuse
Loading…
↗
21
6H18256310
Trim & tilt switch assembly
Loading…
↗
22
6E58258700
Gasket
Loading…
↗
23
62Y8361400
Bracket
Loading…
↗
24
9010906M86
Bolt
Loading…
↗
25
61A8195000
Relay assembly
Loading…
↗
26
9707506020
Bolt(7u8)
Loading…
↗
28
65W8194800
Bracket
Loading…
↗
29
6A08231700
Damper, ignition coil
Loading…
↗
30
9038706119
Collar
Loading…
↗
31
9589506030
Bolt, flange deep recess
Loading…
↗
32
9020112M16
Washer, plate (679)
Loading…
↗
33
65W8194900
Wire, Lead
Loading…
↗
34
6828211901
Cover, lead wire
Loading…
↗
35
9757506516
Bolt, hexagon w/w deep recess
Loading…
↗
