F20BEH (2011)
ELECTRICAL 2

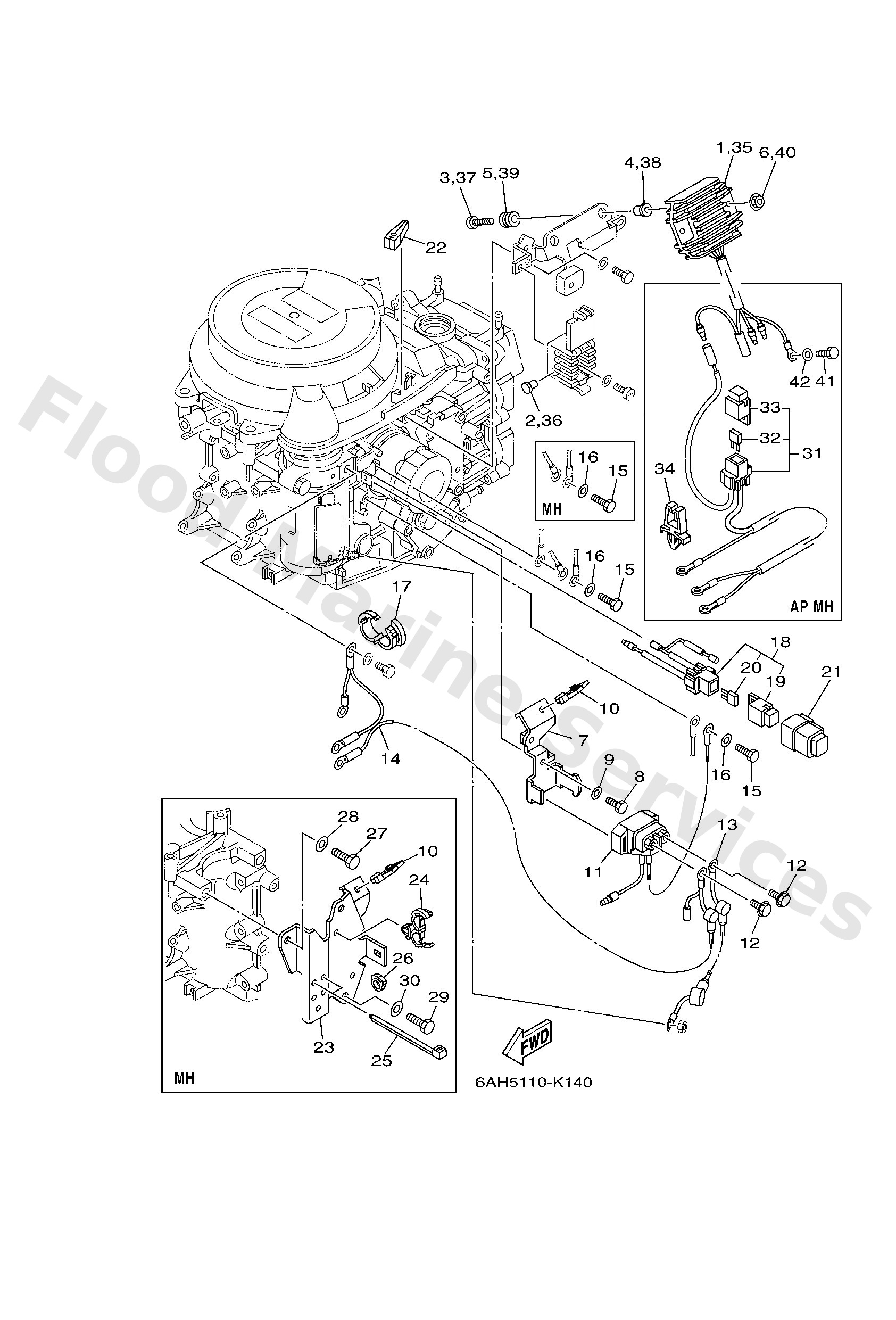

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
35
6AH8196000
AP
Rectifier & regulator assembly
Loading…
↗
36
7038211900
AP
Cover, lead wire
Loading…
↗
37
9898006030
AP
Screw, bind(j39)
Loading…
↗
38
9038706M70
AP
Collar (6h5)
Loading…
↗
39
9048013M24
AP
Grommet (6e9)
Loading…
↗
40
9578006500
AP
Nut, flange(7nb)
Loading…
↗
7
6AH8194500
Plate, switch fitting
Loading…
↗
41
9709506014
AP
Bolt(gj3)
Loading…
↗
42
9299506600
AP
Washer, plain (646)
Loading…
↗
10
9046408004
Clamp
Loading…
↗
11
68T8194000
Starter relay assembly
Loading…
↗
12
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
13
6AH8211700
Wire, lead
Loading…
↗
14
6AH8210500
Battery cable
Loading…
↗
17
9046416001
Clamp
Loading…
↗
18
6AH8215000
Fuse holder assembly
Loading…
↗
19
67F8215B10
Cap (yellow)
Loading…
↗
20
67F8215100
Fuse
Loading…
↗
21
6AH8215700
Damper
Loading…
↗
22
67F2812A00
Puller, fuse
Loading…
↗
23
6AH8239800
Plate 3
Loading…
↗
24
9046418246
Clamp(4tr)
Loading…
↗
25
9046513M18
Clamp
Loading…
↗
26
9046409010
Clamp
Loading…
↗
27
9709508025
Bolt (62g)
Loading…
↗
28
9299508600
Washer, plain (663)
Loading…
↗
29
9709508016
Bolt, hexagon deep recess
Loading…
↗
31
6AH8194900
AP
Wire, lead
Loading…
↗
33
67F8215B00
Cap (black)
Loading…
↗
34
9046406001
AP
Clamp
Loading…
↗
