F20GMH (2023)
ELECTRICAL 2

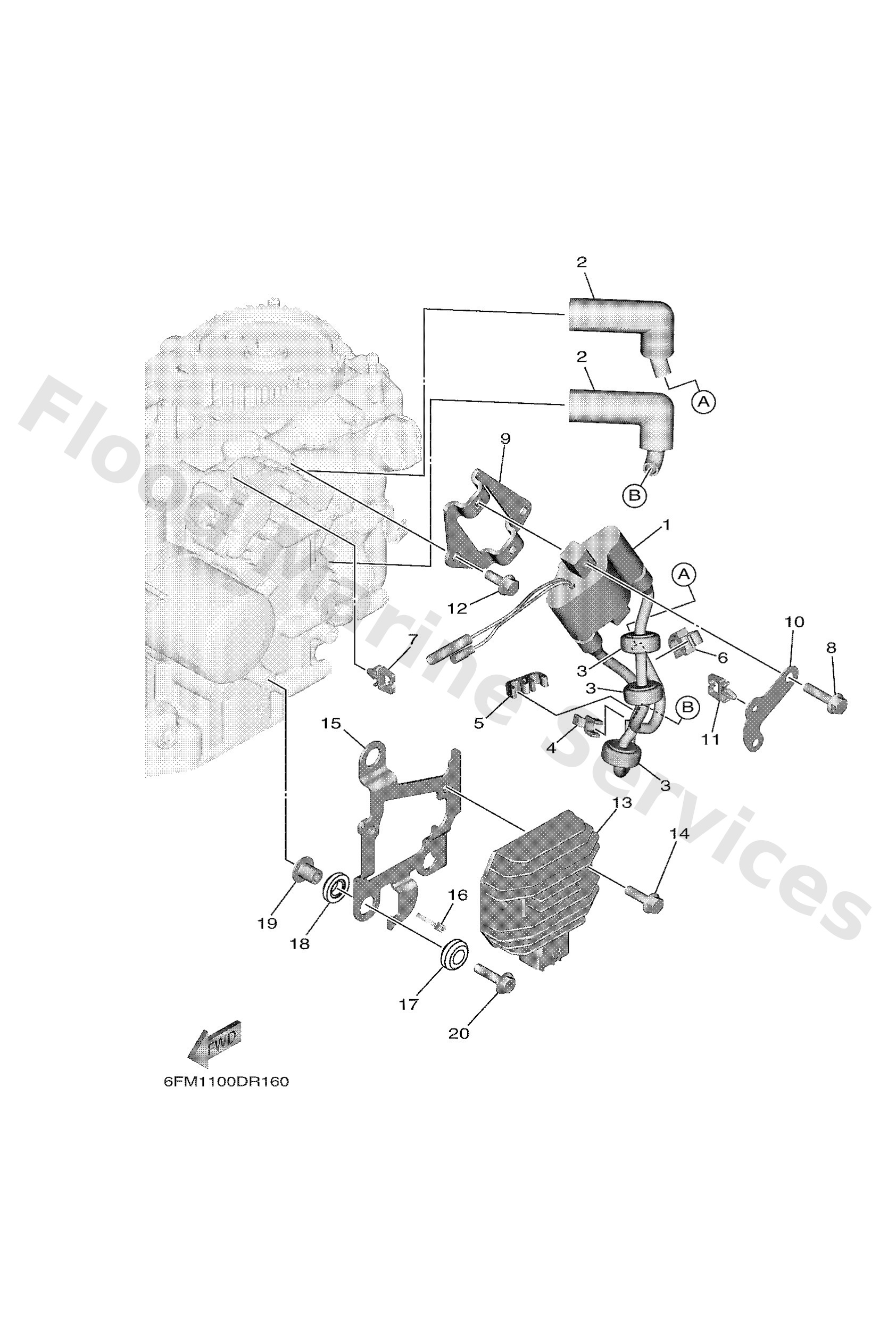

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6F58557013
Ignition coil assembly
Loading…
↗
2
6AH8237000
Plug cap assembly
Loading…
↗
3
9048025003
Grommet
Loading…
↗
4
9046407M41
Clamp(62y)
Loading…
↗
5
67F8236100
Clamp, cord
Loading…
↗
6
9046409018
Clamp
Loading…
↗
7
9046411121
Clamp(4gy)
Loading…
↗
8
95D9506020
Bolt, flange deep recess
Loading…
↗
9
6FM8231600
Bracket, ignition coil
Loading…
↗
10
6FM8153900
Plate, coil
Loading…
↗
12
95D9506016
Bolt, flange deep recess
Loading…
↗
13
6FM8196000
Rectifier & regulator assembly
Loading…
↗
13
6FM8196010
Rectifier & regulator assembly
Loading…
↗
15
6FM8711E00
Stay, rectifier
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6FM8253501
Grommet
Loading…
↗
18
6FM8254501
Grommet
Loading…
↗
19
9038706289
Collar
Loading…
↗
20
9011906311
Bolt, with washer
Loading…
↗
