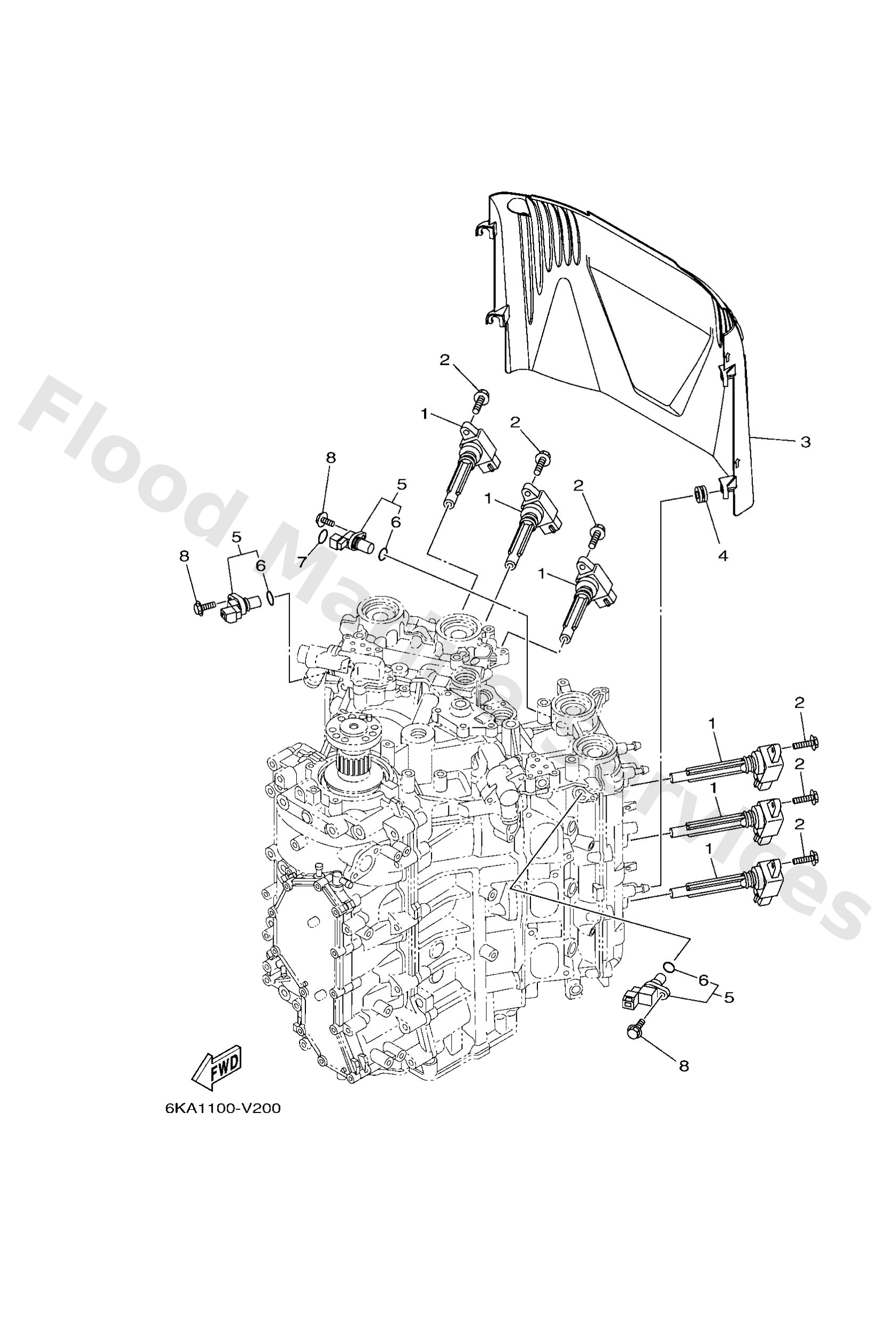

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
6CB8231000
Ignition coil assembly
Loading…

↗
2
95D9506025
Bolt, flange deep recess
Loading…

↗
3
6CB8231400
Cover, ignition coil
Loading…

↗
4
9048012314
Grommet(3aa)
Loading…

↗
5
6P28589600
Sensor, cam position
Loading…

↗
6
6P28507500
O-ring
Loading…

↗
7
9321011001
O-ring
Loading…

↗
8
97E9506520
Bolt, hexagon w/w deep recess
Loading…

↗
