F25AEH (1998)
ELECTRICAL 2

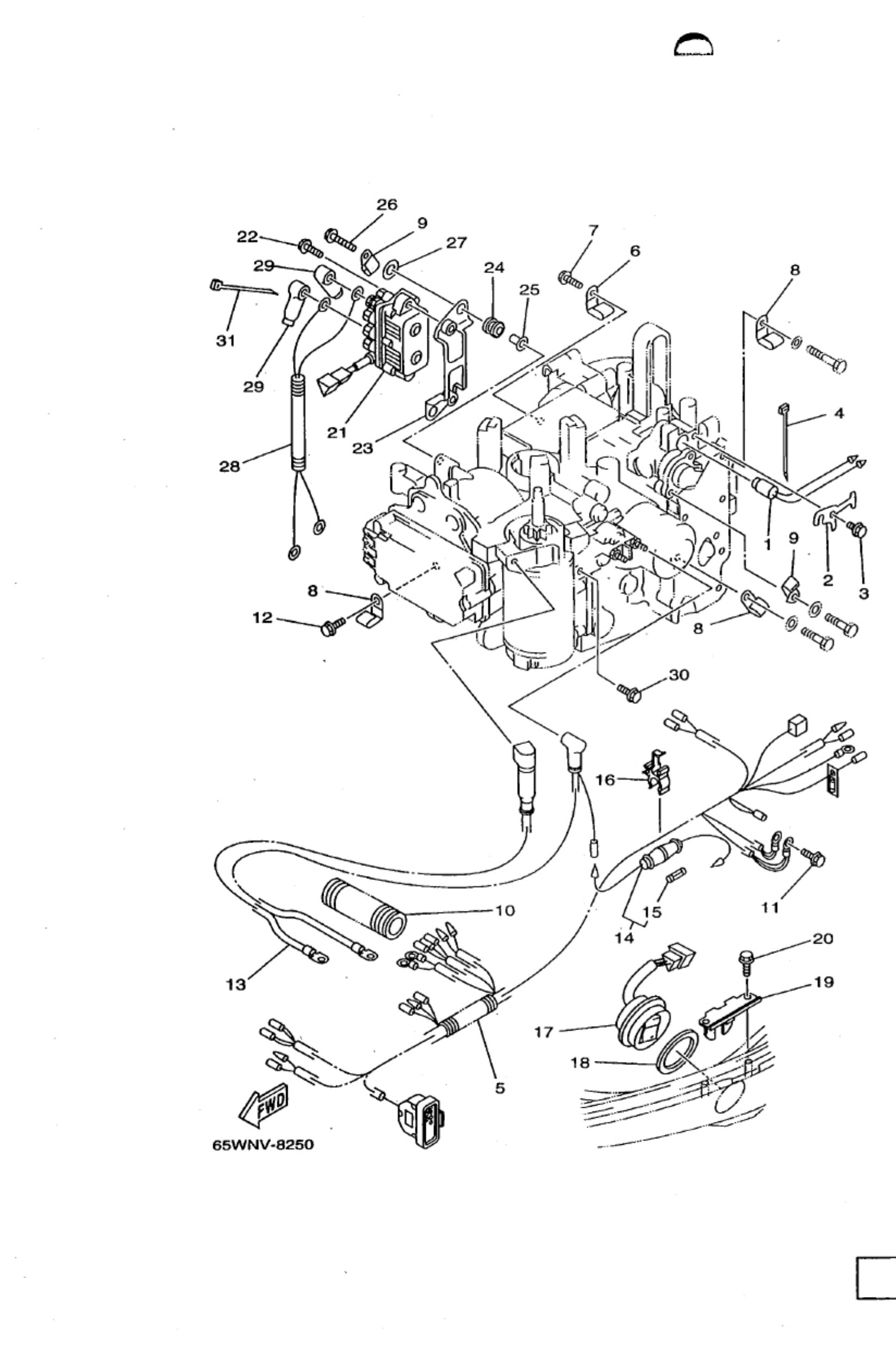

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
65W8579000
ff
Thermosensor assembly
Loading…
↗
2
65W8575700
RIE
Retainer
Loading…
↗
3
9759506512
RIE
Bolt, hexagon w/w deep recess
Loading…
↗
4
9046511M10
HIRI
Clamp
Loading…
↗
5
65W8259000
UR
-
Loading…
↗
5
65W8259010
UR
-
Loading…
↗
5
65W8259030
UR
Wire Harness assembly (10P)
Loading…
↗
8
9046508M08
3f 3f 3
Clamp (6e5)
Loading…
↗
11
9759506516
2| 2| 2
Bolt, with washer(6r6)
Loading…
↗
9
9046508M51
Clamp
Loading…
↗
10
6N78355700
Tube
Loading…
↗
12
9759505516
11] 1
Bolt, with washer
Loading…
↗
13
65W8210500
11] 1
Battery cable
Loading…
↗
14
8G88215000
Fuse Holder assembly
Loading…
↗
15
6638215100
[IRIE
Fuse
Loading…
↗
16
6G58215200
[IRIE
Holder, fuse
Loading…
↗
17
6H18256310
Trim & tilt switch assembly
Loading…
↗
18
6E58258700
Gasket
Loading…
↗
20
9010906M86
Bolt
Loading…
↗
21
61A8195000
Relay assembly
Loading…
↗
22
9757506520
Bolt, hexagon w/w deep recess
Loading…
↗
22
65WNV8250
V
Loading…
↗
25
6244254200
Collar
Loading…
↗
26
9589506030
Bolt, flange deep recess
Loading…
↗
27
9020112M16
Washer, plate (679)
Loading…
↗
28
65W8194900
Wire, Lead
Loading…
↗
29
6828211901
Cover, lead wire
Loading…
↗
30
9757506516
Bolt, hexagon w/w deep recess
Loading…
↗
