F25DMH (2010)
ELECTRICAL 2

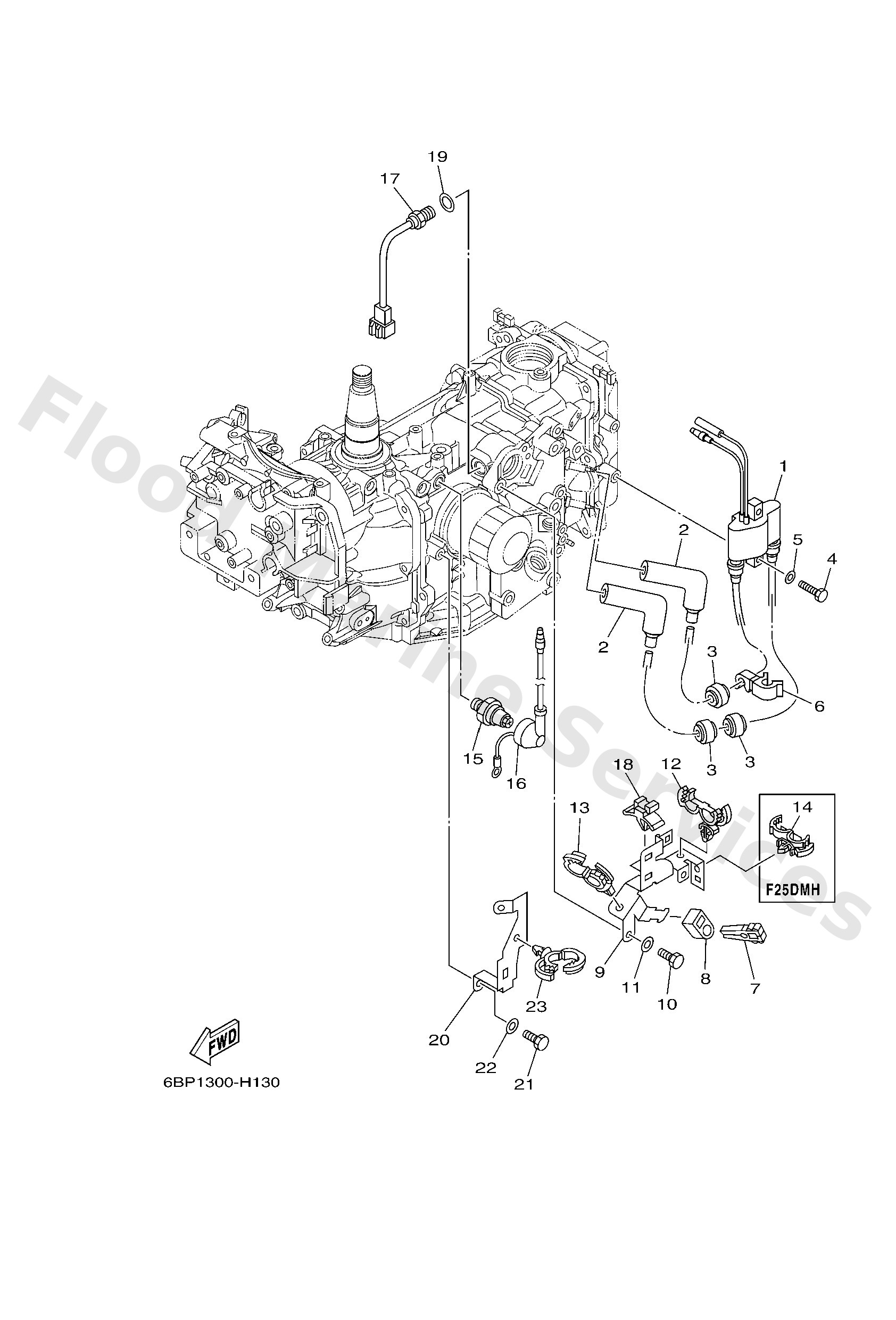

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6F58557013
Ignition coil assembly
Loading…
↗
2
6AH8237000
Plug cap assembly
Loading…
↗
3
9048025003
Grommet
Loading…
↗
4
9709506025
Bolt
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9046409018
Clamp
Loading…
↗
7
67F2812A00
Puller, fuse
Loading…
↗
8
67C8215500
Band
Loading…
↗
9
6BL8339X00
Clamp, cord
Loading…
↗
10
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9046418246
Clamp(4tr)
Loading…
↗
13
9046420181
Clamp(4ap)
Loading…
↗
15
64J8250400
Oil pressure switch assembly
Loading…
↗
16
68V8131500
Lead wire assembly
Loading…
↗
17
6C58579000
Thermosensor assembly
Loading…
↗
18
9046409M47
Clamp(65j)
Loading…
↗
19
9043014115
Gasket (663)
Loading…
↗
20
6BL8238900
Plate 2
Loading…
↗
