F40FED (2023)
ELECTRICAL 2

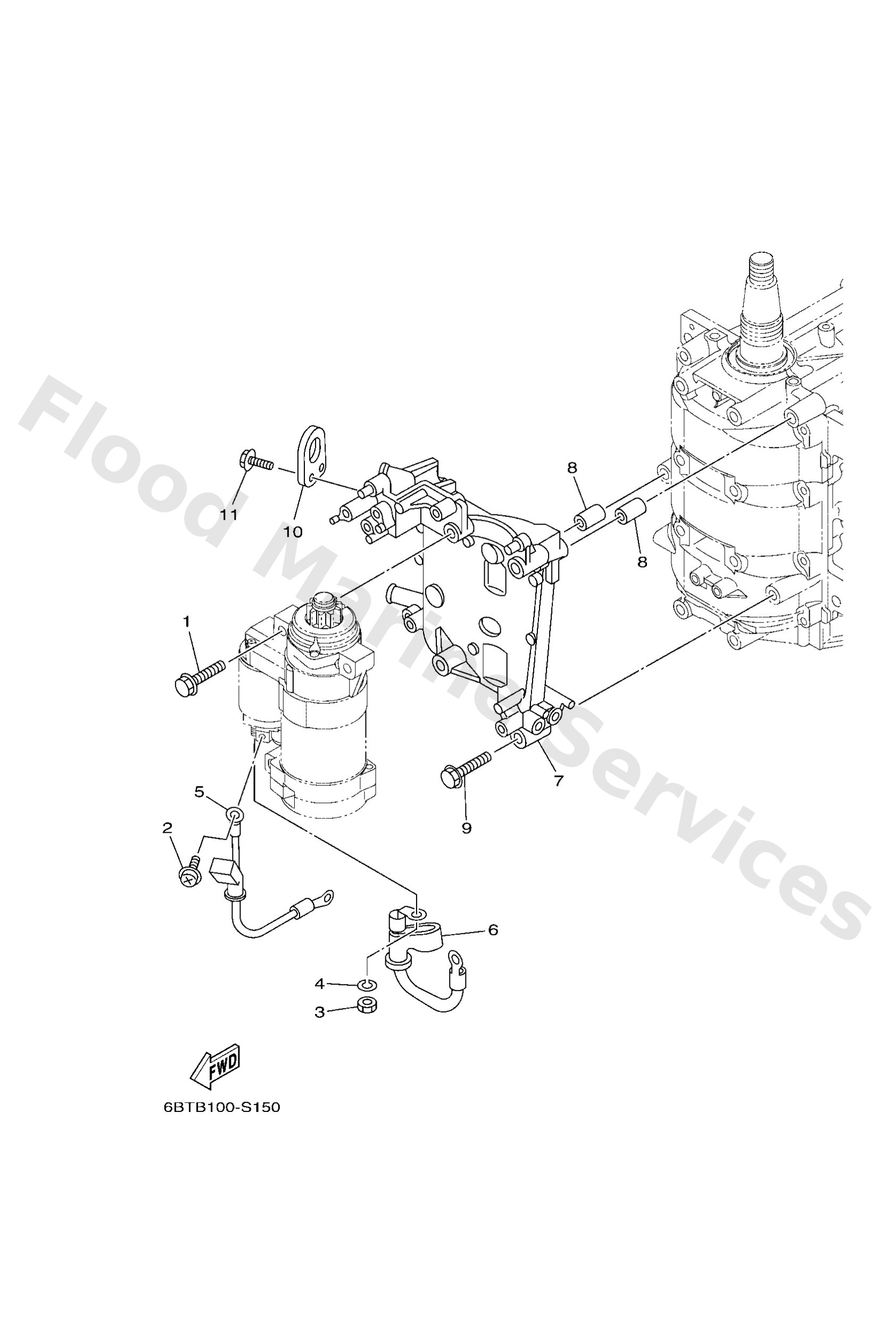

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
9751308545
Bolt, with washer
Loading…
↗
2
9015905M12
Screw, with washer(6t4)
Loading…
↗
3
9533308600
Nut(6l2)
Loading…
↗
4
9290308100
Ybs67-8 washer, spring
Loading…
↗
5
6BG8181500
Cord, starter motor
Loading…
↗
6
6BG8211501
Wire, plus lead
Loading…
↗
7
6BG8182200
Bracket, starting motor
Loading…
↗
8
9953010114
Pin, dowel(3vd)
Loading…
↗
9
97E9508545
Bolt, hexagon w/w deep recess
Loading…
↗
10
62Y1111900
Hanger, engine
Loading…
↗
11
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
