F40FEHD (2011)
ELECTRICAL 2

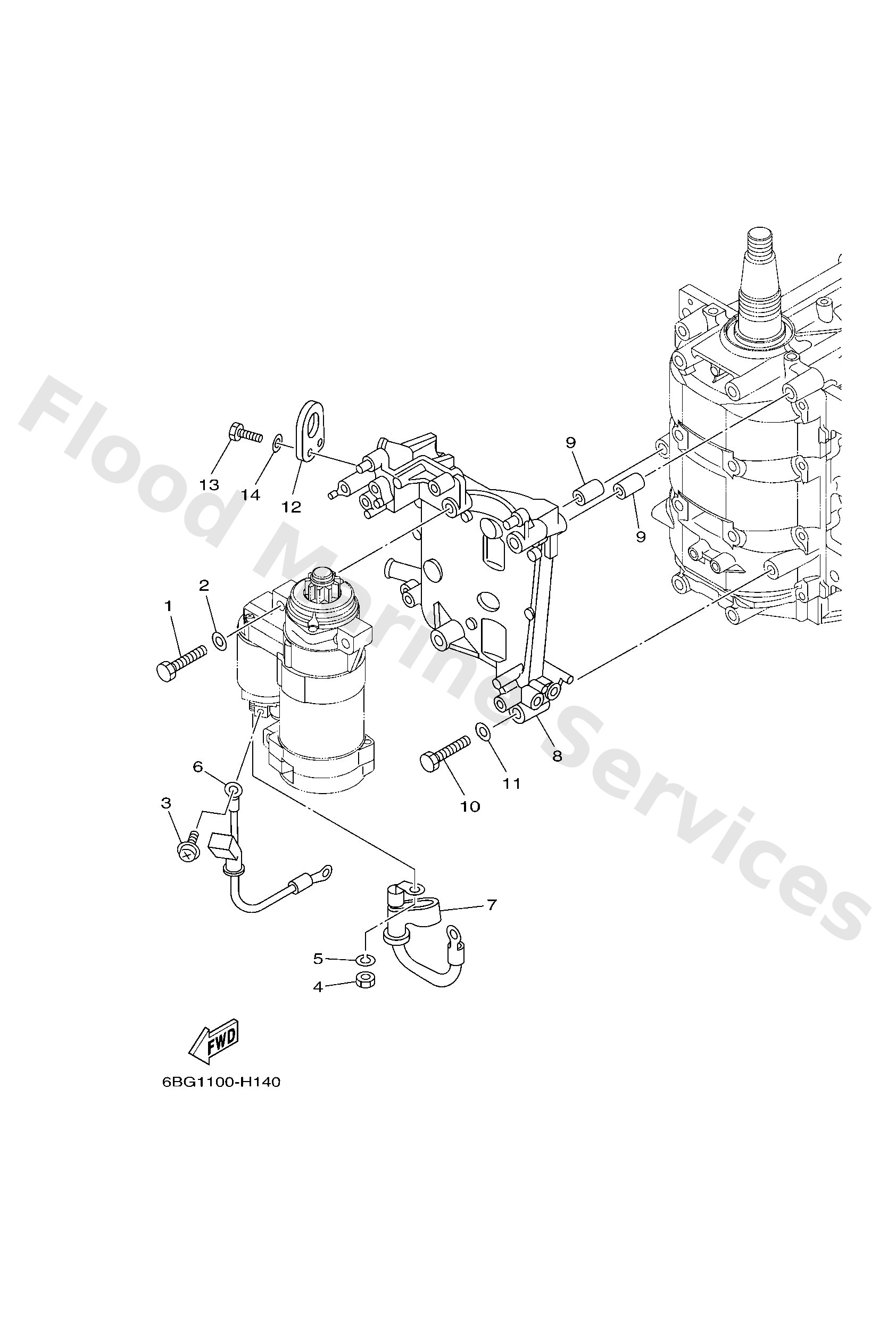

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
9701308045
Bolt
Loading…
↗
2
9290308600
Washer, plain (663)
Loading…
↗
3
9015905M12
Screw, with washer(6t4)
Loading…
↗
4
9533308600
Nut(6l2)
Loading…
↗
5
9290308100
Ybs67-8 washer, spring
Loading…
↗
6
6BG8181500
Cord, starter motor
Loading…
↗
7
6BG8211500
Wire, plus lead
Loading…
↗
8
6BG818220094
Bracket, starting motor
Loading…
↗
9
9959010114
Pin, dowel
Loading…
↗
10
9709508045
Bolt, hexagon
Loading…
↗
11
9299508600
Washer, plain (663)
Loading…
↗
12
62Y1111900
Hanger, engine
Loading…
↗
13
9709506020
Bolt(7u8)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
