F40GET (2021)
ELECTRICAL 2

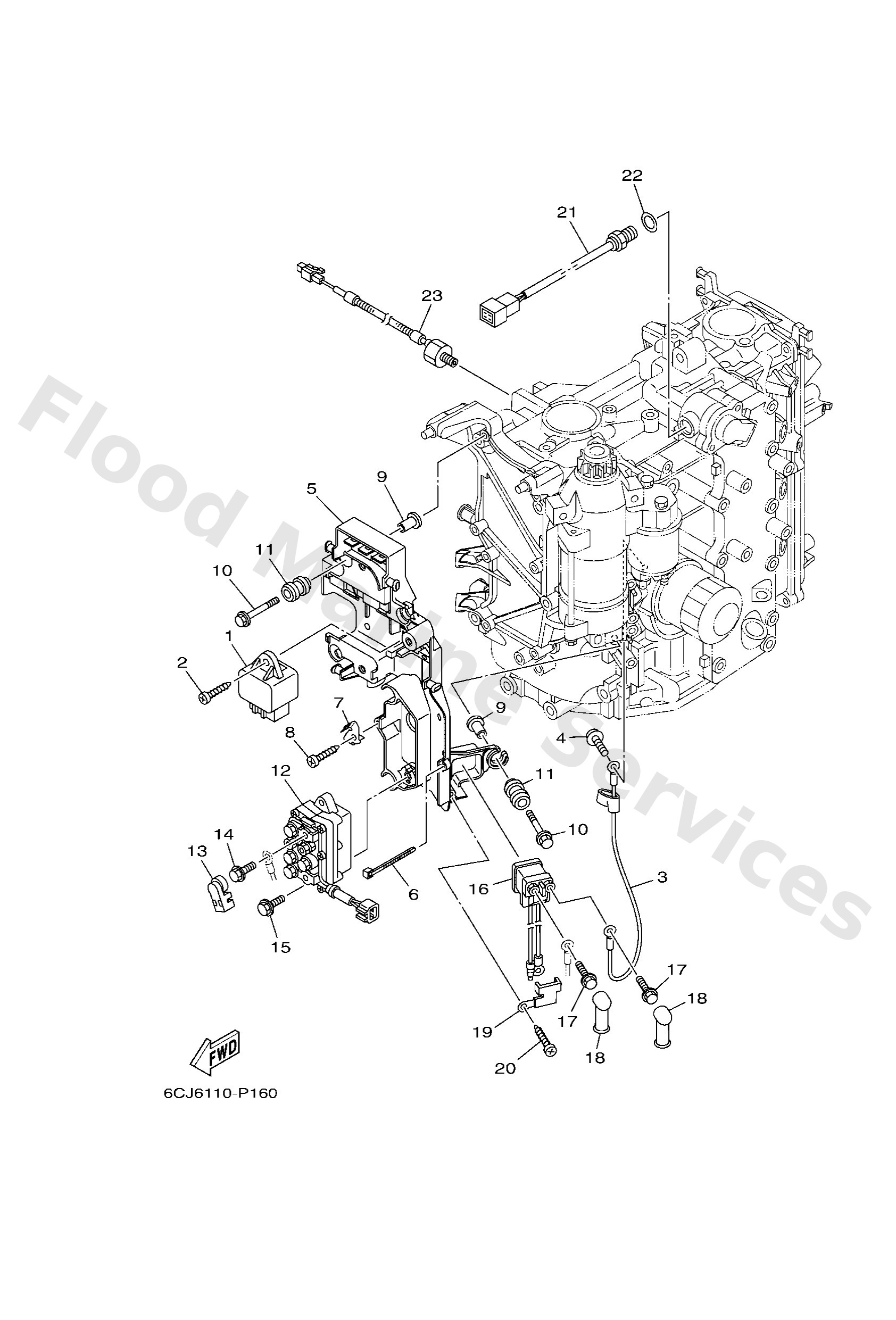

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
60E8195000
Relay assembly
Loading…
↗
2
9778060620
Screw, tapping(6k8)
Loading…
↗
3
6C58181500
Cord, starter motor
Loading…
↗
4
9015904005
Screw, with washer
Loading…
↗
5
6CJ8194801
Bracket
Loading…
↗
6
9046513M97
Clamp
Loading…
↗
7
6CJ8554800
Holder
Loading…
↗
9
9038706119
Collar
Loading…
↗
10
9011906289
Bolt, with washer
Loading…
↗
11
6A08231701
Damper, ignition coil
Loading…
↗
12
63P8195000
Relay assembly
Loading…
↗
13
6P28183X00
Cap, terminal
Loading…
↗
14
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
15
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
16
68V8194A00
Relay
Loading…
↗
18
6G58211900
Cover, lead wire
Loading…
↗
19
68F8195300
Stay, relay
Loading…
↗
21
6CJ8579000
Thermosensor assembly
Loading…
↗
22
9043014115
Gasket (663)
Loading…
↗
23
6CJ8578000
Sensor, knock
Loading…
↗
