F40JMHD (2025)
ELECTRICAL 2

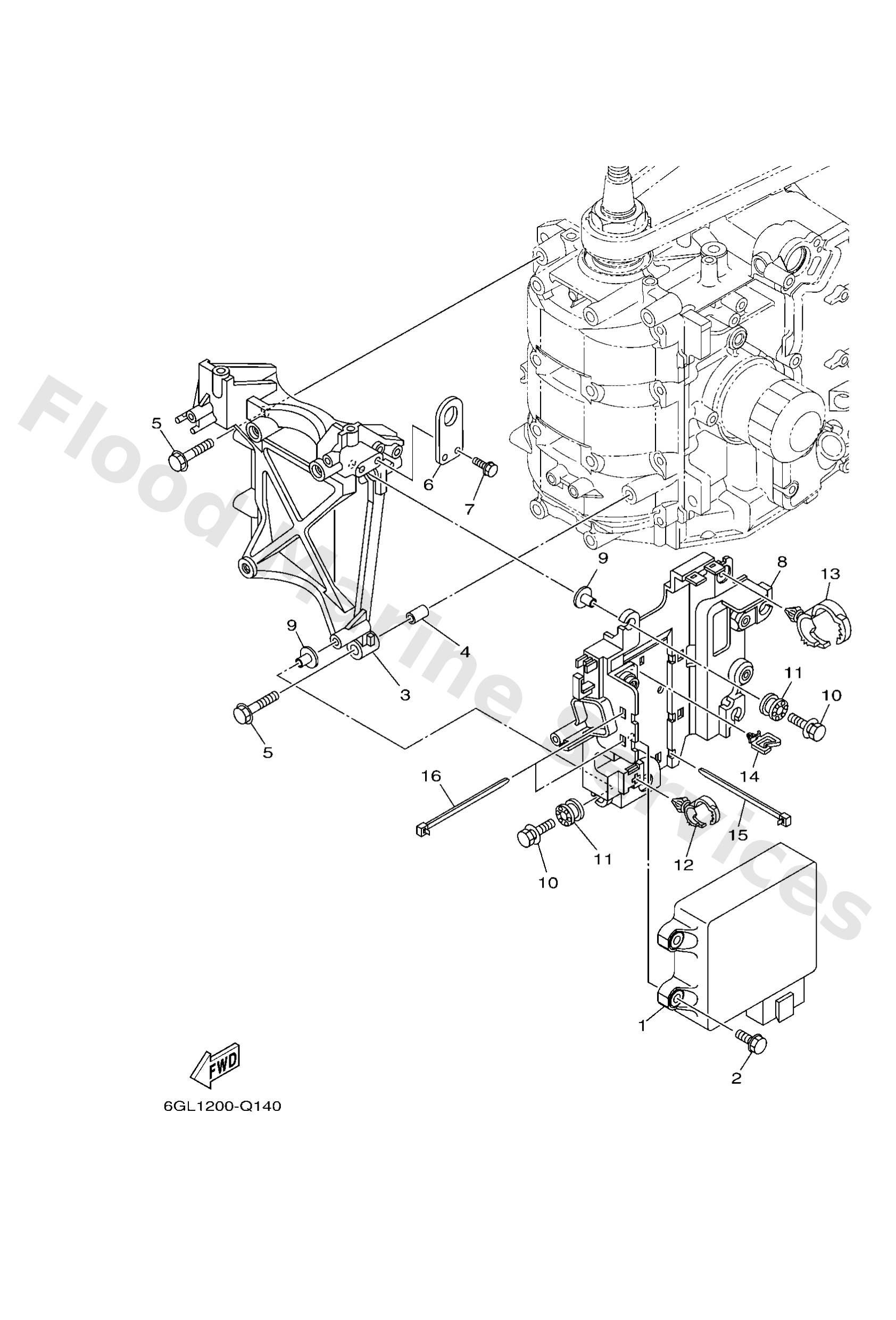

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6GL8554000
C.d.i. Unit assembly
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
6GL8554200
Bracket
Loading…
↗
4
9953010114
Pin, dowel(3vd)
Loading…
↗
5
97E9508545
Bolt, hexagon w/w deep recess
Loading…
↗
6
6CJ1111900
Hanger, engine
Loading…
↗
7
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
8
6GL8194800
Bracket
Loading…
↗
9
69M4275801
Collar
Loading…
↗
10
9011906289
Bolt, with washer
Loading…
↗
11
64J8551601
Spacer
Loading…
↗
12
9046413249
Clamp
Loading…
↗
13
9046420181
Clamp(4ap)
Loading…
↗
14
9046408004
Clamp
Loading…
↗
15
9046513M11
Clamp (6e5)
Loading…
↗
