F60AET (2007)
ELECTRICAL 2

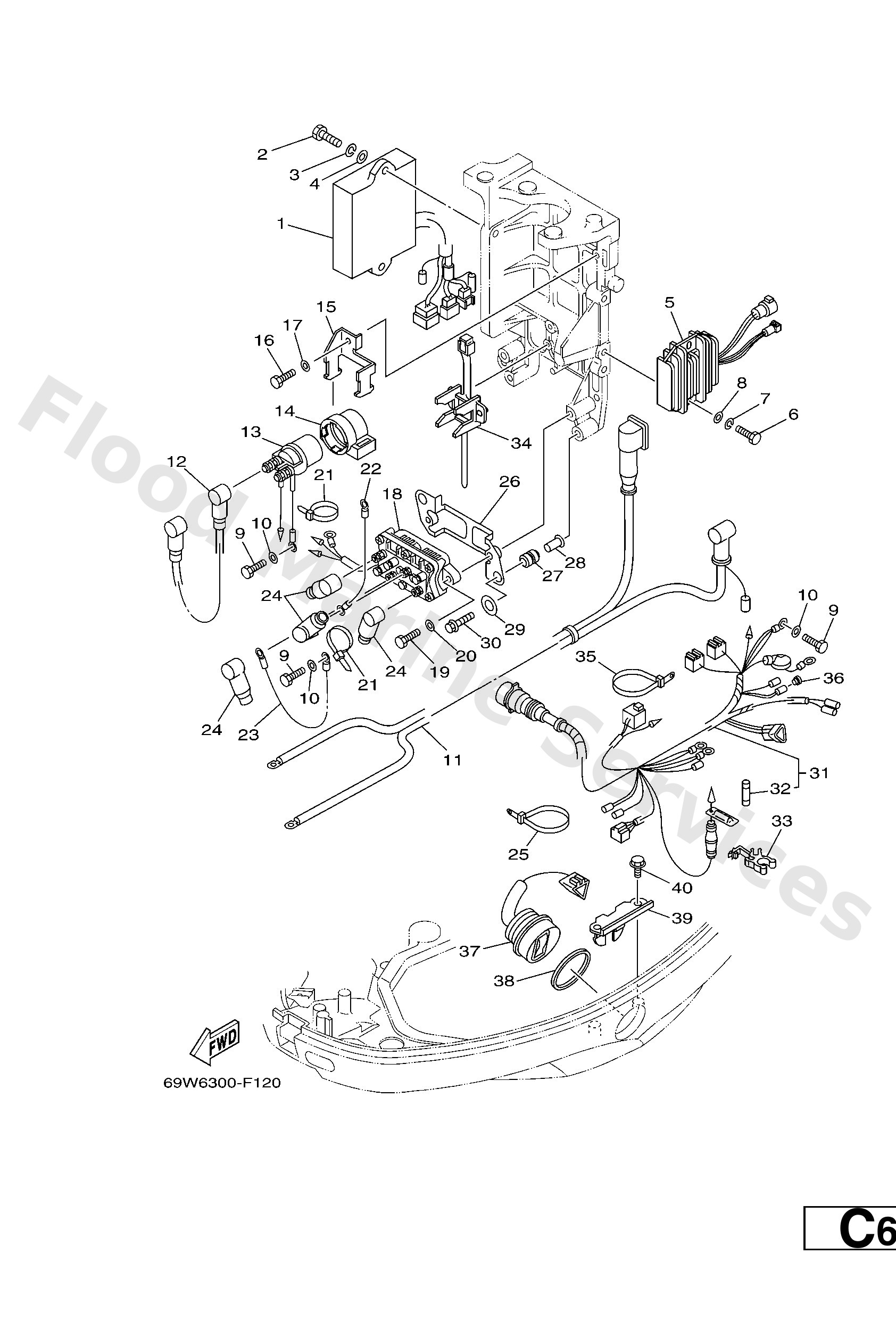

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
69W8554000
C.d.i. unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506100
Washer(6a1)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
64J8196000
Rectifier & regulator assembly
Loading…
↗
6
9709506025
Bolt
Loading…
↗
9
9709506012
Bolt(gh1)
Loading…
↗
11
62Y8210500
Battery cable
Loading…
↗
12
6E58211701
Wire, lead
Loading…
↗
13
6G18194110
Starter relay
Loading…
↗
14
6G18195200
Holder, relay
Loading…
↗
15
6L28194500
Plate, switch fitting
Loading…
↗
16
9709506014
Bolt(gj3)
Loading…
↗
18
6H18195000
Relay aasy
Loading…
↗
21
9046513M11
Clamp (6e5)
Loading…
↗
22
6H28194901
Wire, lead
Loading…
↗
23
61A8194900
Wire, lead
Loading…
↗
24
6828211901
Cover, lead wire
Loading…
↗
25
9046513M24
Band, switch cord
Loading…
↗
26
62Y8194800
Bracket
Loading…
↗
27
6A08231700
Damper, ignition coil
Loading…
↗
28
9038706119
Collar
Loading…
↗
29
9020112M16
Washer, plate (679)
Loading…
↗
30
9589506025
Bolt, flange deep recess
Loading…
↗
31
69W8259000
Wire harness assembly
Loading…
↗
32
6638215100
Fuse
Loading…
↗
33
6G58215200
Holder, fuse
Loading…
↗
34
6888259400
Clamp
Loading…
↗
36
7038211900
Cover, lead wire
Loading…
↗
37
63D8256310
Trim & tilt switch assembly
Loading…
↗
38
6E58258700
Gasket
Loading…
↗
39
62Y8361400
Bracket
Loading…
↗
40
9010906M86
Bolt
Loading…
↗
