F80AET (2004)
ELECTRICAL 2

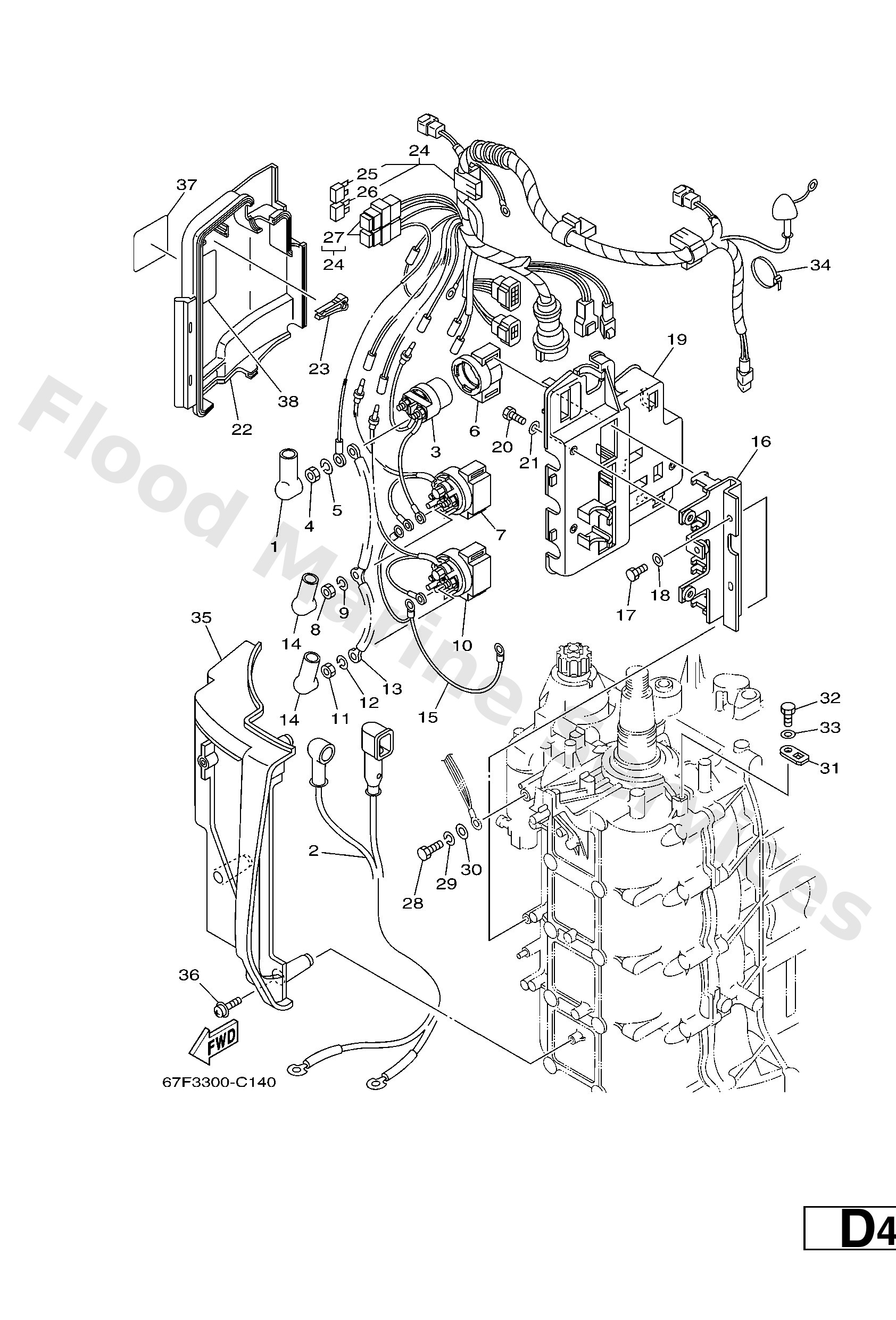

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6828211901
Cover, lead wire
Loading…
↗
2
67F8210500
Battery cable
Loading…
↗
3
6G18194A10
Starter relay
Loading…
↗
4
9017006M30
Nut(62x)
Loading…
↗
5
9020406M00
Washer, spring(62x)
Loading…
↗
6
6G18195200
Holder, relay
Loading…
↗
7
6E58195B01
Relay assembly
Loading…
↗
10
6E58195C01
Relay assembly
Loading…
↗
13
66T8714900
Connector
Loading…
↗
14
6G58211900
Cover, lead wire
Loading…
↗
15
67F8211600
Wire, minus lead
Loading…
↗
16
67F8195300
Stay, relay
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
67F8194800
Bracket
Loading…
↗
22
67F8194200
Cover
Loading…
↗
23
67F2812A00
Puller, fuse
Loading…
↗
24
67F8259003
Go to P/N ) PE0-OM-060003
Wire harness assembly
Loading…
↗
25
67F8215100
Fuse
Loading…
↗
26
67F8215110
Fuse
Loading…
↗
27
67F8215B00
Cap (black)
Loading…
↗
28
9709506020
Bolt(7u8)
Loading…
↗
29
9299506100
Washer(6a1)
Loading…
↗
31
67F8258800
Plate
Loading…
↗
32
9709506012
Bolt(gh1)
Loading…
↗
34
9046513M11
Clamp (6e5)
Loading…
↗
35
67F8191601
Go to P/N ) PE0-OM-060003
Cover, terminal
Loading…
↗
36
9015906M29
Screw, with washer
Loading…
↗
37
67F8362600
Mark. 6
Loading…
↗
38
67F8191900
Graphic, regulator
Loading…
↗
?
1424
Wire Harness assembly
Loading…
↗
?
1435
Cover, Terminal
Loading…
↗
?
1439
Clamp
Loading…
↗
