F9.9HWH1 (2018)
ELECTRICAL 2

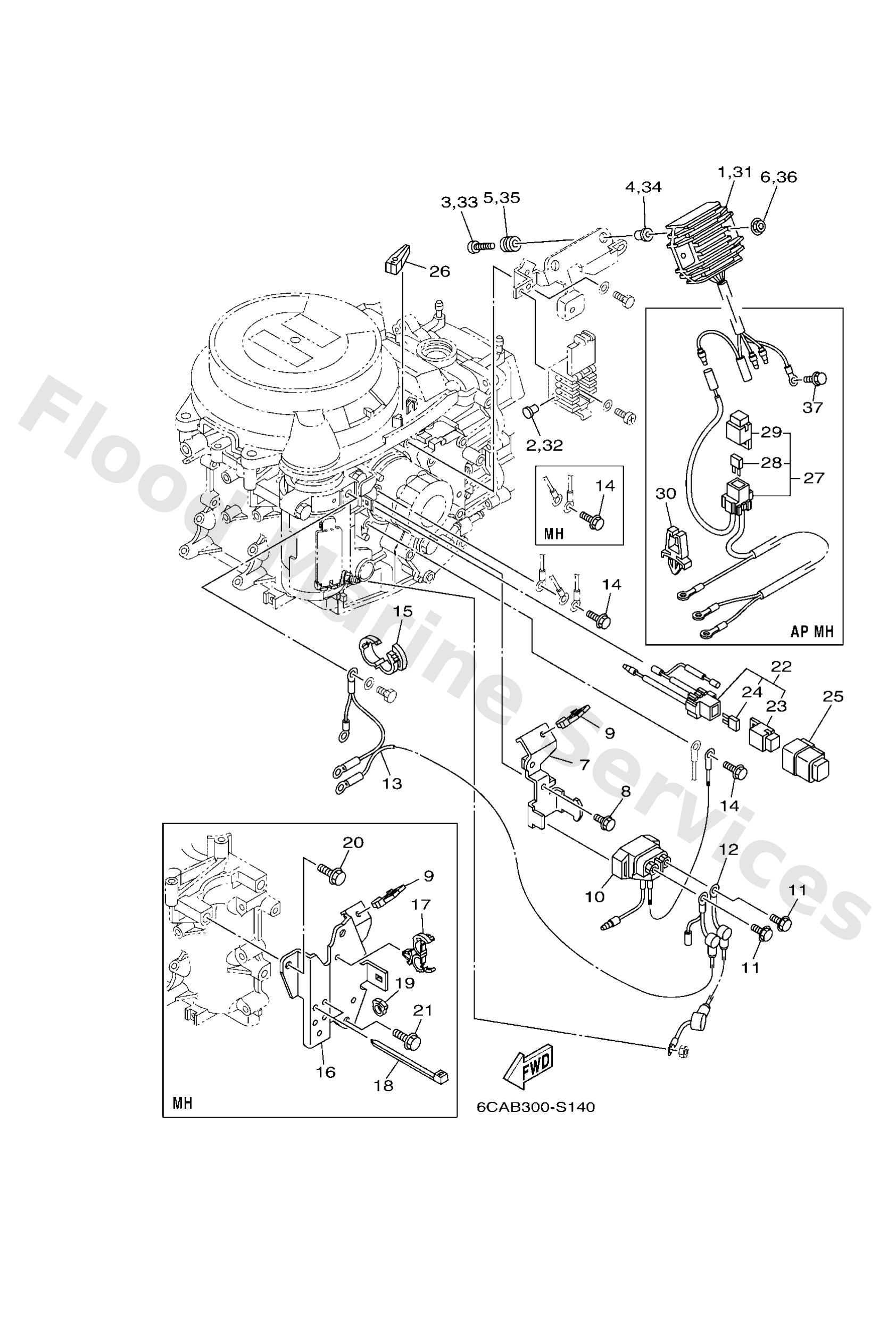

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
31
6AH8196000
AP
Rectifier & regulator assembly
Loading…
↗
32
7038211900
AP
Cover, lead wire
Loading…
↗
33
9898006030
AP
Screw, bind(j39)
Loading…
↗
34
9038706M70
AP
Collar (6h5)
Loading…
↗
35
9048013M24
AP
Grommet (6e9)
Loading…
↗
36
9578006500
AP
Nut, flange(7nb)
Loading…
↗
7
6AH8194500
Plate, switch fitting
Loading…
↗
37
9759506514
AP
Bolt(gj3)
Loading…
↗
9
9046408004
Clamp
Loading…
↗
10
68T8194000
Starter relay assembly
Loading…
↗
11
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
12
6AH8211700
Wire, lead
Loading…
↗
13
6AH8210501
Battery cable
Loading…
↗
15
9046416001
Clamp
Loading…
↗
16
6AH8239800
Plate 3
Loading…
↗
17
9046418246
Clamp(4tr)
Loading…
↗
18
9046513M18
Clamp
Loading…
↗
19
9046409010
Clamp
Loading…
↗
20
9759508525
Bolt, hexagon deep recess
Loading…
↗
21
9759508516
Bolt, hexagon w/w deep recess
Loading…
↗
22
6AH8215000
Fuse holder assembly
Loading…
↗
23
67F8215B10
Cap (yellow)
Loading…
↗
24
67F8215100
Fuse
Loading…
↗
25
6AH8215700
Damper
Loading…
↗
26
67F2812A00
Puller, fuse
Loading…
↗
27
6AH8194900
AP
Wire, lead
Loading…
↗
29
67F8215B00
Cap (black)
Loading…
↗
30
9046406001
AP
Clamp
Loading…
↗
