FL115AET (2004)
ELECTRICAL 2

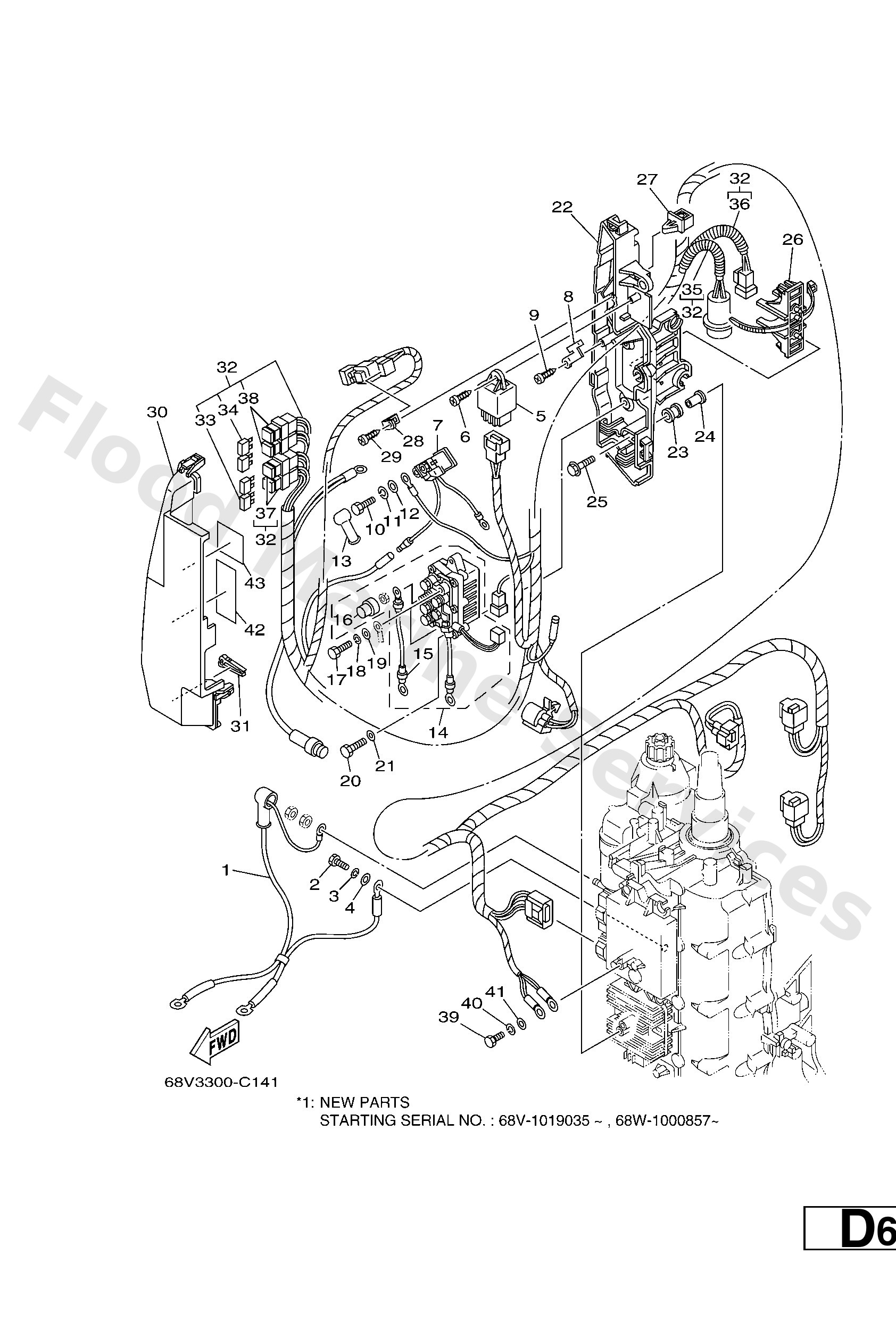

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
68V8210500
Battery cable
Loading…
↗
2
9701306020
Bolt(62y)
Loading…
↗
3
9290306100
Washer(6a1)
Loading…
↗
4
9290306600
Washer, plain (646)
Loading…
↗
5
68V8195000
Relay assembly
Loading…
↗
6
9778060625
Screw, tapping(65j)
Loading…
↗
7
68V8194A00
Relay
Loading…
↗
8
68V8195300
Stay, relay
Loading…
↗
9
9778060620
Screw, tapping(6k8)
Loading…
↗
10
9709506010
Bolt
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6G58211900
Cover, lead wire
Loading…
↗
14
68V8195B01
Relay assembly
Loading…
↗
15
68V8194900
Wire, lead
Loading…
↗
16
68V8253200
Cap
Loading…
↗
22
68V8194801
NEW PARTS *1
Bracket
Loading…
↗
22
68V8194800
Bracket
Loading…
↗
23
6A08231700
Damper, ignition coil
Loading…
↗
24
6244254200
Collar
Loading…
↗
25
9011906M59
Bolt, with washer
Loading…
↗
26
68V8259400
Clamp
Loading…
↗
27
9046412M58
Clamp
Loading…
↗
28
68V8554800
Holder
Loading…
↗
30
68V8194200
Cover
Loading…
↗
30
68V8194201
NEW PARTS *1
Cover
Loading…
↗
31
67F2812A00
Puller, fuse
Loading…
↗
32
68V8259010
-
Loading…
↗
33
67F8215100
Fuse
Loading…
↗
34
67F8215110
Fuse
Loading…
↗
35
9044710003
Hose, with spring
Loading…
↗
36
9044707007
Hose, with spring
Loading…
↗
37
67F8215B10
Cap (yellow)
Loading…
↗
38
67F8215B20
Cap (green)
Loading…
↗
39
9709506020
Bolt(7u8)
Loading…
↗
42
68V8191900
Graphic, regulator
Loading…
↗
43
68V8191910
Graphic, regulator
Loading…
↗
