FL115AET (2010)
ELECTRICAL 2

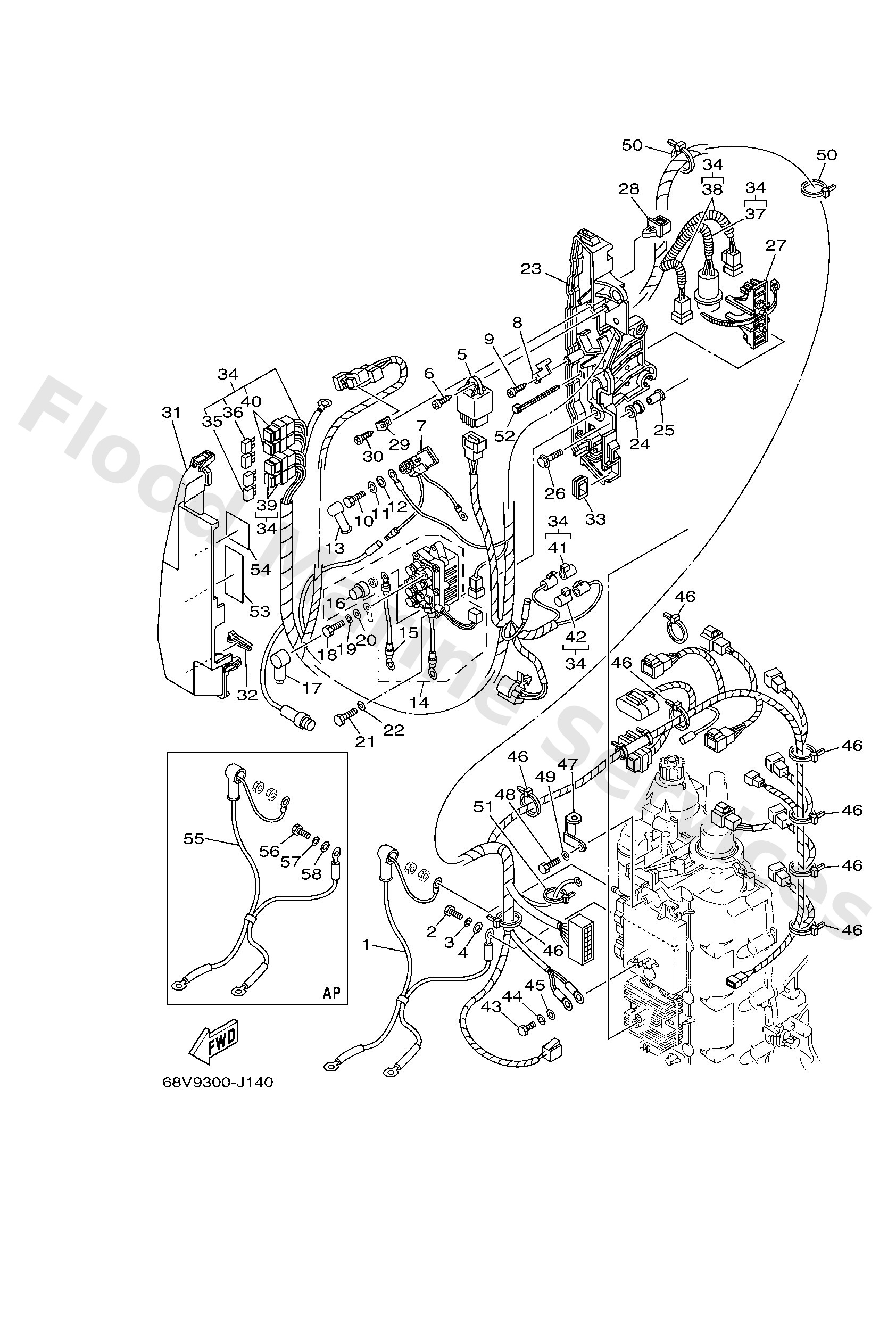

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
68V8210500
FOR EUR,RUS
Battery cable
Loading…
↗
2
9701306020
FOR EUR,RUS
Bolt(62y)
Loading…
↗
3
9290306100
FOR EUR,RUS
Washer(6a1)
Loading…
↗
4
9290306600
FOR EUR,RUS
Washer, plain (646)
Loading…
↗
5
68V8195000
Relay assembly
Loading…
↗
6
9778060625
Screw, tapping(65j)
Loading…
↗
7
68V8194A00
Relay
Loading…
↗
8
68V8195300
Stay, relay
Loading…
↗
9
9778060620
Screw, tapping(6k8)
Loading…
↗
10
9709506010
Bolt
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6G58211900
Cover, lead wire
Loading…
↗
14
68V8195B01
Relay assembly
Loading…
↗
15
68V8194900
Wire, lead
Loading…
↗
16
68V8253200
Cap
Loading…
↗
17
6828211901
Cover, lead wire
Loading…
↗
23
68V8194802
Bracket
Loading…
↗
24
6A08231700
Damper, ignition coil
Loading…
↗
25
9038706119
Collar
Loading…
↗
26
9011906M59
Bolt, with washer
Loading…
↗
27
68V8259400
Clamp
Loading…
↗
28
9046412M58
Clamp
Loading…
↗
29
68V8554800
Holder
Loading…
↗
31
68V8194203
Cover
Loading…
↗
32
67F2812A00
Puller, fuse
Loading…
↗
33
6D88151800
Grommet
Loading…
↗
34
68V8259050
Wire harness assembly
Loading…
↗
35
67F8215100
Fuse
Loading…
↗
36
67F8215110
Fuse
Loading…
↗
37
9044710003
Hose, with spring
Loading…
↗
38
9044707007
Hose, with spring
Loading…
↗
39
67F8215B10
Cap (yellow)
Loading…
↗
40
67F8215B20
Cap (green)
Loading…
↗
41
6P28258200
Cap 1 (female)
Loading…
↗
42
6P28258210
Cap 1 (male)
Loading…
↗
43
9709506016
Bolt, hexagon deep recess
Loading…
↗
46
9046513M18
Clamp
Loading…
↗
47
6D88258100
Stay, cord clamp
Loading…
↗
48
9709506014
Bolt(gj3)
Loading…
↗
50
9046511M52
Clamp(6e7)
Loading…
↗
53
68V8191900
Graphic, regulator
Loading…
↗
54
68V8191910
Graphic, regulator
Loading…
↗
