FL150AET (2011)
ELECTRICAL 2

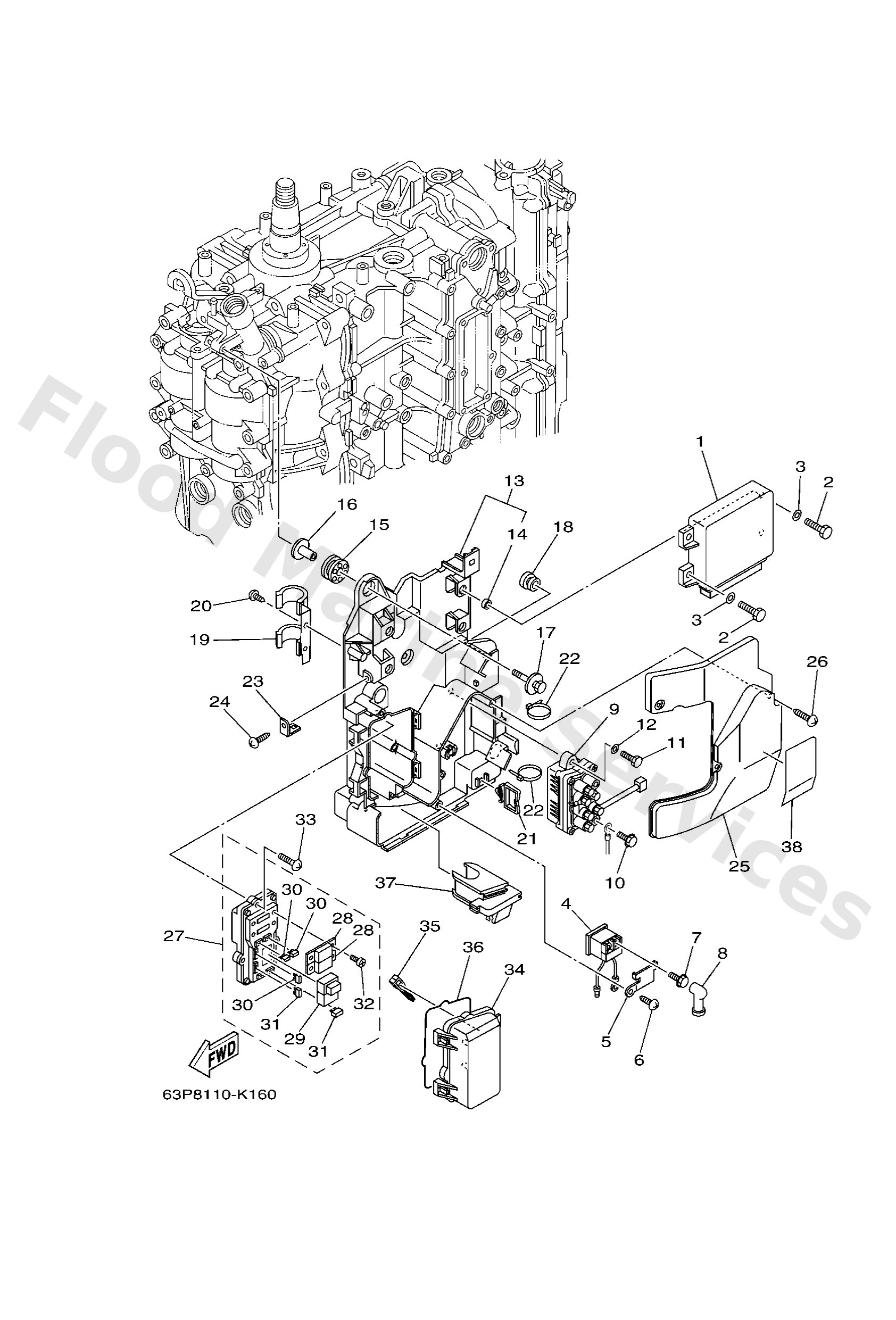

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
63P8591A62
63P)1097228～, 64P)1012438～
Engine control unit assembly
Loading…
↗
1
63P8591A61
63P)～1097227, 64P)～1012437
Engine control unit assembly
Loading…
↗
2
9709506016
Bolt, hexagon deep recess
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
68V8194A00
Relay
Loading…
↗
5
68V8195300
Stay, relay
Loading…
↗
6
9778060620
Screw, tapping(6k8)
Loading…
↗
7
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
8
6G58211900
Cover, lead wire
Loading…
↗
9
63P8195000
Relay assembly
Loading…
↗
11
9701306020
Bolt(62y)
Loading…
↗
12
9290306600
Washer, plain (646)
Loading…
↗
13
63P8194800
Bracket
Loading…
↗
14
9038706010
Collar
Loading…
↗
15
68F8551601
Spacer
Loading…
↗
16
9038706176
Collar
Loading…
↗
17
68F8511900
Bolt
Loading…
↗
18
9048010627
Grommet
Loading…
↗
19
63P8259400
Clamp
Loading…
↗
21
9046423199
Clamp(4hm)
Loading…
↗
22
9046513M18
Clamp
Loading…
↗
23
68V8554800
Holder
Loading…
↗
25
63P8194200
Cover
Loading…
↗
26
9016905M00
Screw truss head tapping
Loading…
↗
27
63P8217000
Fuse box assembly
Loading…
↗
28
63P8215100
Fuse (50a)
Loading…
↗
29
68F8195A00
Relay assembly
Loading…
↗
30
67F8215100
Fuse
Loading…
↗
31
67F8215110
Fuse
Loading…
↗
32
68F8284600
Screw, pan head (m5)
Loading…
↗
33
9778050620
Screw, tapping
Loading…
↗
34
60V8554400
Case
Loading…
↗
35
67F2812A00
Puller, fuse
Loading…
↗
36
68F8217600
Damper
Loading…
↗
37
63P8133600
Grommet
Loading…
↗
38
63P8191900
Graphic, regulator
Loading…
↗
