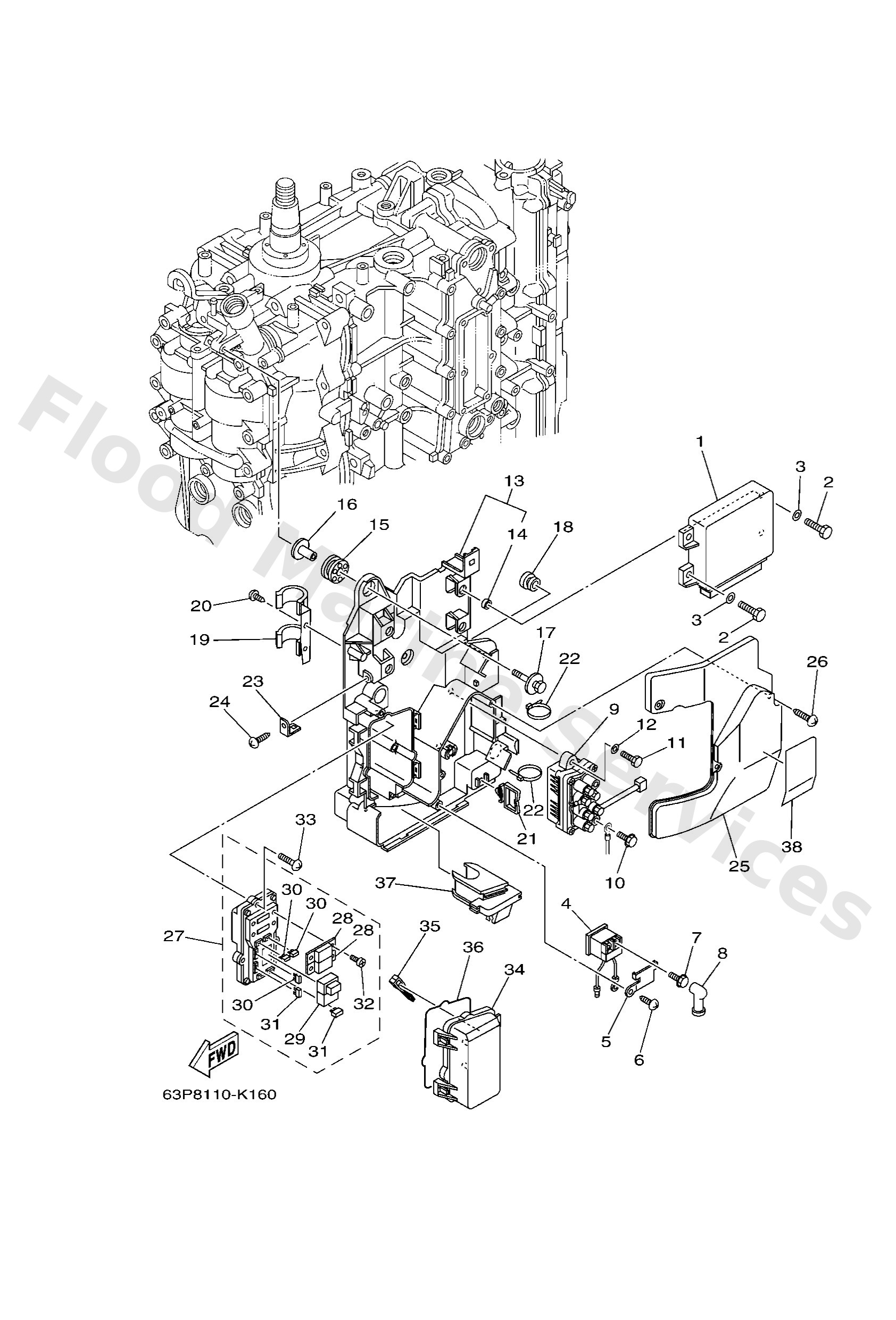

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
63P8591A63
Engine control unit assembly
Loading…

↗
2
9709506016
Bolt, hexagon deep recess
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
68V8194A00
Relay
Loading…

↗
5
68V8195300
Stay, relay
Loading…

↗
6
9778060620
Screw, tapping(6k8)
Loading…

↗
7
9759506610
Bolt, hexagon w/w deep recess
Loading…

↗
8
6G58211900
Cover, lead wire
Loading…

↗
9
63P8195000
Relay assembly
Loading…

↗
11
9701306020
Bolt(62y)
Loading…

↗
12
9290306600
Washer, plain (646)
Loading…

↗
13
63P8194800
Bracket
Loading…

↗
14
9038706010
Collar
Loading…

↗
15
68F8551601
Spacer
Loading…

↗
16
9038706176
Collar
Loading…

↗
17
68F8511900
Bolt
Loading…

↗
18
9048010627
Grommet
Loading…

↗
19
63P8259400
Clamp
Loading…

↗
21
9046423199
Clamp(4hm)
Loading…

↗
22
9046513M18
Clamp
Loading…

↗
23
68V8554800
Holder
Loading…

↗
25
63P8194200
Cover
Loading…

↗
26
9016905M00
Screw truss head tapping
Loading…

↗
27
63P8217000
Fuse box assembly
Loading…

↗
28
63P8215100
Fuse (50a)
Loading…

↗
29
68F8195A00
Relay assembly
Loading…

↗
30
67F8215100
Fuse
Loading…

↗
31
67F8215110
Fuse
Loading…

↗
32
68F8284600
Screw, pan head (m5)
Loading…

↗
33
9778050620
Screw, tapping
Loading…

↗
34
60V8554400
Case
Loading…

↗
35
67F2812A00
Puller, fuse
Loading…

↗
36
68F8217600
Damper
Loading…

↗
37
63P8133600
Grommet
Loading…

↗
38
63P8191900
Graphic, regulator
Loading…

↗
