FL225BET (2011)
ELECTRICAL 2

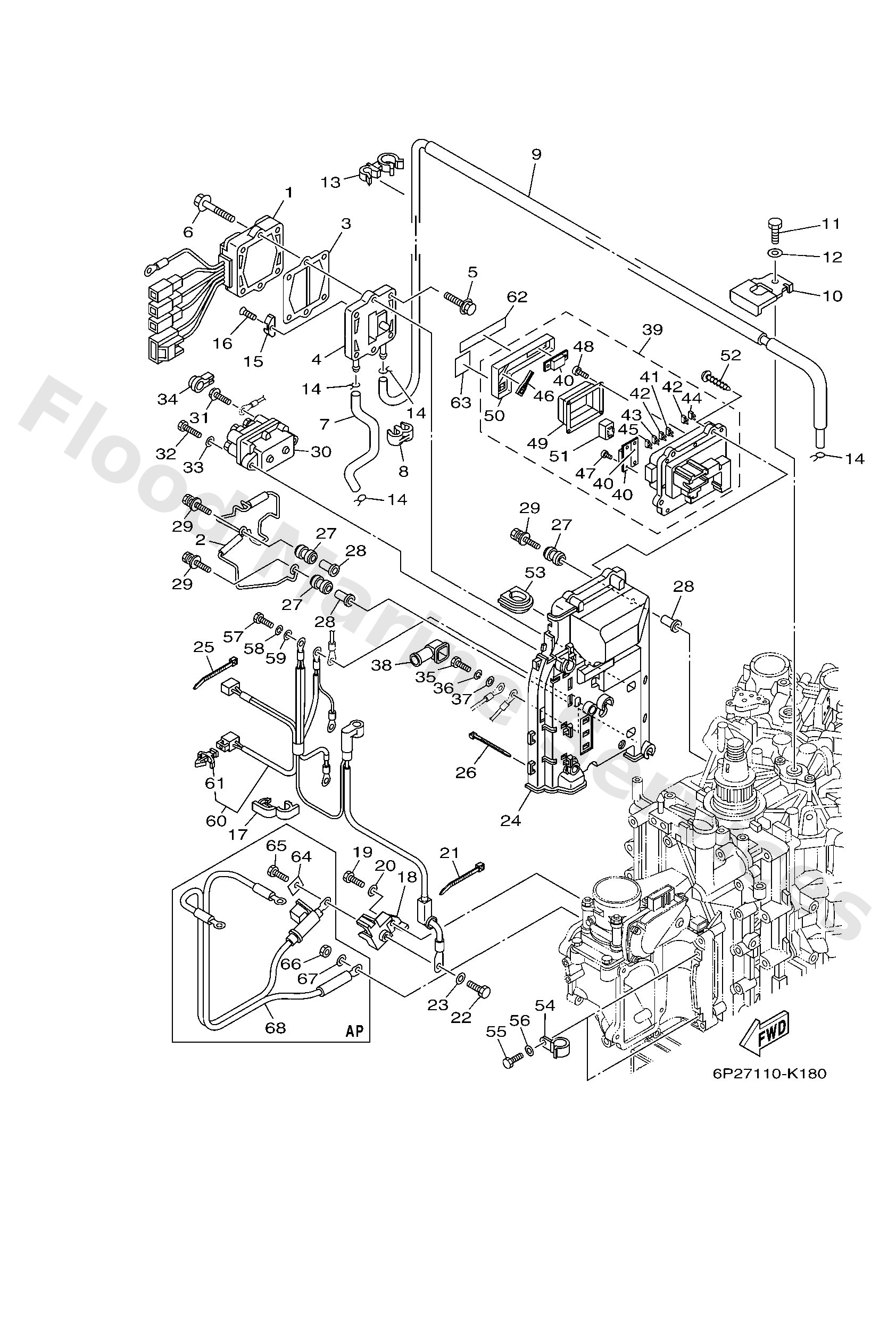

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6P28196002
Rectifier & regulator assembly
Loading…
↗
2
6P28161400
Protector
Loading…
↗
3
60V81975A0
Plate, rectifier fitting
Loading…
↗
4
6P281972009S
Cover, rectifier
Loading…
↗
5
9011906MA3
Bolt, with washer
Loading…
↗
6
9011906MA5
Bolt, with washer
Loading…
↗
7
9044509304
Hose (l1500)
Loading…
↗
8
9046409M21
Clamp(6j8)
Loading…
↗
9
6P21248100
Pipe 1
Loading…
↗
10
6P21249100
Clamp 1
Loading…
↗
11
9709506012
Bolt(gh1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9046421002
Clamp
Loading…
↗
14
9046708M18
Clip
Loading…
↗
15
6E51132500
Anode
Loading…
↗
16
9878004015
Screw, flat head(ga5)
Loading…
↗
17
9046418004
Clamp
Loading…
↗
18
6P28192501
Terminal
Loading…
↗
19
9709508020
Bolt, hexagon
Loading…
↗
20
9299508600
Washer, plain (663)
Loading…
↗
21
9046513M18
Clamp
Loading…
↗
65
9709508016
AP
Bolt, hexagon deep recess
Loading…
↗
24
6P28194800
Bracket
Loading…
↗
26
9046514M66
Clamp
Loading…
↗
27
6A08231700
Damper, ignition coil
Loading…
↗
28
9038706119
Collar
Loading…
↗
29
9011906M95
Bolt, with washer
Loading…
↗
30
63P8195000
Relay assembly
Loading…
↗
31
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
32
9701306025
Bolt(62y)
Loading…
↗
33
9290306600
Washer, plain (646)
Loading…
↗
34
6P28183X00
Cap, terminal
Loading…
↗
35
9709506020
Bolt(7u8)
Loading…
↗
36
9299506100
Washer(6a1)
Loading…
↗
38
6P28211900
Cover, lead wire
Loading…
↗
39
6P28217001
Fuse box assembly
Loading…
↗
40
6P28215100
Fuse (60a)
Loading…
↗
41
67F8215100
Fuse
Loading…
↗
42
67F8215110
Fuse
Loading…
↗
43
67F8215120
Fuse (5a)
Loading…
↗
44
67F8215140
Fuse (10a)
Loading…
↗
45
67F8215150
Fuse (15a)
Loading…
↗
46
67F2812A00
Puller, fuse
Loading…
↗
47
68F8284600
Screw, pan head (m5)
Loading…
↗
48
6P28211300
Screw (m3)
Loading…
↗
49
6P28163900
Cover
Loading…
↗
50
6P28554400
Case
Loading…
↗
51
68F8195A00
Relay assembly
Loading…
↗
52
9778050620
Screw, tapping
Loading…
↗
53
6P28133600
Grommet
Loading…
↗
54
9046208026
Clamp
Loading…
↗
55
9709506016
Bolt, hexagon deep recess
Loading…
↗
60
6P28259M00
Wire harness assembly 2
Loading…
↗
61
9046409M47
Clamp(65j)
Loading…
↗
62
6P28191920
-
Loading…
↗
63
6P28191931
Graphic, regulator
Loading…
↗
64
6P28192300
AP
Washer
Loading…
↗
66
9533308600
AP
Nut(6l2)
Loading…
↗
67
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
68
6P28210501
AP
Wire harness
Loading…
↗
