FL225BET (2016)
ELECTRICAL 2

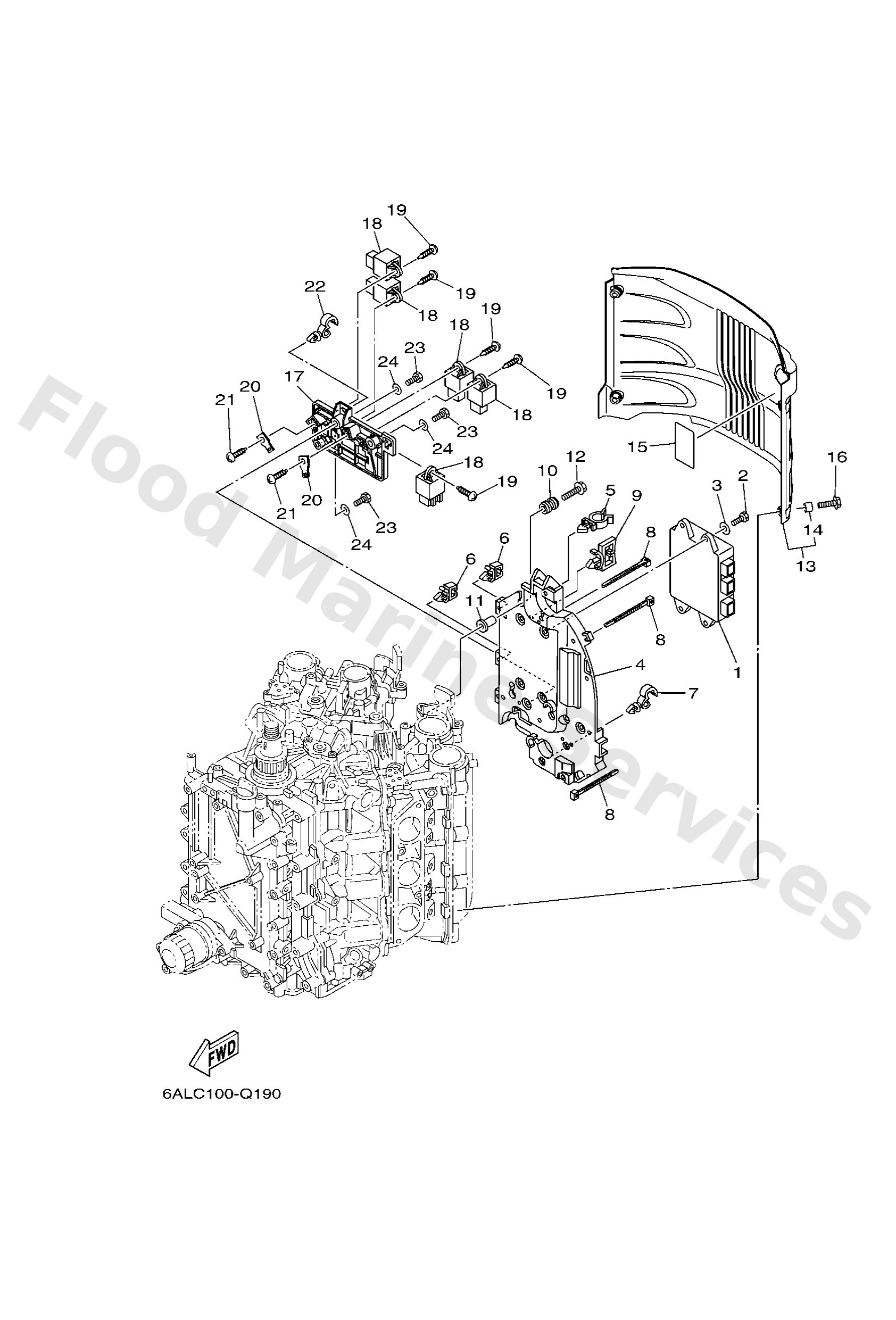

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6AS8591A14
Engine control unit assembly
Loading…
↗
1
6AL8591A14
Engine control unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6P28231600
Bracket, ignition coil
Loading…
↗
5
9046419M45
Clamp(65j)
Loading…
↗
6
9046411121
Clamp(4gy)
Loading…
↗
7
9046413249
Clamp
Loading…
↗
8
9046514M66
Clamp
Loading…
↗
9
9046423199
Clamp(4hm)
Loading…
↗
10
6A08231700
Damper, ignition coil
Loading…
↗
11
9038706119
Collar
Loading…
↗
12
9011906M59
Bolt, with washer
Loading…
↗
13
6P28231410
Cover, ignition coil
Loading…
↗
14
9038706044
Collar
Loading…
↗
15
6P24273500
Protector
Loading…
↗
16
9011906M92
Bolt, with washer
Loading…
↗
17
6P28195200
Holder, relay
Loading…
↗
18
68V8195000
Relay assembly
Loading…
↗
19
9778060620
Screw, tapping(6k8)
Loading…
↗
20
6P28363500
Bracket
Loading…
↗
