FL350AET (2008)
ELECTRICAL 2

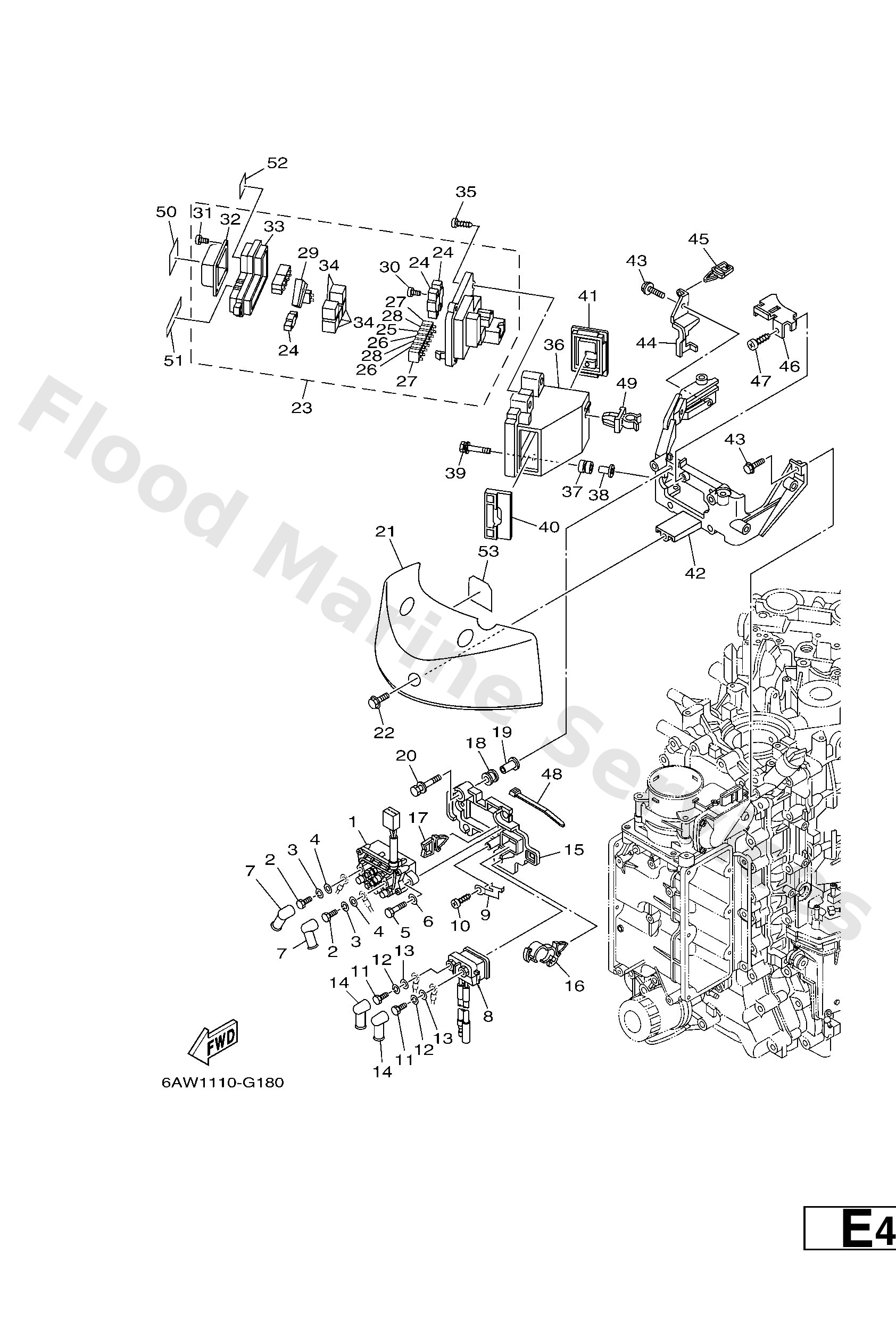

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6AW8195000
Relay assembly
Loading…
↗
2
9709506010
Bolt
Loading…
↗
3
9299506100
Washer(6a1)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9701306020
Bolt(62y)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
6G58211910
Cover, lead wire
Loading…
↗
8
6AW8194A00
Relay
Loading…
↗
9
68V8195300
Stay, relay
Loading…
↗
10
9778060620
Screw, tapping(6k8)
Loading…
↗
14
6G58211900
Cover, lead wire
Loading…
↗
15
6AW8195200
Holder, relay
Loading…
↗
16
9046412183
Clamp(jn2)
Loading…
↗
17
9046411121
Clamp(4gy)
Loading…
↗
18
6A08231700
Damper, ignition coil
Loading…
↗
19
9038706119
Collar
Loading…
↗
20
9011906M59
Bolt, with washer
Loading…
↗
21
6AW8194200
Cover
Loading…
↗
22
9589506016
Bolt, flange deep recess
Loading…
↗
23
6AW8217001
Go to P/N)PE0-OM-070033
Fuse box assembly
Loading…
↗
24
6P28215100
Go to P/N)PE0-OM-070033
Fuse (60a)
Loading…
↗
25
67F8215100
Fuse
Loading…
↗
26
67F8215110
Fuse
Loading…
↗
27
67F8215140
Fuse (10a)
Loading…
↗
28
67F8215150
Fuse (15a)
Loading…
↗
29
67F2812A00
Puller, fuse
Loading…
↗
30
68F8284600
Screw, pan head (m5)
Loading…
↗
31
6P28211300
Screw (m3)
Loading…
↗
32
6P28163900
Cover
Loading…
↗
33
6P28554400
Case
Loading…
↗
34
68F8195A00
Relay assembly
Loading…
↗
35
9778050620
Screw, tapping
Loading…
↗
36
6AW8217100
Stay, fuse box
Loading…
↗
40
6AW8257200
Grommet 1
Loading…
↗
41
6AW8257300
Grommet 2
Loading…
↗
42
6AW8194800
Bracket
Loading…
↗
43
9589506020
Bolt, flange(jk3)
Loading…
↗
44
6AW8167800
Clamp 2
Loading…
↗
46
6AW8144300
Clamp, lead 1
Loading…
↗
47
9778050514
Screw, panhead tapping (682)
Loading…
↗
48
9046511M10
Clamp
Loading…
↗
49
9046409008
Clamp
Loading…
↗
50
6AW8191910
Graphic, Regulator
Loading…
↗
51
6AW8191920
Graphic, regulator
Loading…
↗
52
6AW8191931
Go to P/N)PE0-OM-070033
Graphic, regulator
Loading…
↗
53
6AW8191900
Graphic, Regulator
Loading…
↗
