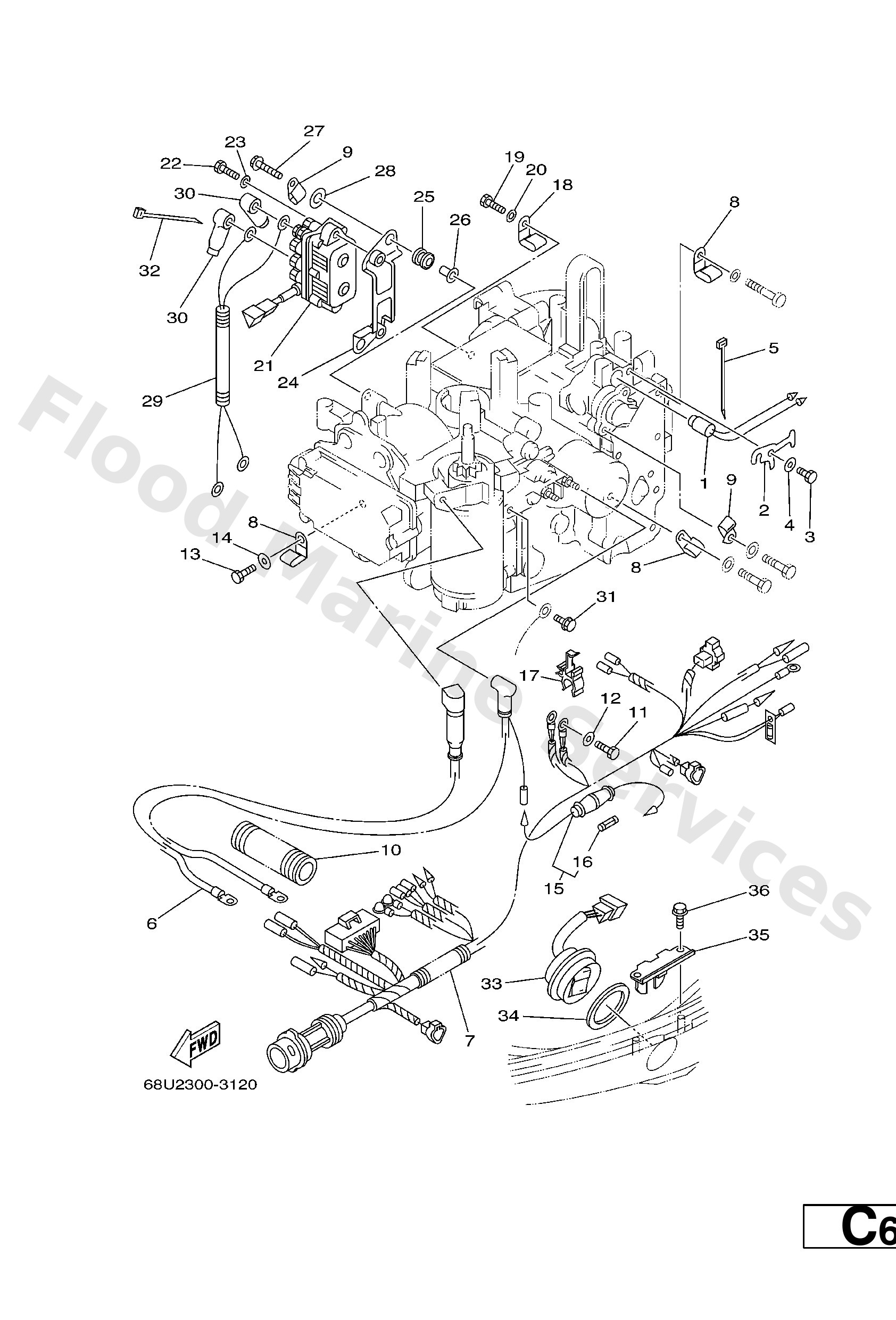

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
65W−85790−00
Thermosensor assembly
Loading…

↗
2
65W−85757−00
Retainer
Loading…

↗
3
97095−06012
Bolt(gh1)
Loading…

↗
4
92995−06600
Washer, plain (646)
Loading…

↗
5
90465−11M10
Clamp
Loading…

↗
6
65W−82105−00
Battery cable
Loading…

↗
7
65W−82590−30
Wire Harness assembly
Loading…

↗
8
90465−08M08
Clamp (6e5)
Loading…

↗
9
90465−06M88
Clamp
Loading…

↗
10
6N7−83557−00 I.DIA.) 22MM
Tube
Loading…

↗
11
97095−06016
Bolt, hexagon deep recess
Loading…

↗
13
97095−05016
Bolt(6a1)
Loading…

↗
14
92995−05600
Washer, plain (646)
Loading…

↗
15
6G8−82150−00
Fuse holder assembly
Loading…

↗
16
663−82151−00
Fuse
Loading…

↗
17
6G5−82152−00
Holder, fuse
Loading…

↗
21
61A−81950−00
Relay assembly
Loading…

↗
22
97075−06020
Bolt(7u8)
Loading…

↗
24
65W−81948−00
Bracket
Loading…

↗
25
6A0−82317−00
Damper, ignition coil
Loading…

↗
26
624−42542−00
Collar
Loading…

↗
27
95895−06030
Bolt, flange deep recess
Loading…

↗
28
90201−12M16
Washer, plate (679)
Loading…

↗
29
65W−81949−00
Wire, Lead
Loading…

↗
30
682−82119−01
Cover, lead wire
Loading…

↗
31
97575−06516
Bolt, hexagon w/w deep recess
Loading…

↗
33
6H1−82563−10
Trim & tilt switch assembly
Loading…

↗
34
6E5−82587−00
Gasket
Loading…

↗
35
62Y−83614−00
Bracket
Loading…

↗
36
90109−06M86
Bolt
Loading…

↗
