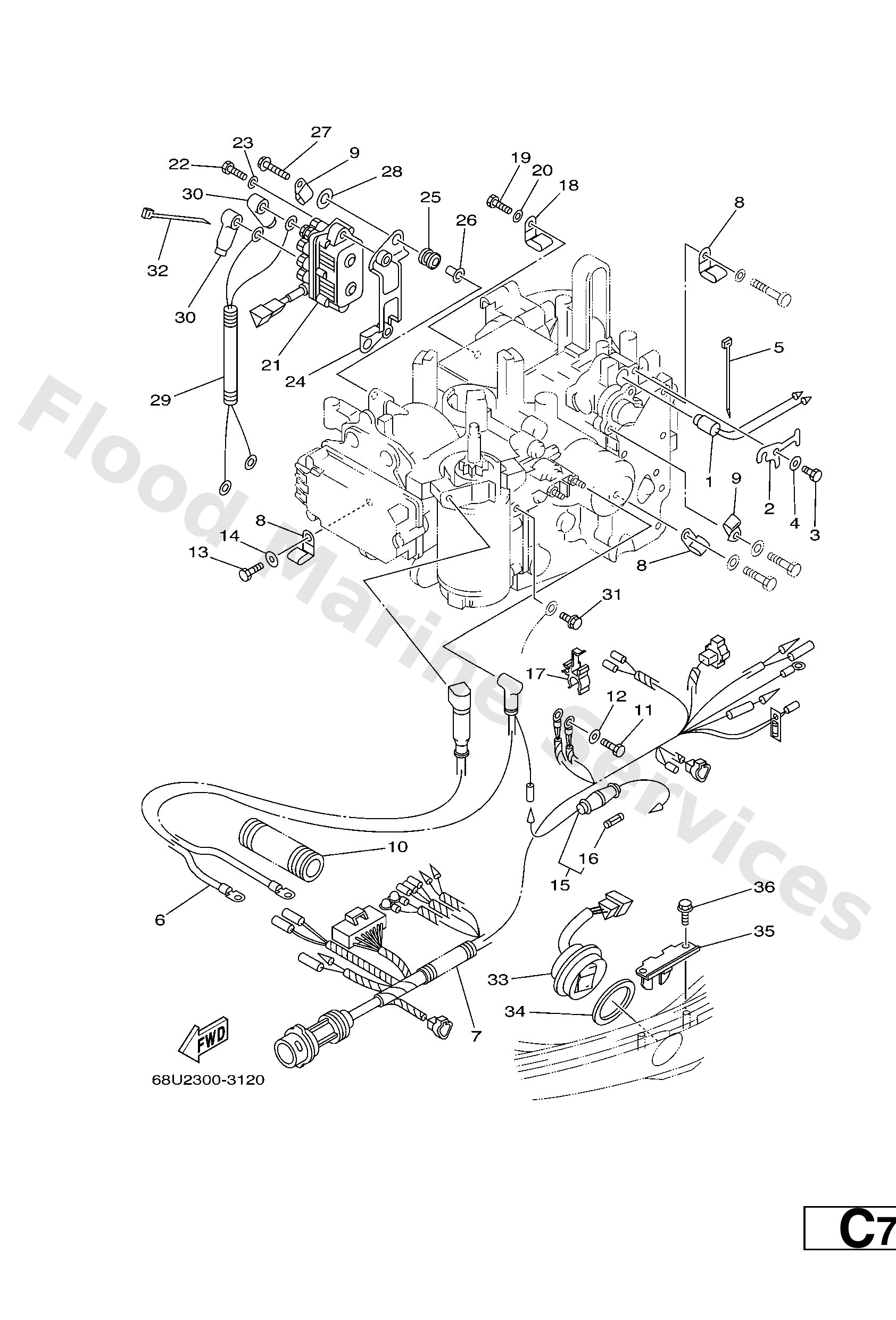

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
65W8579000
Thermosensor assembly
Loading…

↗
2
65W8575700
Retainer
Loading…

↗
3
9709506012
Bolt(gh1)
Loading…

↗
4
9299506600
Washer, plain (646)
Loading…

↗
5
9046511M10
Clamp
Loading…

↗
6
65W8210500
Battery cable
Loading…

↗
7
65W8259030
Wire Harness assembly (10P)
Loading…

↗
8
9046508M08
Clamp (6e5)
Loading…

↗
9
9046506M88
Clamp
Loading…

↗
10
6N78355700
Tube
Loading…

↗
11
9709506016
Bolt, hexagon deep recess
Loading…

↗
13
9709505016
Bolt(6a1)
Loading…

↗
14
9299505600
Washer, plain (646)
Loading…

↗
15
6G88215000
Fuse holder assembly
Loading…

↗
16
6638215100
Fuse
Loading…

↗
17
6G58215200
Holder, fuse
Loading…

↗
21
61A8195000
Relay assembly
Loading…

↗
22
9707506020
Bolt(7u8)
Loading…

↗
24
65W8194800
Bracket
Loading…

↗
25
6A08231700
Damper, ignition coil
Loading…

↗
26
6244254200
Collar
Loading…

↗
27
9589506030
Bolt, flange deep recess
Loading…

↗
28
9020112M16
Washer, plate (679)
Loading…

↗
29
65W8194900
Wire, Lead
Loading…

↗
30
6828211901
Cover, lead wire
Loading…

↗
31
9757506516
Bolt, hexagon w/w deep recess
Loading…

↗
33
6H18256310
Trim & tilt switch assembly
Loading…

↗
34
6E58258700
Gasket
Loading…

↗
35
62Y8361400
Bracket
Loading…

↗
36
9010906M86
Bolt
Loading…

↗
