FT25FET (2018)
ELECTRICAL 2

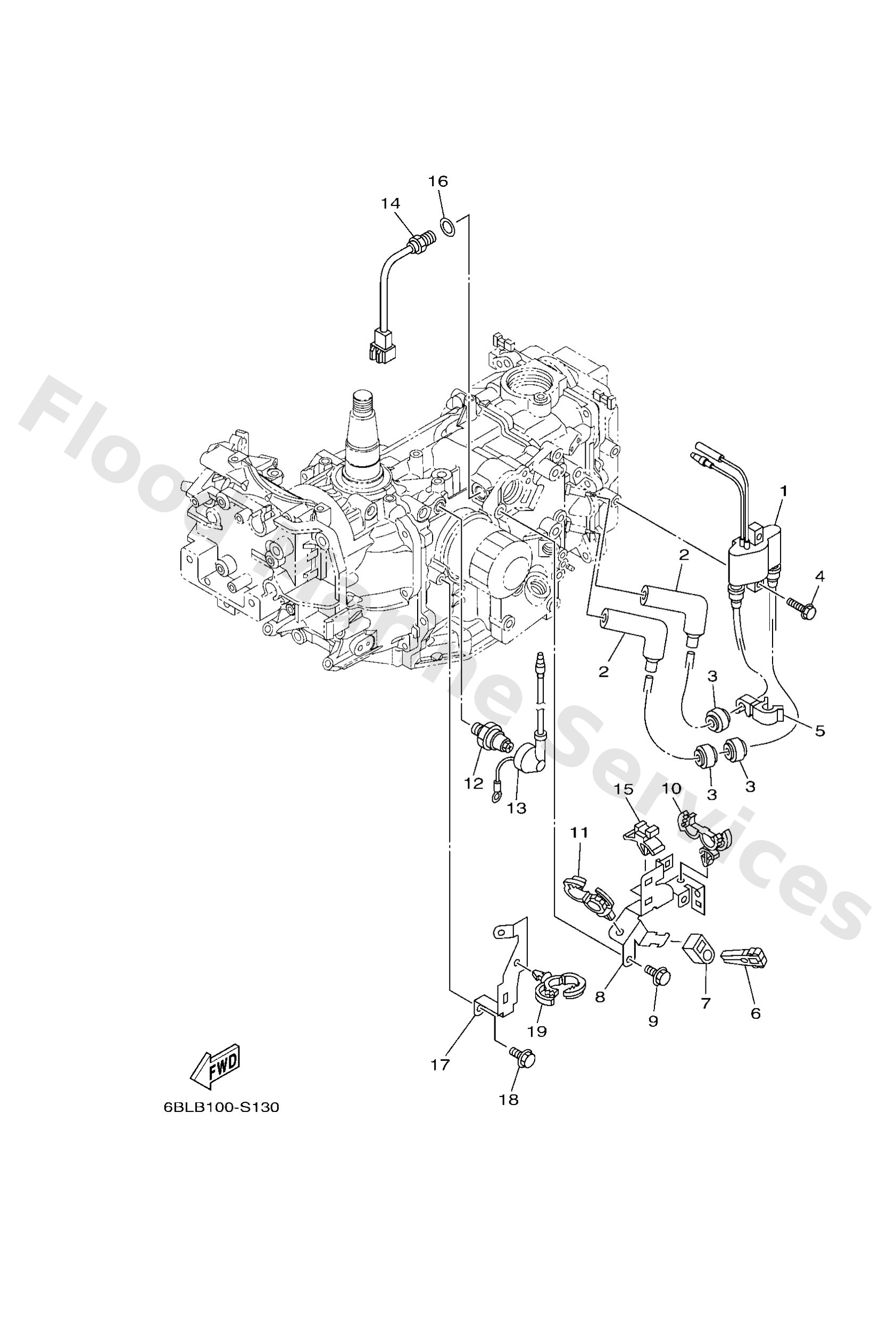

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6F58557013
Ignition coil assembly
Loading…
↗
2
6AH8237000
Plug cap assembly
Loading…
↗
3
9048025003
Grommet
Loading…
↗
4
9759506525
Bolt, hexagon w/w deep recess
Loading…
↗
5
9046409018
Clamp
Loading…
↗
6
67F2812A00
Puller, fuse
Loading…
↗
7
67C8215500
Band
Loading…
↗
8
6BL8339X00
Clamp, cord
Loading…
↗
9
9759506516
Bolt, with washer(6r6)
Loading…
↗
10
9046418246
Clamp(4tr)
Loading…
↗
11
9046420181
Clamp(4ap)
Loading…
↗
12
64J8250400
Oil pressure switch assembly
Loading…
↗
13
68V8131500
Lead wire assembly
Loading…
↗
14
6CJ8579000
Thermosensor assembly
Loading…
↗
15
9046409M47
Clamp(65j)
Loading…
↗
16
9043014115
Gasket (663)
Loading…
↗
17
6BL8238900
Plate 2
Loading…
↗
