Yamaha Outboard Parts - ELECTRICAL 2 - FT25FET (2019) | Flood Marine

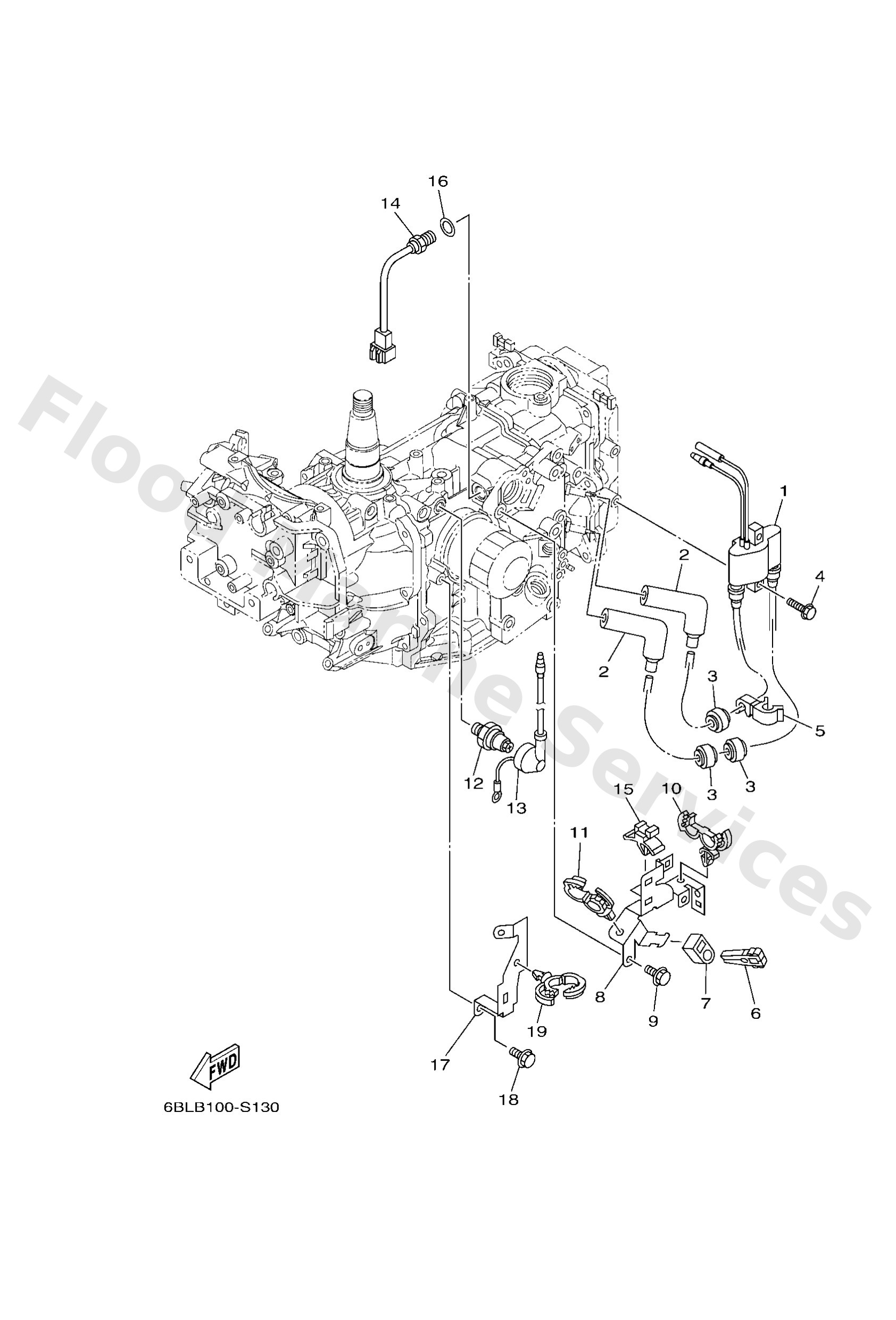

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
6F58557013
Ignition coil assembly
Loading…

↗
2
6AH8237000
Plug cap assembly
Loading…

↗
3
9048025003
Grommet
Loading…

↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…

↗
5
9046409018
Clamp
Loading…

↗
6
67F2812A00
Puller, fuse
Loading…

↗
7
67C8215500
Band
Loading…

↗
8
6BL8339X00
Clamp, cord
Loading…

↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
10
9046418246
Clamp(4tr)
Loading…

↗
11
9046420181
Clamp(4ap)
Loading…

↗
12
64J8250400
Oil pressure switch assembly
Loading…

↗
13
68V8131500
Lead wire assembly
Loading…

↗
14
6CJ8579000
Thermosensor assembly
Loading…

↗
15
9046409M47
Clamp(65j)
Loading…

↗
16
9043014115
Gasket (663)
Loading…

↗
17
6BL8238900
Plate 2
Loading…

↗
