FT50CEHD (2003)
ELECTRICAL 2

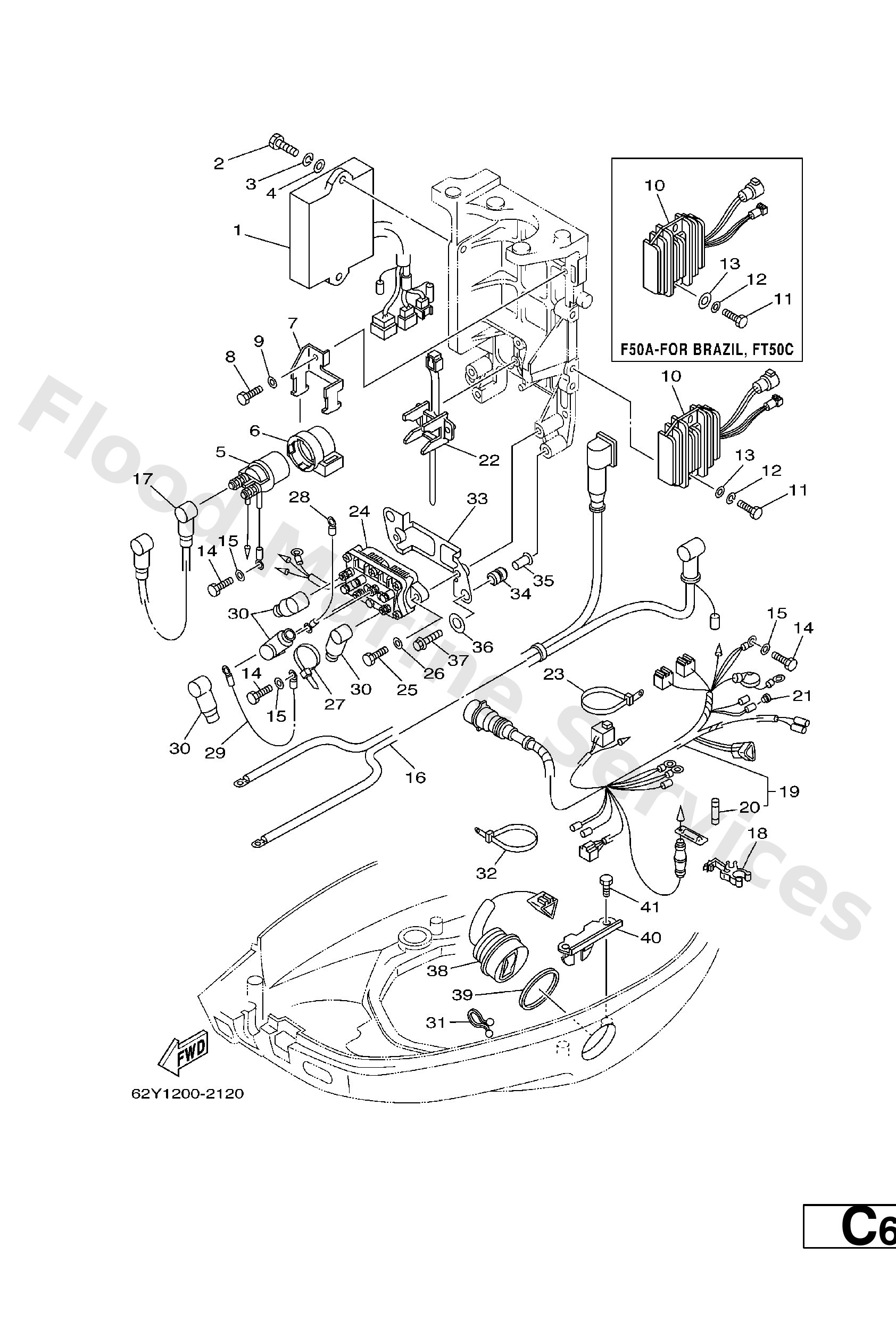

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
64J−85540−11
FT50C
C.d.i. unit assembly
Loading…
↗
1
64J−85540−01
F50A
C.d.i. unit assembly
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06100
Washer(6a1)
Loading…
↗
12
92995−06600
F50A−FOR BRAZIL,
Washer, plain (646)
Loading…
↗
5
6G1−81941−10
Starter relay
Loading…
↗
6
6G1−81952−00
Holder, relay
Loading…
↗
7
6L2−81945−00
Plate, switch fitting
Loading…
↗
8
97095−06014
Bolt(gj3)
Loading…
↗
10
64J−81960−00
Rectifier & regulator assembly
Loading…
↗
10
64J−81960−10
FOR CARIB
Rectifier & regulator assembly
Loading…
↗
11
97095−06040
F50A−FOR BRAZIL,
Bolt (682)
Loading…
↗
11
97095−06025
Bolt
Loading…
↗
13
90201−06M05
F50A−FOR BRAZIL,
Washer, plate(6e3)
Loading…
↗
14
97095−06012
Bolt(gh1)
Loading…
↗
16
62Y−82105−00
Battery cable
Loading…
↗
17
6E5−82117−01
Wire, lead
Loading…
↗
18
6G5−82152−00
Holder, fuse
Loading…
↗
19
64J−82590−30
Wire Harness assembly
Loading…
↗
19
64J−82590−20
Wire harness assembly
Loading…
↗
20
663−82151−00
Fuse
Loading…
↗
21
703−82119−00
EXCEPT FOR BRAZIL
Cover, lead wire
Loading…
↗
22
688−82594−00
Clamp
Loading…
↗
23
90465−13M24
Band, switch cord
Loading…
↗
24
6H1−81950−00
Relay aasy
Loading…
↗
27
90465−13M11
Clamp (6e5)
Loading…
↗
28
6H2−81949−01
Wire, lead
Loading…
↗
29
61A−81949−00
Wire, lead
Loading…
↗
30
682−82119−01
Cover, lead wire
Loading…
↗
31
90464−15M11
Clamp (3y2)
Loading…
↗
33
62Y−81948−00
Bracket
Loading…
↗
34
6A0−82317−00
Damper, ignition coil
Loading…
↗
35
624−42542−00
Collar
Loading…
↗
36
90201−12M16
Washer, plate (679)
Loading…
↗
37
95895−06025
Bolt, flange deep recess
Loading…
↗
38
63D−82563−10
Trim & tilt switch assembly
Loading…
↗
39
6E5−82587−00
Gasket
Loading…
↗
40
62Y−83614−00
Bracket
Loading…
↗
