FT50JET (2013)
ELECTRICAL 2

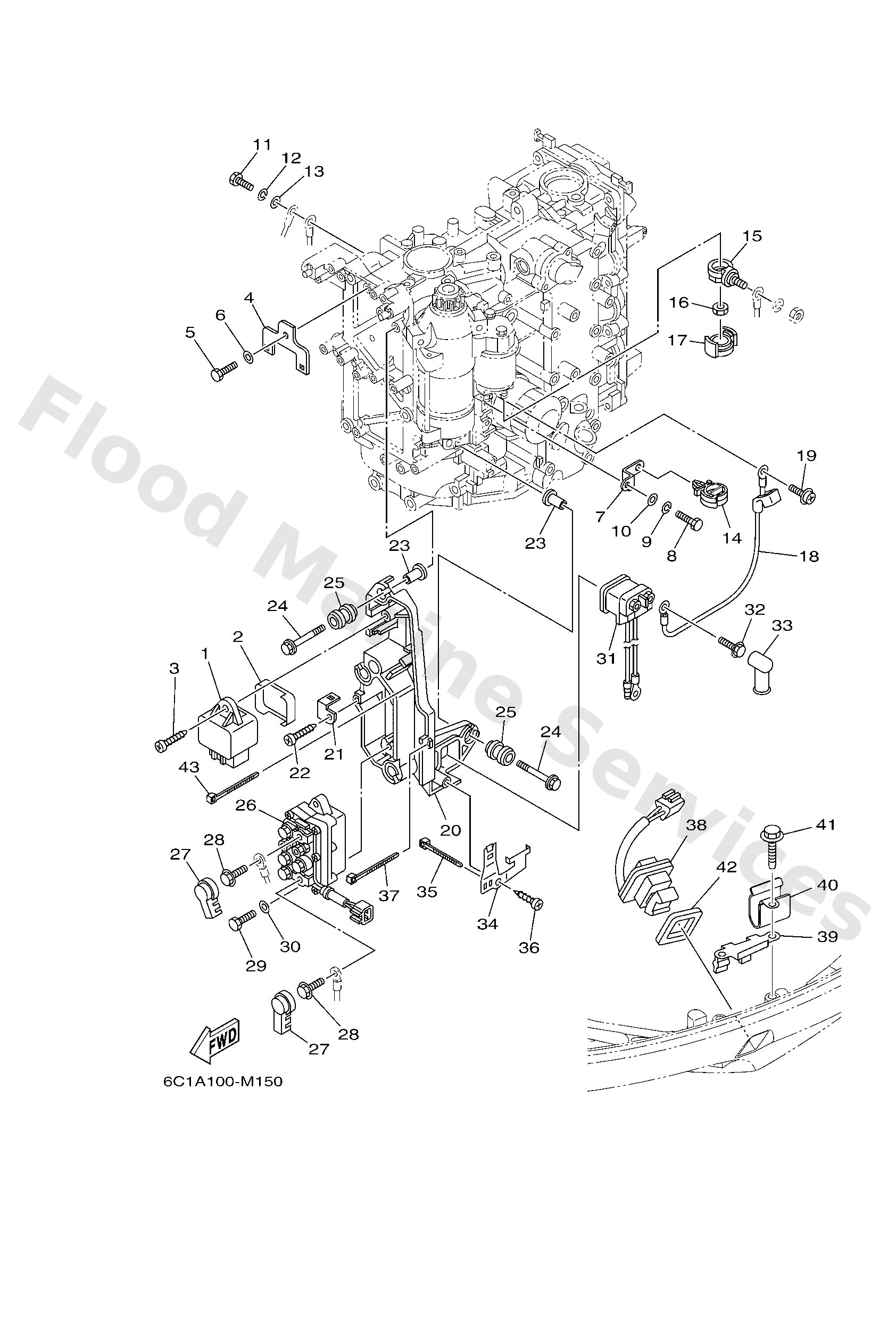

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
60E8195000
Relay assembly
Loading…
↗
2
6C58133600
Grommet
Loading…
↗
3
9778060620
Screw, tapping(6k8)
Loading…
↗
4
6C58257V00
Plate, connector
Loading…
↗
5
9709506014
Bolt(gj3)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
6C58552510
Cover
Loading…
↗
8
9709506020
Bolt(7u8)
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
14
9046412183
Clamp(jn2)
Loading…
↗
15
60V8192500
Terminal
Loading…
↗
16
9017908003
Nut
Loading…
↗
17
68F8258200
Cover, wire harness
Loading…
↗
18
6C58181500
Cord, starter motor
Loading…
↗
19
9015904005
Screw, with washer
Loading…
↗
20
6C58194800
Bracket
Loading…
↗
21
6C58554800
Holder
Loading…
↗
23
9038706119
Collar
Loading…
↗
24
9011906M59
Bolt, with washer
Loading…
↗
25
6A08231700
Damper, ignition coil
Loading…
↗
26
63P8195000
Relay assembly
Loading…
↗
27
6P28183X00
Cap, terminal
Loading…
↗
28
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
31
68V8194A00
Relay
Loading…
↗
33
6G58211900
Cover, lead wire
Loading…
↗
34
6C58195300
Stay, relay
Loading…
↗
35
9046511M10
Clamp
Loading…
↗
37
9046513M97
Clamp
Loading…
↗
38
69J8256300
Trim & tilt switch assembly
Loading…
↗
39
6BG8361400
Bracket
Loading…
↗
40
9046508M89
Clamp
Loading…
↗
41
9010906M86
Bolt
Loading…
↗
42
69J8258700
Gasket
Loading…
↗
