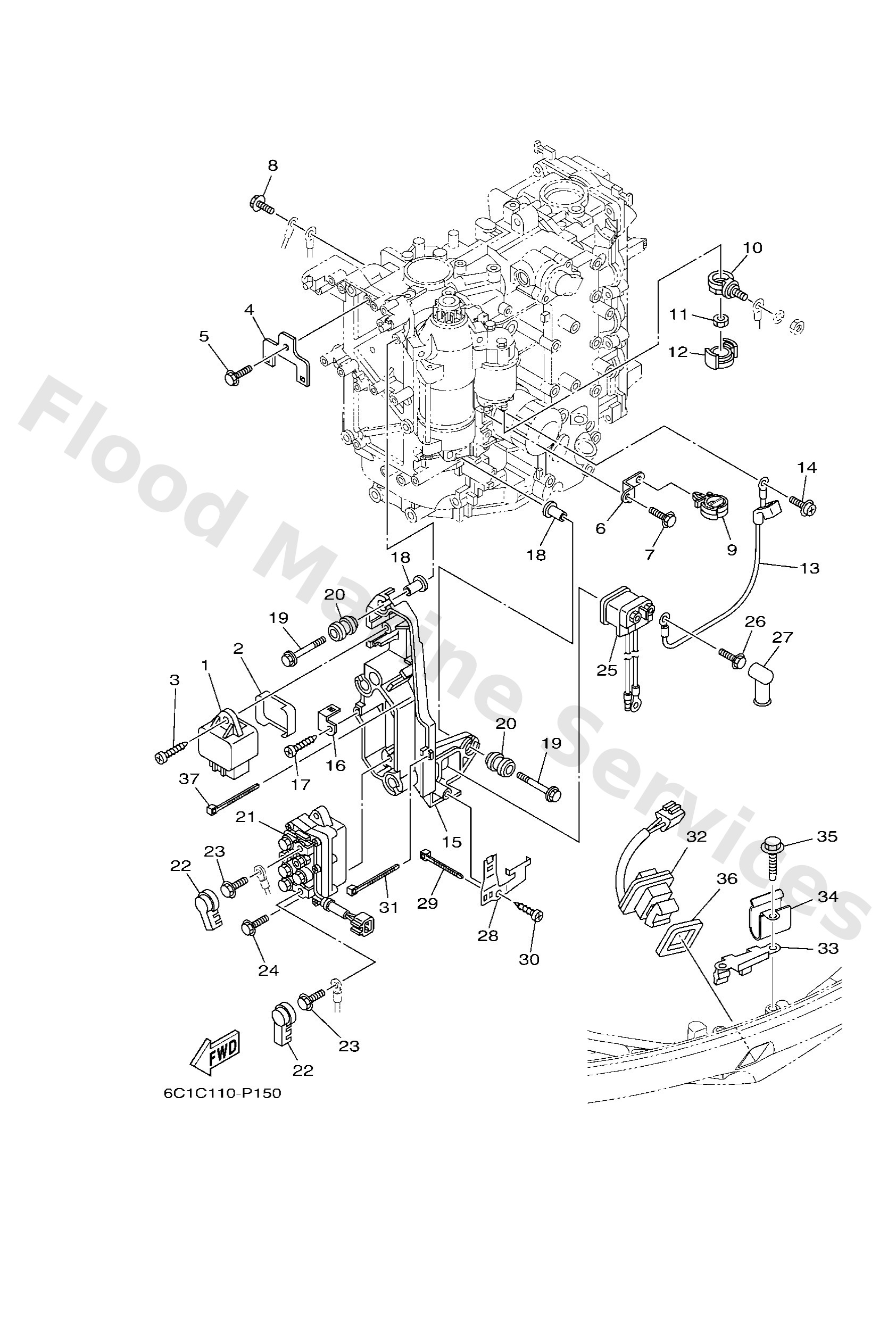

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
60E8195000
Relay assembly
Loading…

↗
2
6C58133600
Grommet
Loading…

↗
3
9778060620
Screw, tapping(6k8)
Loading…

↗
4
6C58257V00
Plate, connector
Loading…

↗
5
9759506514
Bolt(gj3)
Loading…

↗
6
6C58552510
Cover
Loading…

↗
7
9759506620
Bolt, hexagon w/w deep recess
Loading…

↗
9
9046412183
Clamp(jn2)
Loading…

↗
10
60V8192500
Terminal
Loading…

↗
11
9017908003
Nut
Loading…

↗
12
68F8258200
Cover, wire harness
Loading…

↗
13
6C58181500
Cord, starter motor
Loading…

↗
14
9015904005
Screw, with washer
Loading…

↗
15
6C58194800
Bracket
Loading…

↗
16
6C58554801
Holder
Loading…

↗
18
9038706119
Collar
Loading…

↗
19
9011906M59
Bolt, with washer
Loading…

↗
20
6A08231700
Damper, ignition coil
Loading…

↗
21
63P8195000
Relay assembly
Loading…

↗
22
6P28183X00
Cap, terminal
Loading…

↗
23
9759506610
Bolt, hexagon w/w deep recess
Loading…

↗
24
9759506520
Bolt(7u8)
Loading…

↗
25
68V8194A00
Relay
Loading…

↗
27
6G58211900
Cover, lead wire
Loading…

↗
28
6C58195300
Stay, relay
Loading…

↗
29
9046511M10
Clamp
Loading…

↗
31
9046513M97
Clamp
Loading…

↗
32
69J8256301
Trim & tilt switch assembly
Loading…

↗
33
6BG8361400
Bracket
Loading…

↗
34
9046508M89
Clamp
Loading…

↗
35
9010906M86
Bolt
Loading…

↗
36
69J8258700
Gasket
Loading…

↗
