FT8DMH (2005)
ELECTRICAL 2

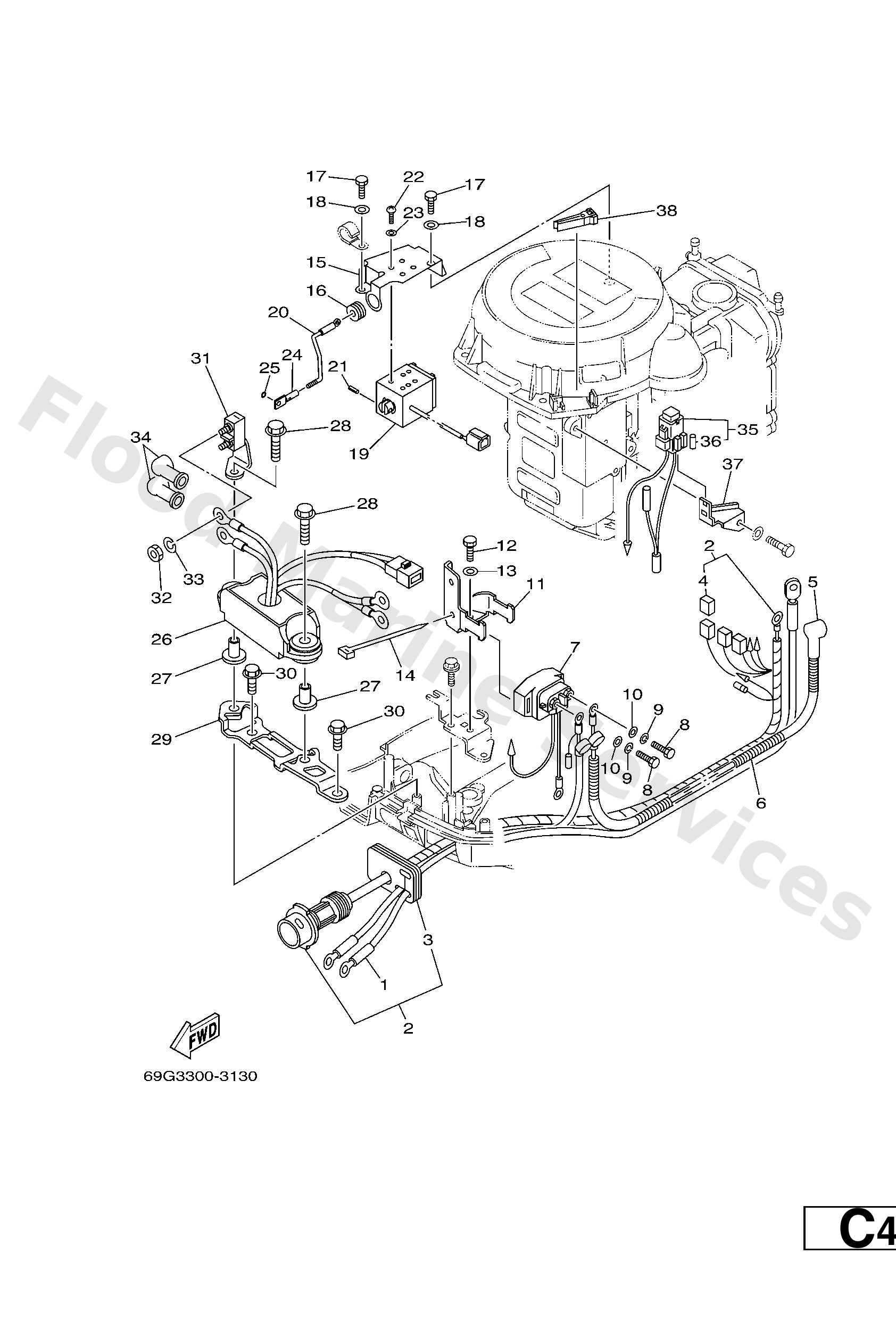

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
69G8210500
Battery cable (l: 3.0m)
Loading…
↗
2
69G8259010
Wire harness assembly
Loading…
↗
3
68T4272440
Grommet
Loading…
↗
4
6N68258200
Cover, wire harness
Loading…
↗
5
6G88211700
Wire, lead
Loading…
↗
6
9044610M86
Hose
Loading…
↗
7
68T8194000
Starter relay assembly
Loading…
↗
8
9709506010
Bolt
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
68T8194500
Plate, switch fitting
Loading…
↗
12
9709506012
Bolt(gh1)
Loading…
↗
14
9046513M11
Clamp (6e5)
Loading…
↗
15
68T8611200
Stay, solenoid
Loading…
↗
16
9048013018
Grommet (462)
Loading…
↗
19
68T8611100
Coil, solenoid
Loading…
↗
20
68T4123700
Joint, link
Loading…
↗
21
9169030010
Pin, spring (663)
Loading…
↗
22
9788004008
Screw, pan head (713)
Loading…
↗
23
9299004600
Washer, plain (646)
Loading…
↗
24
68T8611700
Hook, wire pull
Loading…
↗
25
9321003261
O-ring (663)
Loading…
↗
26
69G8195000
Relay assembly
Loading…
↗
27
9038706M03
Collar (676)
Loading…
↗
28
9011906M56
Bolt, with washer
Loading…
↗
29
69G8194800
Bracket
Loading…
↗
30
9010906M80
Bolt
Loading…
↗
31
69G8192500
Terminal
Loading…
↗
32
9017006M30
Nut(62x)
Loading…
↗
33
9020406M00
Washer, spring(62x)
Loading…
↗
34
6G58211900
Cover, lead wire
Loading…
↗
35
68T8215000
Fuse holder assembly
Loading…
↗
36
66V8215100
Fuse (10a)
Loading…
↗
37
68T8217100
Stay, fuse box
Loading…
↗
38
67F2812A00
Puller, fuse
Loading…
↗
