FT9.9GEP (2010)
ELECTRICAL 2

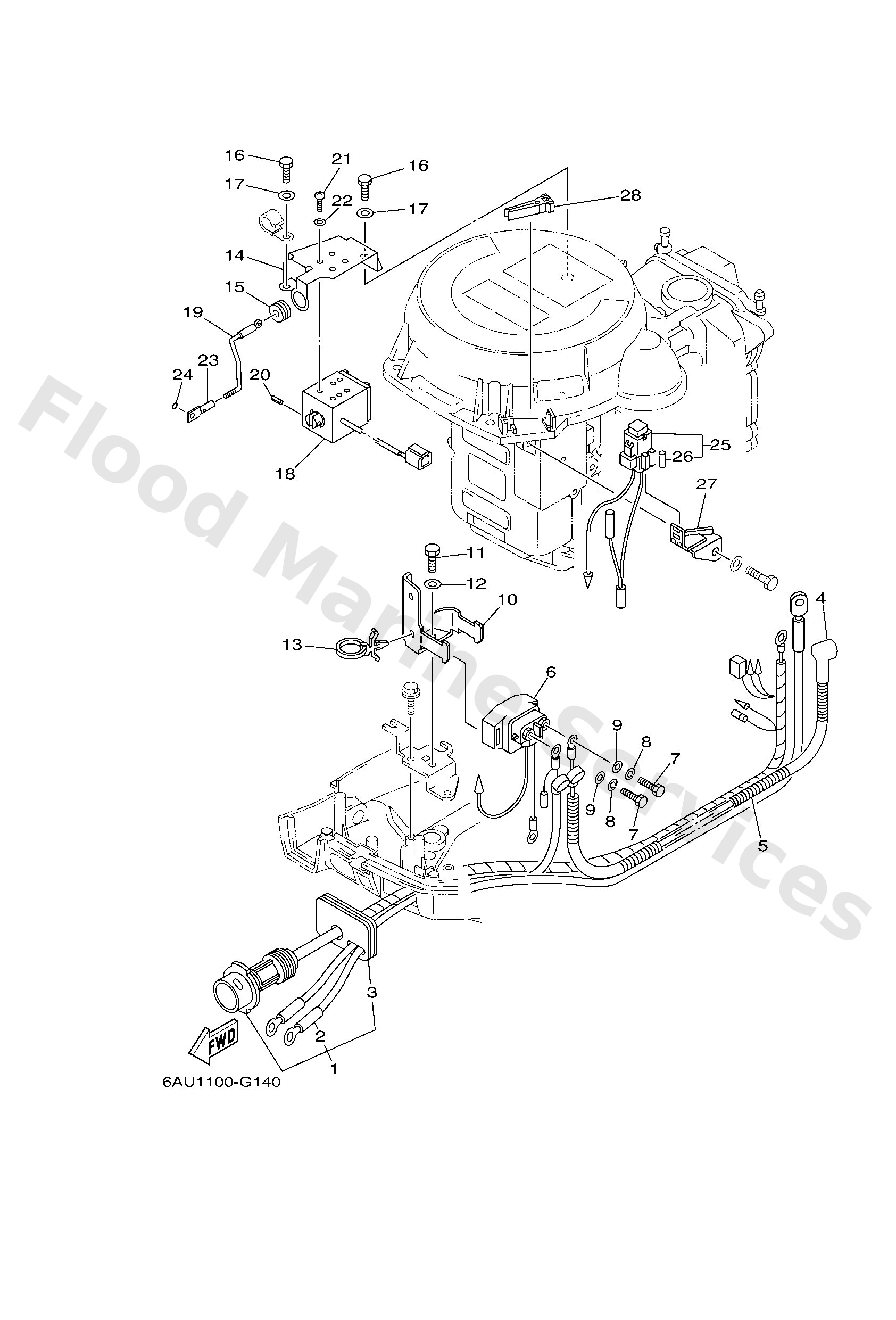

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
69G8258000
Wire harness assembly 2
Loading…
↗
2
69G8210500
Battery cable (l: 3.0m)
Loading…
↗
3
68T4272440
Grommet
Loading…
↗
4
6G88211700
Wire, lead
Loading…
↗
5
9044610M86
Hose
Loading…
↗
6
68T8194000
Starter relay assembly
Loading…
↗
7
9709506010
Bolt
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
68T8194501
Plate, switch fitting
Loading…
↗
11
9709506012
Bolt(gh1)
Loading…
↗
13
9046512M56
Clamp(62t)
Loading…
↗
14
68T8611200
Stay, solenoid
Loading…
↗
15
9048013018
Grommet (462)
Loading…
↗
18
68T8611100
Coil, solenoid
Loading…
↗
19
68T4123700
Joint, link
Loading…
↗
20
9169030010
Pin, spring (663)
Loading…
↗
21
9788004008
Screw, pan head (713)
Loading…
↗
22
9299004600
Washer, plain (646)
Loading…
↗
23
68T8611700
Hook, wire pull
Loading…
↗
24
9321003261
O-ring (663)
Loading…
↗
25
68T8215000
Fuse holder assembly
Loading…
↗
26
66V8215100
Fuse (10a)
Loading…
↗
27
68T8217101
Stay, fuse box
Loading…
↗
28
67F2812A00
Puller, fuse
Loading…
↗
