FT9.9LMH (2022)
ELECTRICAL 2

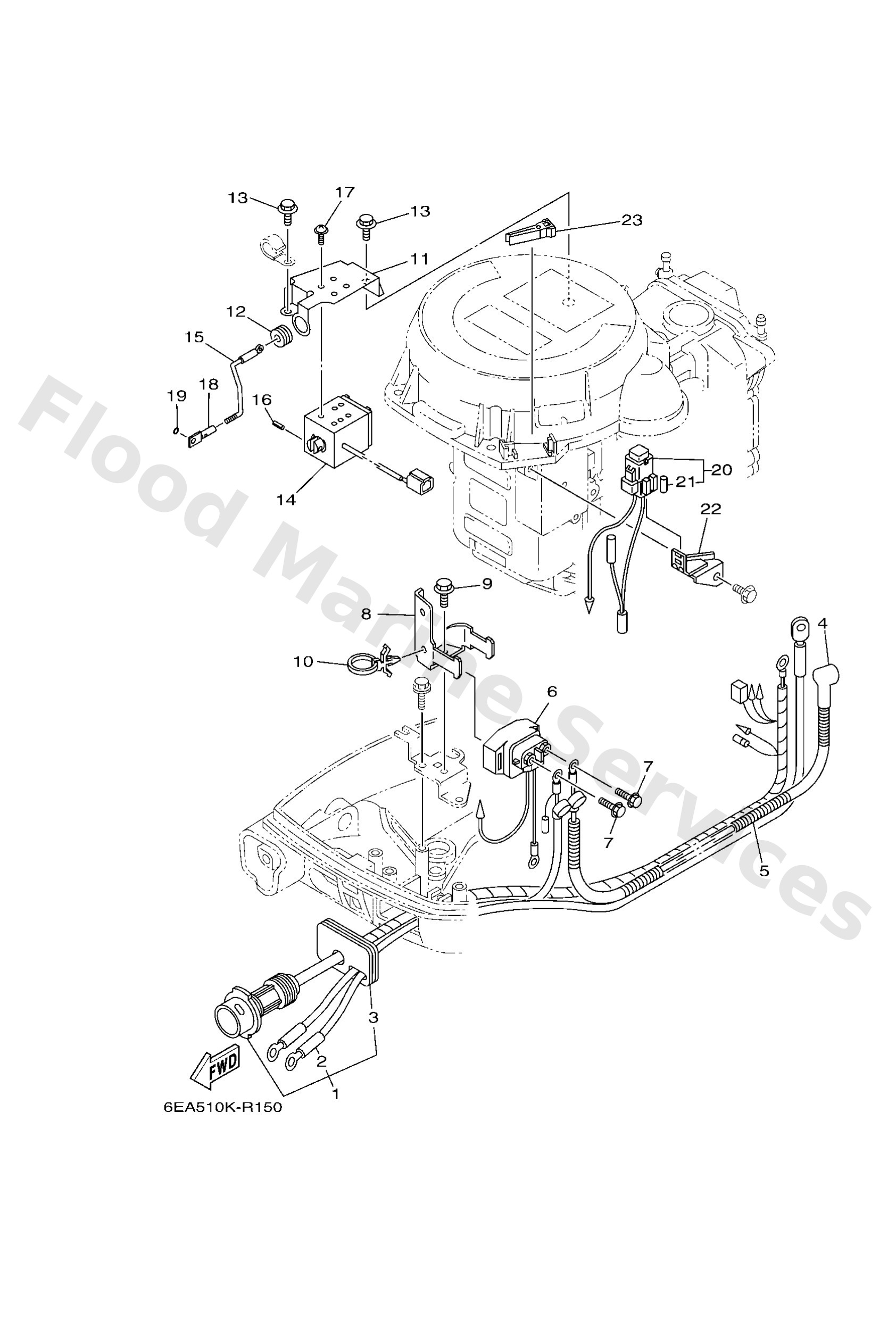

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
69G8258002
Wire harness assembly 2
Loading…
↗
2
69G8210502
Battery cable (l: 3.0m)
Loading…
↗
3
68T4272440
Grommet
Loading…
↗
4
6G88211701
Wire, lead
Loading…
↗
5
9044610M86
Hose
Loading…
↗
6
68T8194000
Starter relay assembly
Loading…
↗
7
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
8
68T8194501
Plate, switch fitting
Loading…
↗
9
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
10
9046512M56
Clamp(62t)
Loading…
↗
11
68T8611200
Stay, solenoid
Loading…
↗
12
9048013018
Grommet (462)
Loading…
↗
14
68T8611100
Coil, solenoid
Loading…
↗
15
68T4123700
Joint, link
Loading…
↗
16
9169030010
Pin, spring (663)
Loading…
↗
17
9798004208
Screw, pan head (713)
Loading…
↗
18
68T8611700
Hook, wire pull
Loading…
↗
19
9321003261
O-ring (663)
Loading…
↗
20
68T8215000
Fuse holder assembly
Loading…
↗
21
66V8215100
Fuse (10a)
Loading…
↗
22
68T8217101
Stay, fuse box
Loading…
↗
23
67F2812A00
Puller, fuse
Loading…
↗
