Yamaha Outboard Parts - ELECTRICAL 2 - H3.7AV (2021) | Flood Marine

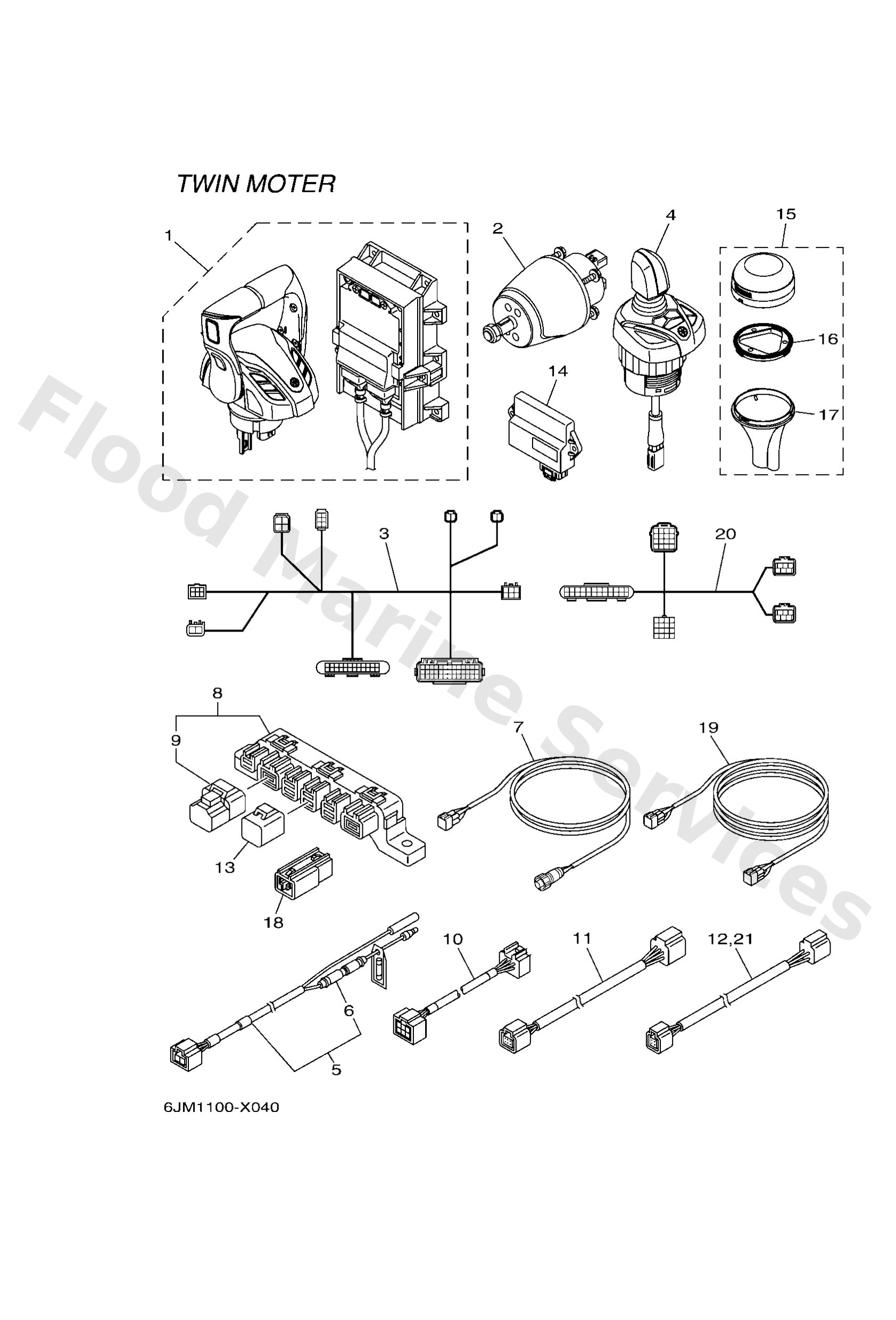

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
6JM4820701
Remote control assembly
Loading…

↗
2
6JM615A000
Helm assembly.
Loading…

↗
3
6JM8238600
Extension, wire harness
Loading…

↗
4
6JM482A001
Joystick assembly
Loading…

↗
5
6Y88355302
8ft power wire
Loading…

↗
6
6G18215101
Fuse (10a)
Loading…

↗
7
6YM8355300
Conversion harness cl5-pigtail
Loading…

↗
8
6Y88192001
Multi-hub
Loading…

↗
9
6Y88537101
End of line resister
Loading…

↗
10
6Y98355300
Wire, lead
Loading…

↗
11
6Y88255301
Main bus wire 0.3m-1ft
Loading…

↗
21
6Y88252131 UR
Pigtail bus wire 1.8m-6ft
Loading…

↗
13
6Y88258211
White cap 1 (4pin)
Loading…

↗
14
6X98591T22 ASK TO MARINE DIV
Bcu (ap/joystick twin)
Loading…

↗
15
6X98810700
Gps unit
Loading…

↗
16
6X98252H00
Plate, holder
Loading…

↗
17
6X98255H00
Holder, socket
Loading…

↗
18
6Y88192011
Single-hub
Loading…

↗
19
6X68258A71 UR 15M-49FT MAIN-HARNESS (16P)
16p dbw main harness 15m-49ft
Loading…

↗
19
6X68258A01 UR 6M-19FT MAIN-HARNESS (16P)
Extension, wire harness(6.1m)
Loading…

↗
19
6X68258A41 UR 12M-39FT MAIN-HARNESS (16P)
16p dbw main harness 12m-38ft
Loading…

↗
19
6X68258A31 UR 10M-32FT MAIN-HARNESS (16P)
16p dbw main harness 10m-32ft
Loading…

↗
19
6X68258A21 UR 8M-26FT MAIN-HARNESS (16P)
16p dbw main harness 8m-26ft
Loading…

↗
19
6X68258A11 UR 7M-23FT MAIN-HARNESS (16P)
16p dbw main harness 7m-23ft
Loading…

↗
19
6X68258A61
Extension, wire harness (5.2m)
Loading…

↗
19
6X68258A51
Extension, wire harness (3.7m)
Loading…

↗
19
6X68258A91 UR 1.5M-5FT MAIN-HARNESS (16P)
Extension, Wire Harness (1.5M)
Loading…

↗
19
6X68258A81 UR 24M-79FT MAIN-HARNESS (16P)
16p dbw main harness 24m-79ft
Loading…

↗
20
6GR8258A50 UR MULTIPLE ENGINES (MAIN ST)
Helm harness multi engines 1.8
Loading…

↗
20
6GR8258A60 UR MULTIPLE ENGINES (MAIN ST)
Helm harness multi engines 2.7
Loading…

↗
20
6GR8258A10 UR MULTIPLE ENGINES (MAIN ST)
Helm harness multi engines 0.9
Loading…

↗
21
6Y88252121 UR
Pigtail bus wire 0.9m-3ft
Loading…

↗
21
6Y88252111 UR
Pigtail bus wire 0.6m-2ft
Loading…

↗
21
6Y88252101 UR
1ft pigtail bus
Loading…

↗
21
6Y88252151 UR
Pigtail bus wire 3.6m-12ft
Loading…

↗
21
6Y88252141 UR
9ft pigtail bus
Loading…

↗
