L250GETO (2010)
ELECTRICAL 2

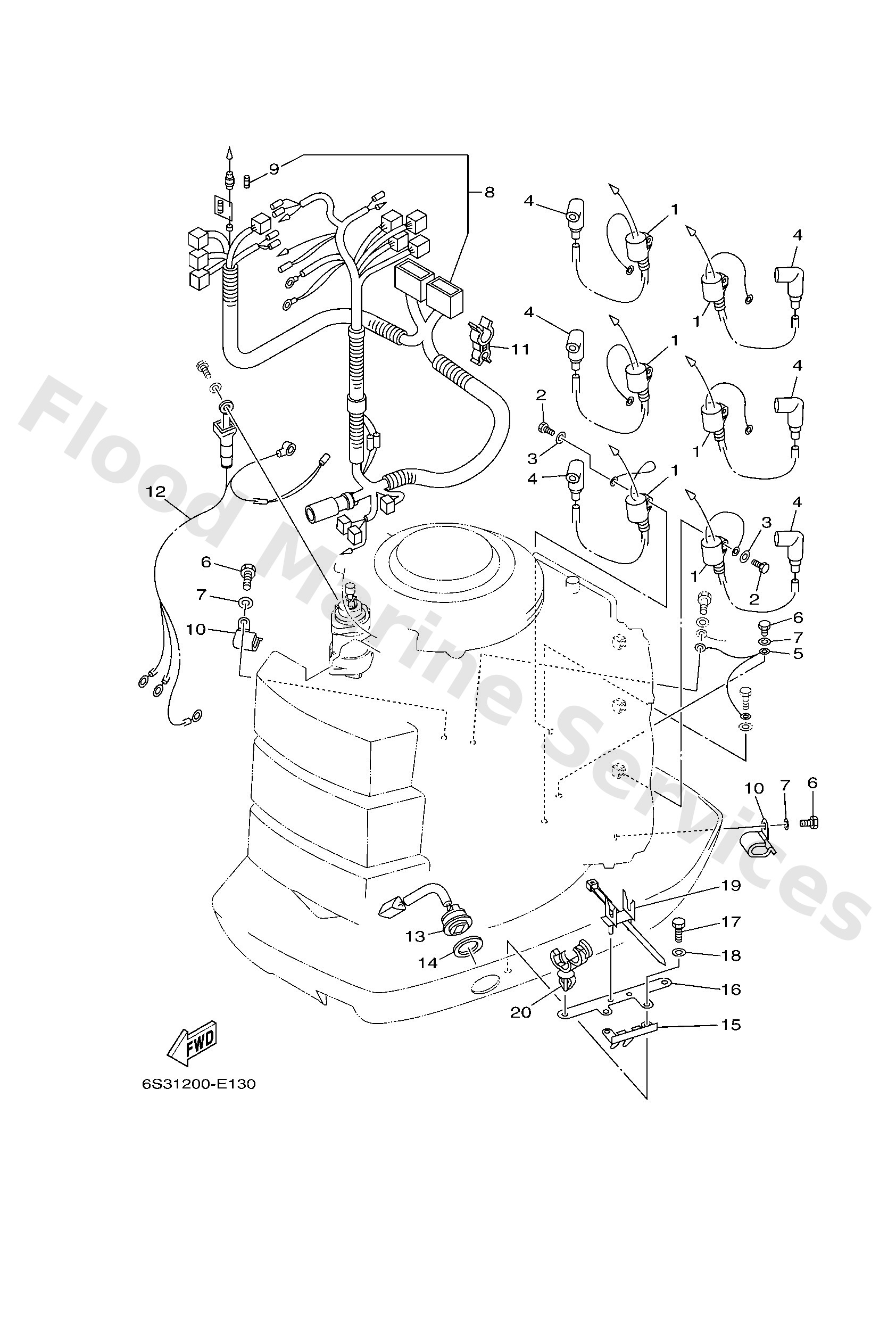

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
61A8557000
Ignition coil assembly
Loading…
↗
2
9701306020
Bolt(62y)
Loading…
↗
3
9290306600
Washer, plain (646)
Loading…
↗
4
6E38237021
Plug cap assembly
Loading…
↗
5
61A8253100
Wire, lead
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6S38259000
Wire harness assembly
Loading…
↗
9
6638215100
Fuse
Loading…
↗
10
9046508M89
Clamp
Loading…
↗
11
9046418003
Clamp
Loading…
↗
12
61A8210500
Battery cable
Loading…
↗
13
61A8256300
Trim & tilt switch assembly
Loading…
↗
14
6E58258700
Gasket
Loading…
↗
15
61A8361400
Bracket
Loading…
↗
16
6S38361400
Bracket
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
19
6888259400
Clamp
Loading…
↗
20
9046420181
Clamp(4ap)
Loading…
↗
