LZ200NETO (2005)
ELECTRICAL 2

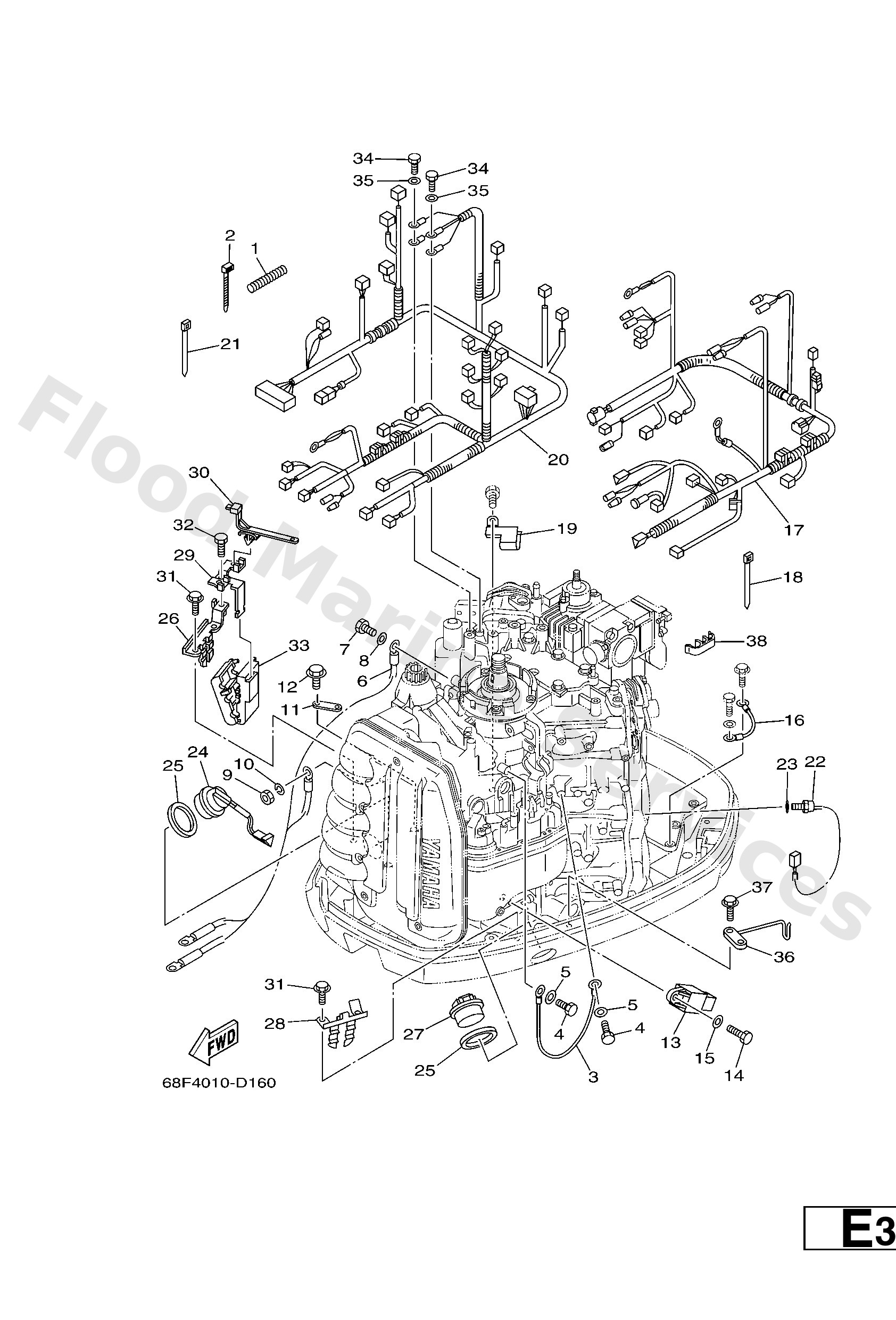

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
9044707011
Hose, with spring
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
6H28194911
Wire, lead
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
68F8210500
Battery cable
Loading…
↗
7
9709508016
Bolt, hexagon deep recess
Loading…
↗
8
9299508600
Washer, plain (663)
Loading…
↗
9
9533308600
Nut(6l2)
Loading…
↗
10
9290308100
Ybs67-8 washer, spring
Loading…
↗
11
6E58258800
Plate
Loading…
↗
12
9589506020
Bolt, flange(jk3)
Loading…
↗
13
68V8195000
Relay assembly
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
6E58253110
Wire, lead
Loading…
↗
17
68F8259060
Wire Harness assembly
Loading…
↗
18
9046511M52
Clamp(6e7)
Loading…
↗
19
68F8391900
Clamp, harness
Loading…
↗
20
68F8259M40
Wire Harness assembly 2
Loading…
↗
22
61A8579000
Thermosensor assembly
Loading…
↗
23
9299010600
Washer, plate
Loading…
↗
24
6R38256300
Trim & tilt switch assembly
Loading…
↗
25
6E58258700
Gasket
Loading…
↗
26
68F8361400
Bracket
Loading…
↗
27
68F42723108D
Cover, bottom
Loading…
↗
28
68F8361410
Bracket
Loading…
↗
29
68F8363500
Bracket
Loading…
↗
30
9046420213
Clamp(4kj)
Loading…
↗
31
9010906M80
Bolt
Loading…
↗
32
9709506014
Bolt(gj3)
Loading…
↗
33
68F8363400
Grommet
Loading…
↗
36
6K78258800
Plate
Loading…
↗
38
9046411008
Clamp
Loading…
↗
