LZ250DETO (2007)
ELECTRICAL 2

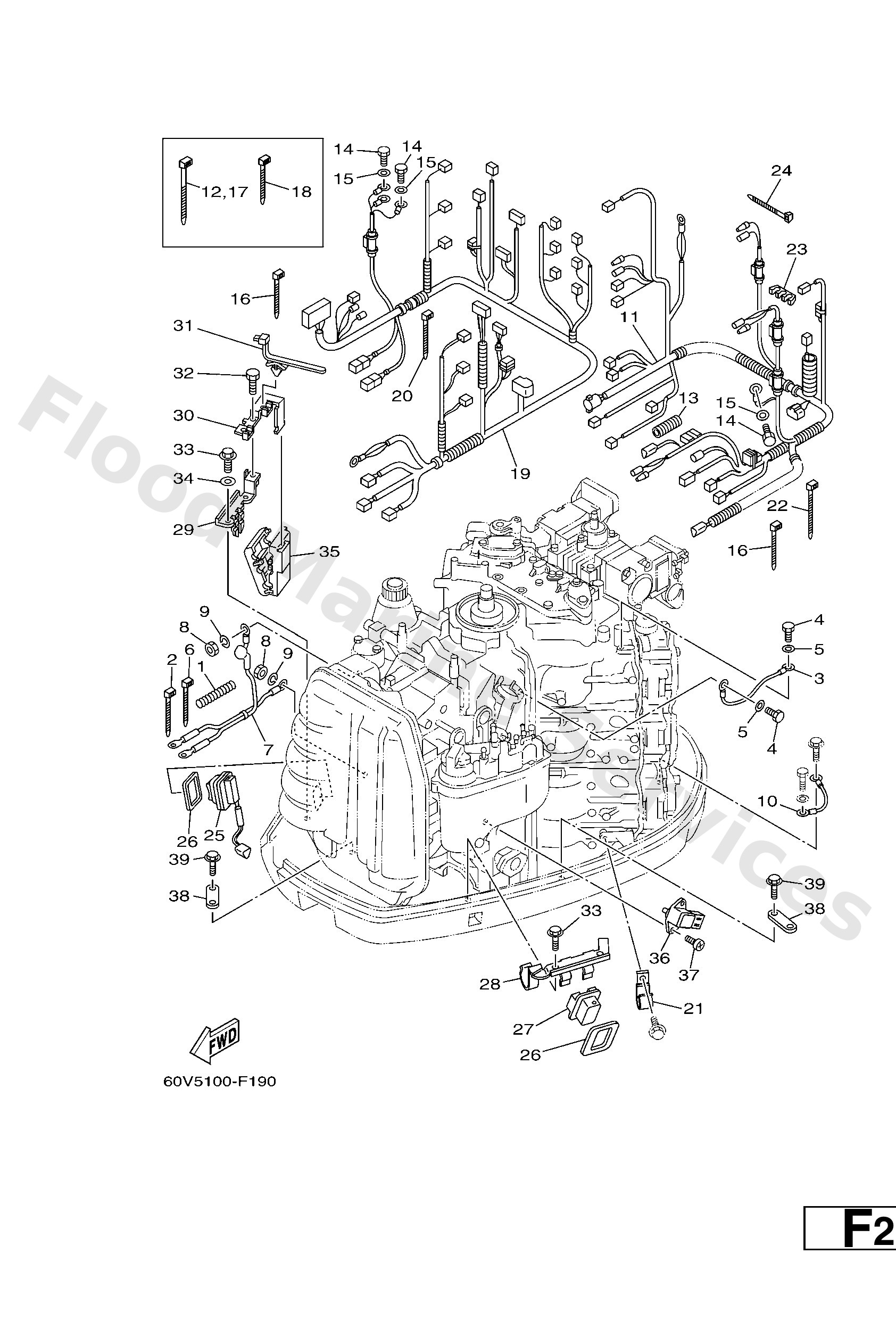

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
9044707011
Hose, with spring
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
61A8194900
Wire, lead
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
7
60V8210500
Battery cable
Loading…
↗
8
9533308600
Nut(6l2)
Loading…
↗
9
9290308100
Ybs67-8 washer, spring
Loading…
↗
10
6D08253100
Wire, lead
Loading…
↗
11
60V8259071
Wire harness assembly
Loading…
↗
12
9046513M18
Clamp
Loading…
↗
13
68F8355700
Tube
Loading…
↗
16
9046511M52
Clamp(6e7)
Loading…
↗
19
6D08259M20
Wire Harness assembly 2
Loading…
↗
21
9046208029
Clamp
Loading…
↗
23
9046411008
Clamp
Loading…
↗
25
69J8256300
Trim & tilt switch assembly
Loading…
↗
26
69J8258700
Gasket
Loading…
↗
27
69J4272300
Cover, Bottom
Loading…
↗
28
60V8361420
Bracket
Loading…
↗
29
60V8361410
Bracket
Loading…
↗
30
60V8363510
Bracket
Loading…
↗
31
9046420213
Clamp(4kj)
Loading…
↗
32
9709506014
Bolt(gj3)
Loading…
↗
33
9010906M86
Bolt
Loading…
↗
34
60V8361800
Plate
Loading…
↗
35
68F8363400
Grommet
Loading…
↗
36
67H8238000
Sensor, pressure
Loading…
↗
37
9858006520
Screw pan head
Loading…
↗
38
6E58258800
Plate
Loading…
↗
39
9589506020
Bolt, flange(jk3)
Loading…
↗
