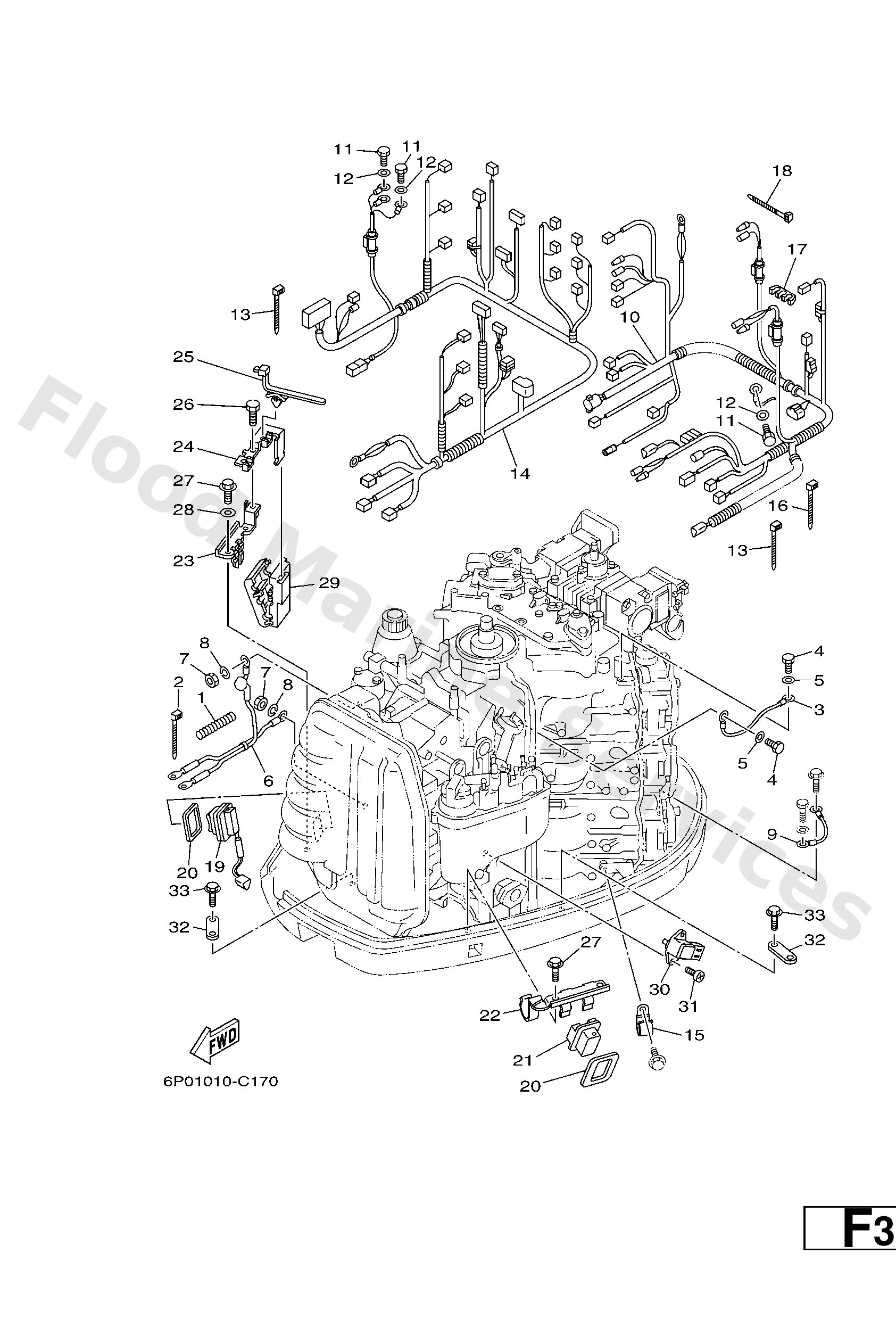

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
9044707011
Hose, with spring
Loading…

↗
2
9046511M10
Clamp
Loading…

↗
3
61A8194900
Wire, lead
Loading…

↗
4
9709506012
Bolt(gh1)
Loading…

↗
5
9299506600
Washer, plain (646)
Loading…

↗
6
60V8210500
Battery cable
Loading…

↗
7
9533308600
Nut(6l2)
Loading…

↗
8
9290308100
Ybs67-8 washer, spring
Loading…

↗
9
6D08253100
Wire, lead
Loading…

↗
10
60V8259030
Wire Harness assembly
Loading…

↗
13
9046511M52
Clamp(6e7)
Loading…

↗
14
60V8259M00
Wire Harness assembly 2
Loading…

↗
15
9046505M87
Clamp
Loading…

↗
17
9046411008
Clamp
Loading…

↗
19
69J8256300
Trim & tilt switch assembly
Loading…

↗
20
69J8258700
Gasket
Loading…

↗
21
69J4272300
Cover, Bottom
Loading…

↗
22
60V8361400
Bracket
Loading…

↗
23
60V8361410
Bracket
Loading…

↗
24
60V8363510
Bracket
Loading…

↗
25
9046420213
Clamp(4kj)
Loading…

↗
26
9709506014
Bolt(gj3)
Loading…

↗
27
9010906M86
Bolt
Loading…

↗
28
60V8361800
Plate
Loading…

↗
29
68F8363400
Grommet
Loading…

↗
30
67H8238000
Sensor, pressure
Loading…

↗
31
9858006520
Screw pan head
Loading…

↗
32
6E58258800
Plate
Loading…

↗
33
9589506020
Bolt, flange(jk3)
Loading…

↗
