Yamaha Outboard Parts - ELECTRICAL 2 - ME422STIP2 (2013) | Flood Marine

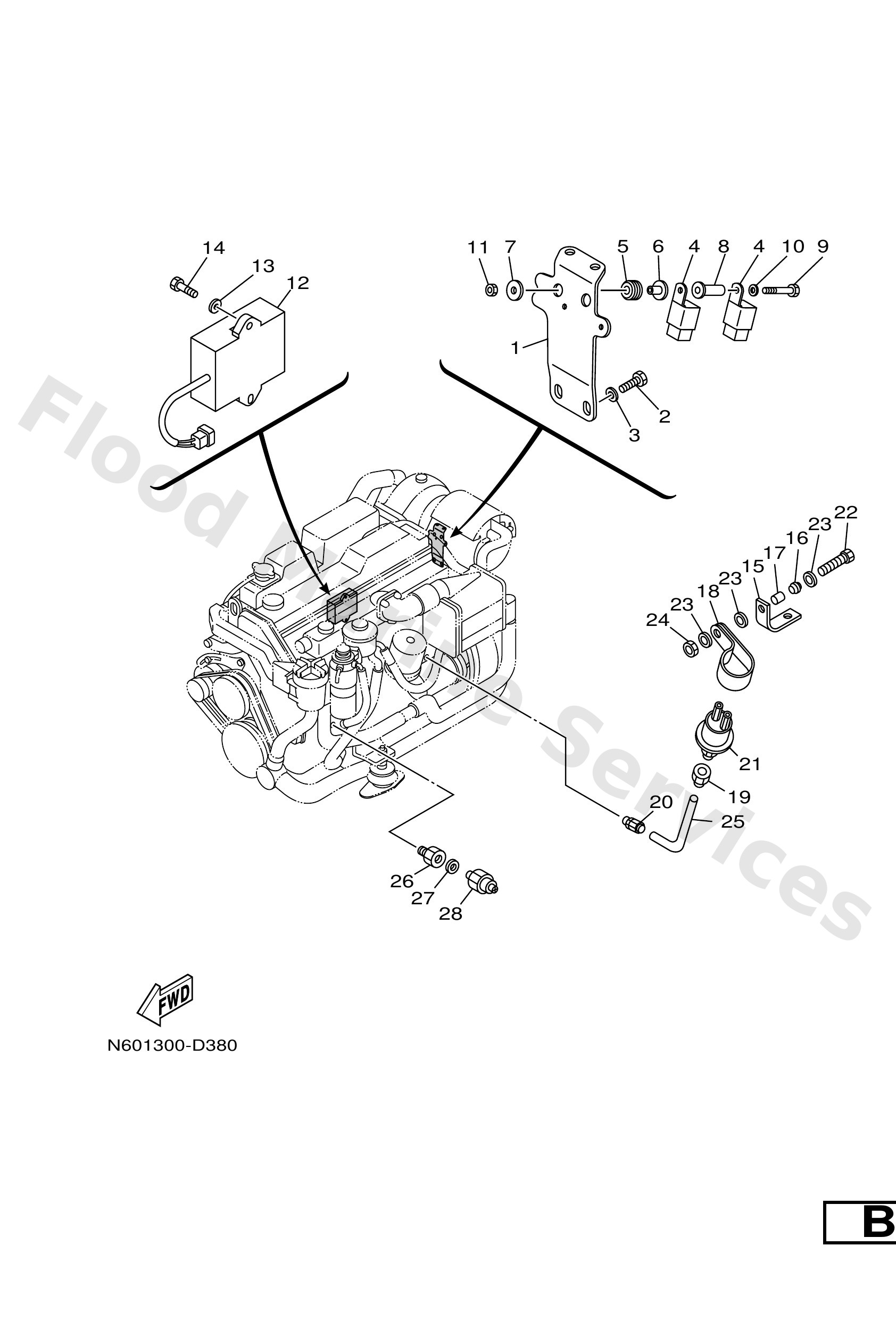

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
6
-
Loading…

↗
1
6TA8554200
Bracket
Loading…

↗
2
9702712020
Bolt(6ta)
Loading…

↗
2
8
-
Loading…

↗
5
9048009M21
Grommet (6e9)
Loading…

↗
7
9020106416
Washer, plate(663)
Loading…

↗
9
9702706045
Bolt, hexagon
Loading…

↗
10
9290706600
Washer(6ta)
Loading…

↗
12
4
6Yf-82588-00
Loading…

↗
14
9702706020
Bolt, hexagon
Loading…

↗
15
6TA8361400
Braket
Loading…

↗
15
12
92990-10100
Loading…

↗
16
9048014M45
Grommet(6r3)
Loading…

↗
17
9038708M22
Collar(3hm)
Loading…

↗
18
9046114119
Clamp(n14)
Loading…

↗
20
N235176200
Joint 2
Loading…

↗
22
9701708030
Bolt, hexagon
Loading…

↗
23
13
-
Loading…

↗
23
11
6Yf-8357X-10
Loading…

↗
24
9533708600
Nut(6ta)
Loading…

↗
25
19
-
Loading…

↗
25
6TA8378100
Tube
Loading…

↗
26
21
-
Loading…

↗
26
6TA8237800
Connector
Loading…

↗
27
9043010200
Gasket(1uy)
Loading…

↗
28
6TA8365110 UR 2 STATION
Sender, oil pressure
Loading…

↗
28
7168250400
Oil pressure switch assembly
Loading…

↗
