ME432STIP2 (2009)
ELECTRICAL 2

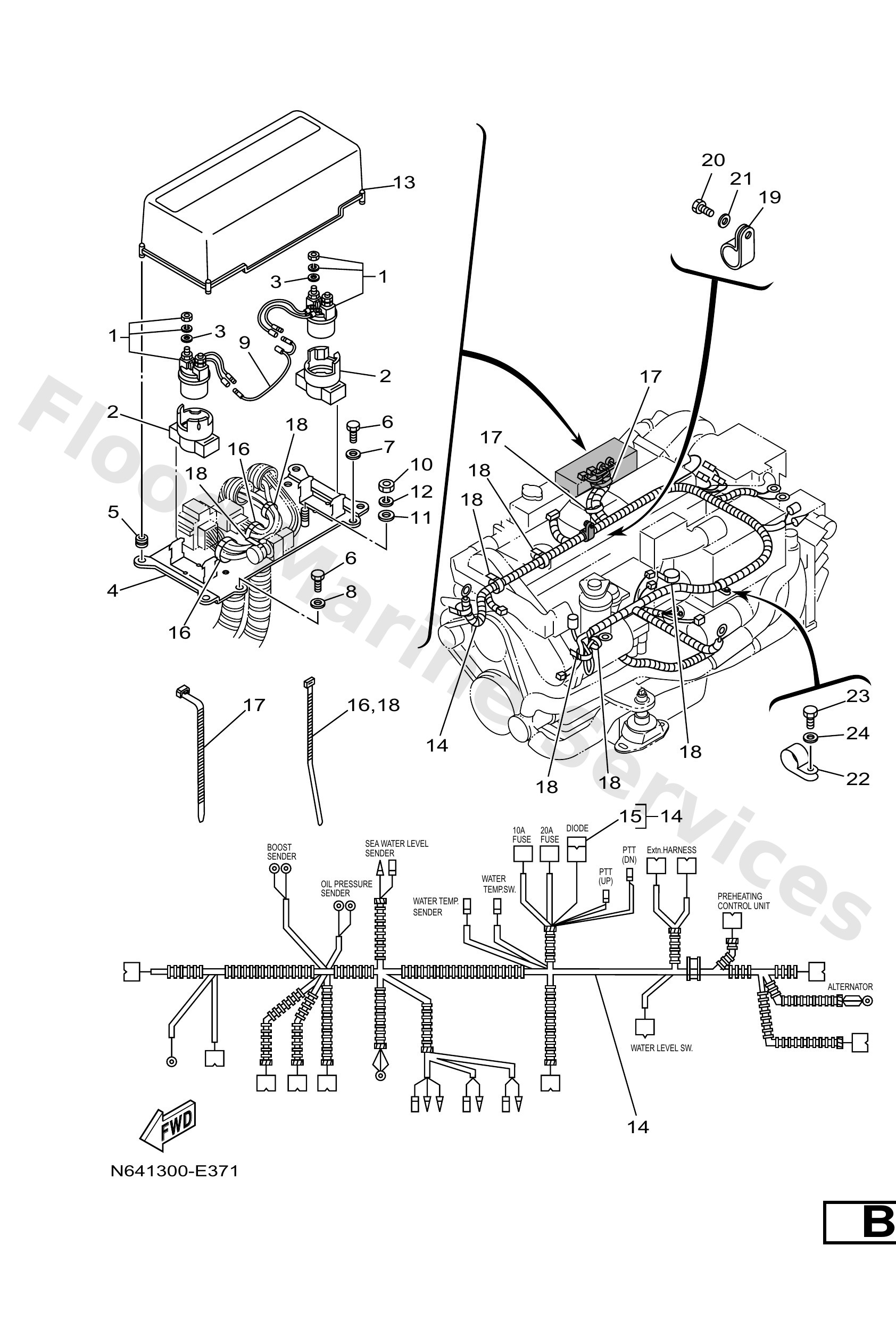

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
2
6M68195201
Holder Relay
Loading…
↗
3
9299006200
Ybs66-6 washer, plain
Loading…
↗
3
1
6Yf-82580-C0
Loading…
↗
5
9048010M58
Grommet(6ta)
Loading…
↗
5
10
-
Loading…
↗
6
9708006012
Bolt(gh1)
Loading…
↗
7
9299006600
Washer, plain (646)
Loading…
↗
10
18
-
Loading…
↗
11
9299010600
Washer, plate
Loading…
↗
12
9299010100
Ybs67-10 washer, spring
Loading…
↗
13
6TA8559900
Cover
Loading…
↗
14
N648259000
Wire harness assembly
Loading…
↗
17
8
-
Loading…
↗
17
9046513M30
Clamp
Loading…
↗
18
9046513M36
Clamp(6h4)
Loading…
↗
21
90201084K5
Washer, plate
Loading…
↗
23
15
-
Loading…
↗
23
9702708016
Bolt, hexagon
Loading…
↗
24
16
92907-08600
Loading…
↗
24
9290708600
Washer(6ta)
Loading…
↗
