VF90A (2022)
ELECTRICAL 2

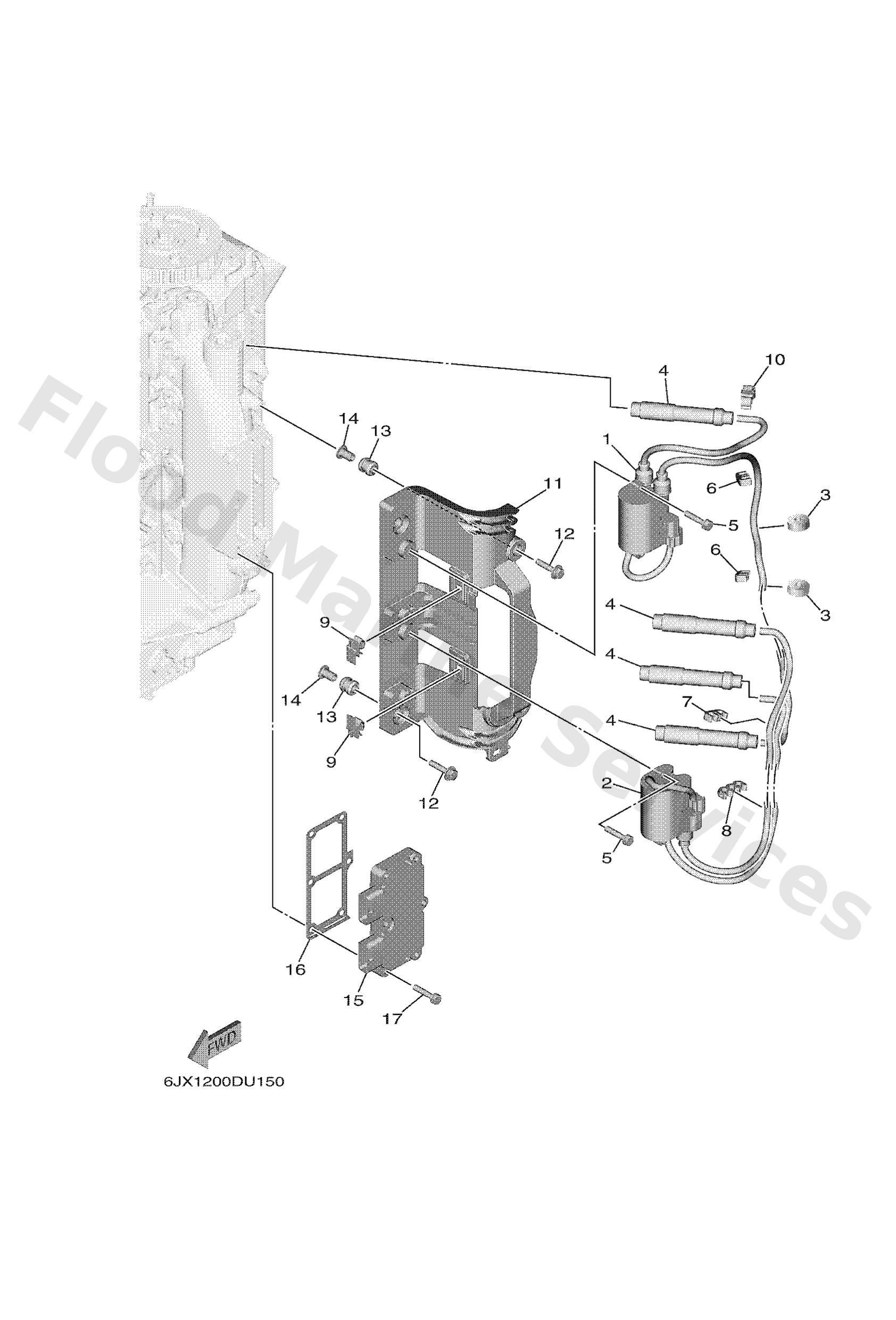

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6FP8231000
Ignition coil assembly
Loading…
↗
2
6FP8231010
Ignition coil assembly
Loading…
↗
3
9048025161
Grommet(656)
Loading…
↗
4
6FP8237000
Plug cap assembly
Loading…
↗
5
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
6
67F8236100
Clamp, cord
Loading…
↗
8
9046407M05
Clamp (6g5)
Loading…
↗
9
9046412002
Clamp
Loading…
↗
10
9046409013
Clamp
Loading…
↗
11
6FP8231600
Bracket, ignition coil
Loading…
↗
12
9011906294
Bolt, with washer
Loading…
↗
13
6A08231701
Damper, ignition coil
Loading…
↗
14
9038706119
Collar
Loading…
↗
15
6EK8196010
Rectifier & regulator assembly
Loading…
↗
16
6FP8197500
Plate, rectifier fitting
Loading…
↗
17
9011906MA4
Bolt, with washer
Loading…
↗
