XF375NSA (2018)
ELECTRICAL 2

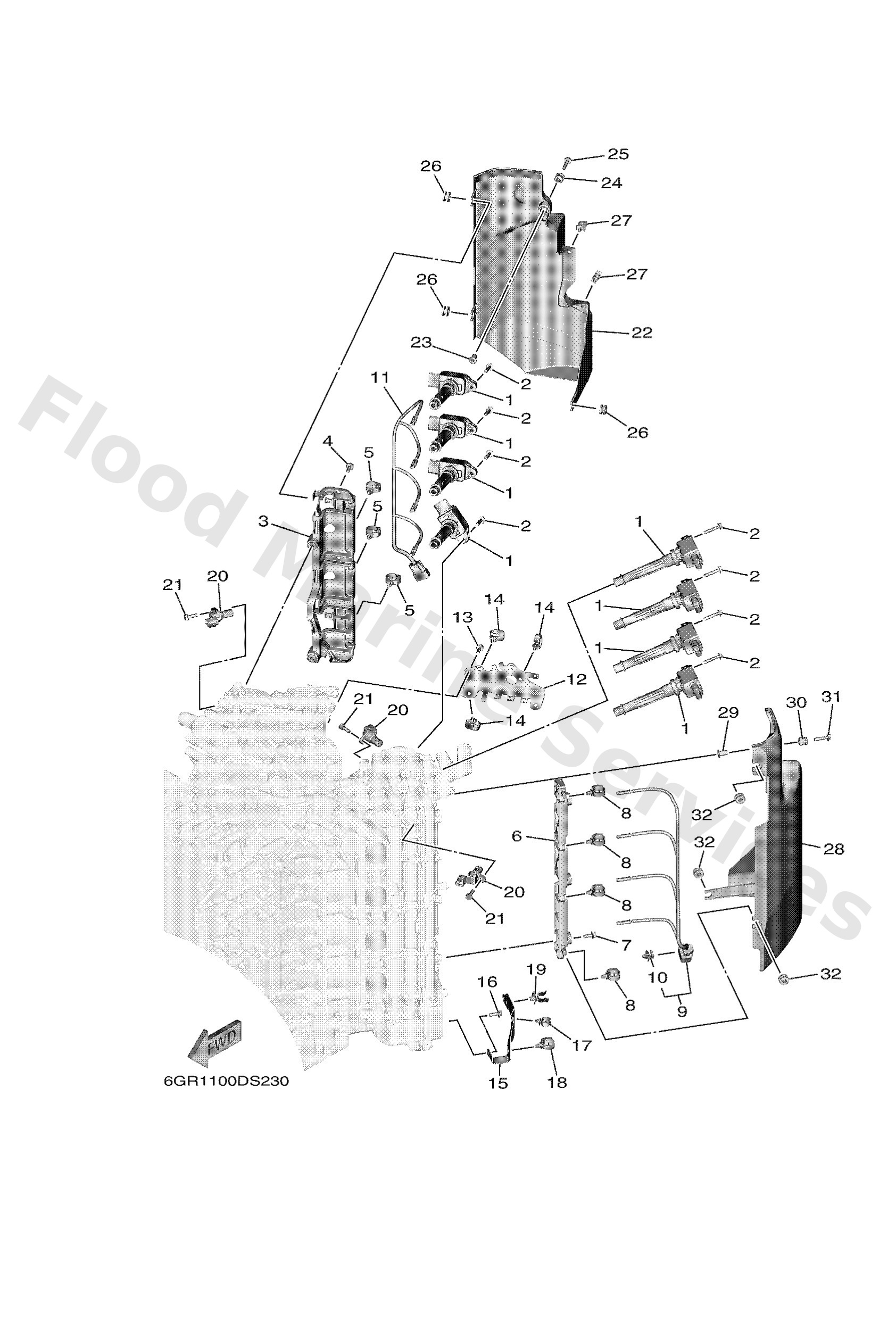

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6GR8231000
Ignition coil assembly
Loading…
↗
2
9010506028
Bolt, washer based
Loading…
↗
3
6GR8272F00
Plate, guide 1
Loading…
↗
4
9589506016
Bolt, flange deep recess
Loading…
↗
5
9046420181
Clamp(4ap)
Loading…
↗
6
6GR8272G00
Plate, guide 2
Loading…
↗
9
6GR8238600
Extension, wire harness
Loading…
↗
10
9046409M47
Clamp(65j)
Loading…
↗
11
6GR8238610
Extension, wire harness
Loading…
↗
12
6GR8238800
Plate
Loading…
↗
15
6GR8238900
Plate 2
Loading…
↗
17
9046413249
Clamp
Loading…
↗
19
9046412015
Clamp
Loading…
↗
20
6GR8589600
Sensor, cam position
Loading…
↗
21
9759506520
Bolt(7u8)
Loading…
↗
22
6GR1118600
Cover, cylinder head side 2
Loading…
↗
23
9038706119
Collar
Loading…
↗
24
6A08231700
Damper, ignition coil
Loading…
↗
25
9589506025
Bolt, flange deep recess
Loading…
↗
26
9048012314
Grommet(3aa)
Loading…
↗
27
9046409129
Clamp(3ld)
Loading…
↗
28
6GR1118700
Cover, cylinder head side 3
Loading…
↗
