Z250DETO (2003)
ELECTRICAL 2

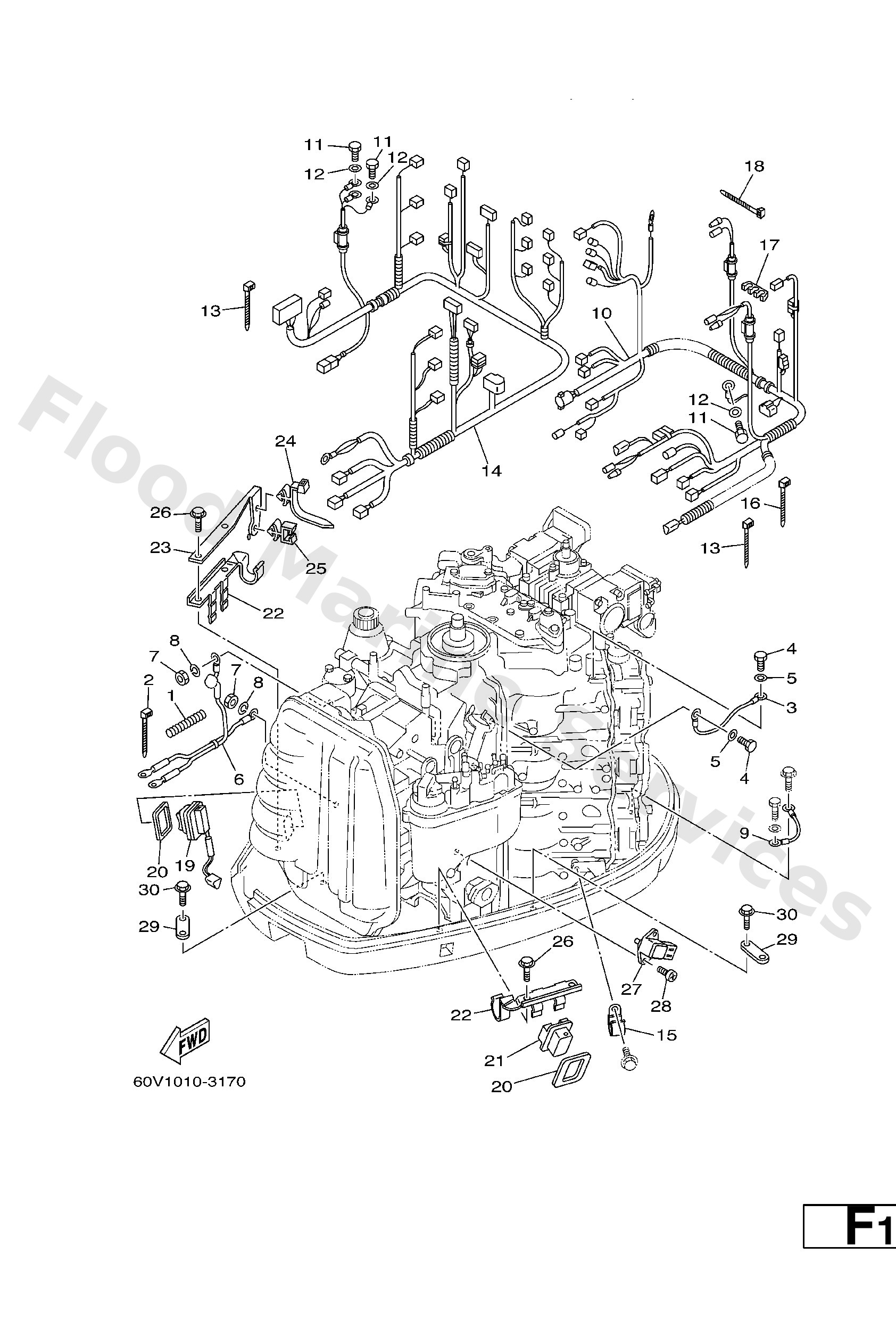

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
90446−10M86
Hose
Loading…
↗
2
90465−11M10
Clamp
Loading…
↗
3
61A−81949−00
Wire, lead
Loading…
↗
4
97095−06012
Bolt(gh1)
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
60V−82105−00
Battery cable
Loading…
↗
7
95333−08600
Nut(6l2)
Loading…
↗
8
92903−08100
Ybs67-8 washer, spring
Loading…
↗
9
6E5−82531−10
Wire, lead
Loading…
↗
10
60V−82590−10
Wire Harness assembly
Loading…
↗
13
90465−13M18
Clamp
Loading…
↗
14
60V−8259M−00
Wire Harness assembly 2
Loading…
↗
15
90465−05M87
Clamp
Loading…
↗
17
90464−11008
Clamp
Loading…
↗
19
69J−82563−00
Trim & tilt switch assembly
Loading…
↗
20
69J−82587−00
Gasket
Loading…
↗
21
69J−42723−00
Cover, Bottom
Loading…
↗
22
60V−83614−00
18 −
Loading…
↗
23
60V−83635−00
18 −
Loading…
↗
24
90464−20213
Clamp(4kj)
Loading…
↗
25
90464−23199
Clamp(4hm)
Loading…
↗
26
90109−06M86
Bolt
Loading…
↗
27
67H−82380−00
Sensor, pressure
Loading…
↗
28
98580−06520
Screw pan head
Loading…
↗
29
6E5−82588−00
Plate
Loading…
↗
30
95895−06020
Bolt, flange(jk3)
Loading…
↗
