225GETO (1999)
ELECTRICAL 3

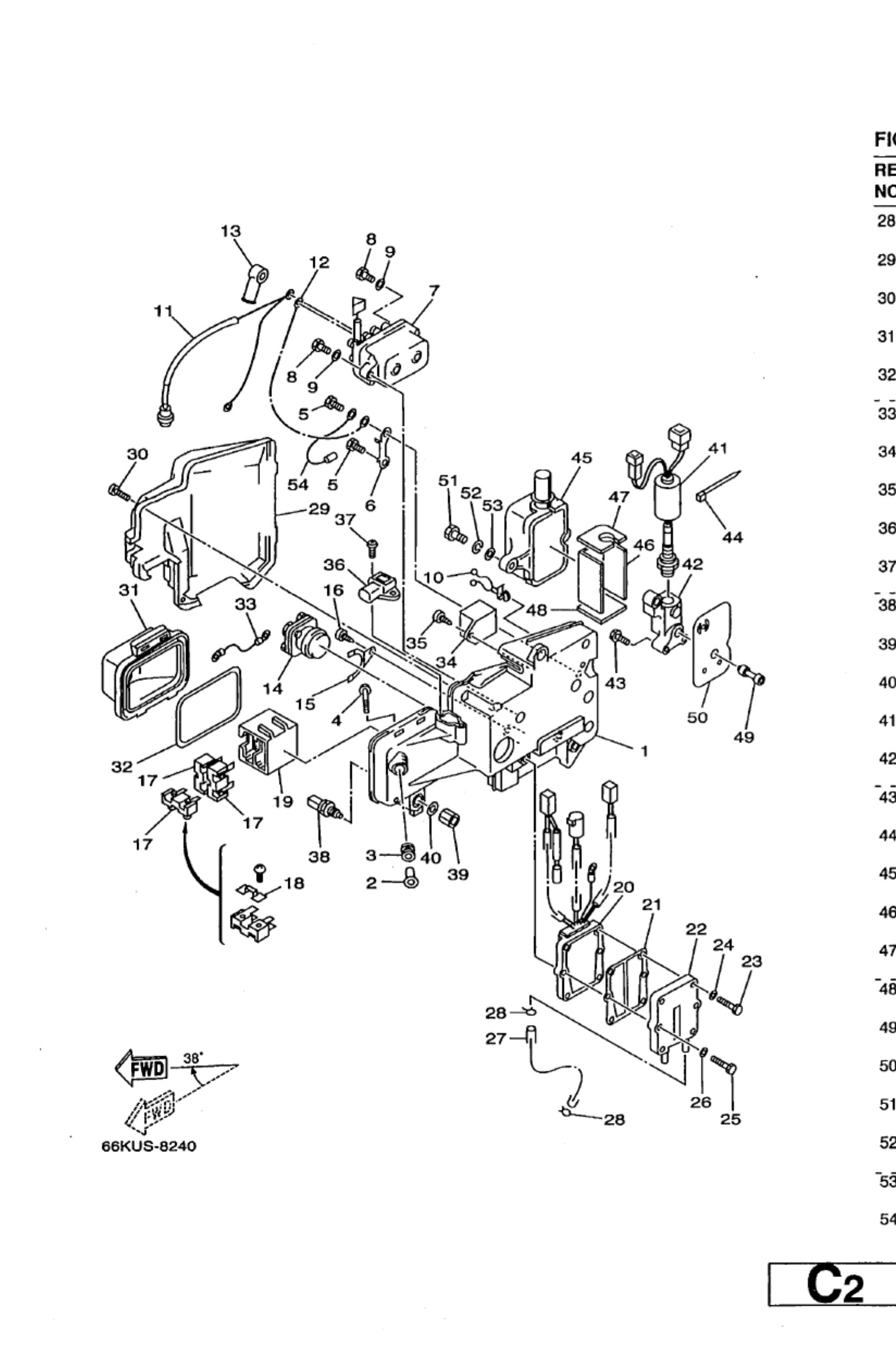

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
28
9046708004
Clip, pipe 6162435600
Loading…
↗
29
65L8194200
Cover
Loading…
↗
30
9016905M00
Screw truss head tapping
Loading…
↗
31
61A8215401
Case
Loading…
↗
32
61A8217600
Damper
Loading…
↗
33
61
-
Loading…
↗
34
65L8195000
Relay assembly
Loading…
↗
35
9778060625
Screw, tapping(65j)
Loading…
↗
36
65L8238000
Sensor, pressure
Loading…
↗
38
65L.8588600
Thermosensor
Loading…
↗
39
9017012M36
Nut
Loading…
↗
40
9020112M34
Washer (692)
Loading…
↗
41
65L8592A00
Sensor
Loading…
↗
42
65L1139500
Holder
Loading…
↗
43
90119-06M74
Bolt, with washer(63m)
Loading…
↗
44
9046513M18
Clamp
Loading…
↗
45
6518563200
Case, Under
Loading…
↗
46
65L1135400
Gasket
Loading…
↗
47
65L1131N00
Gasket, holder
Loading…
↗
48
B5L1139600
Gasket, Holder
Loading…
↗
49
65L1135300
Joint
Loading…
↗
50
65L1135700
Seal, cylinder
Loading…
↗
51
9709506030
Bolt(jf7)
Loading…
↗
51
66KUS8240
WASHER, SPRING
52 92995-06100
Loading…
↗
54
66K8251900
Wire, Earth Lead
Loading…
↗
