225GETO (2002)
ELECTRICAL 3

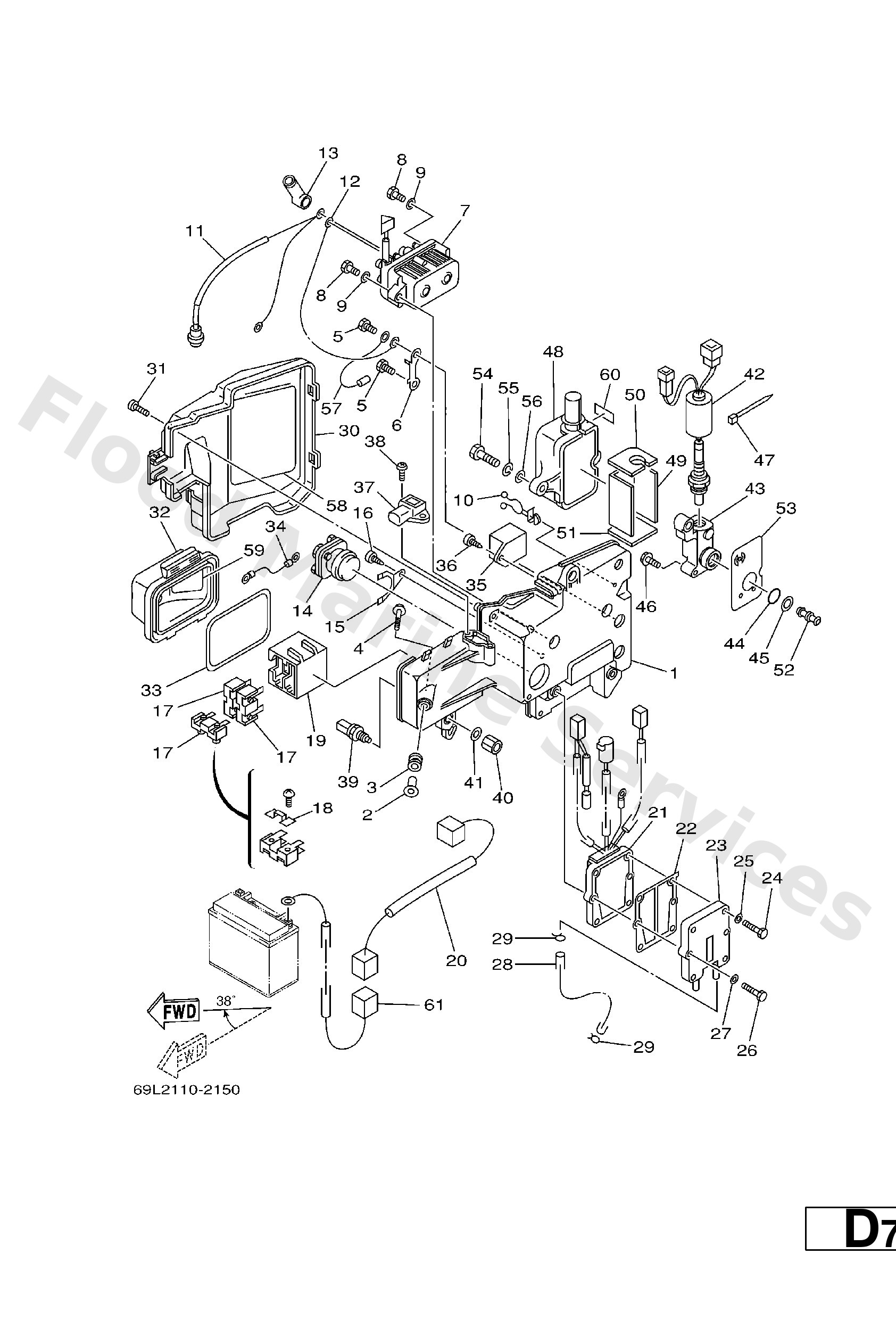

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
65L−81948−00
Bracket
Loading…
↗
2
624−42542−00
Collar
Loading…
↗
3
6A0−82317−00
Damper, ignition coil
Loading…
↗
4
90119−06M65
Bolt, with washer
Loading…
↗
5
97013−06014
Bolt(gj3)
Loading…
↗
6
61A−87149−00
Connector
Loading…
↗
7
61A−81950−00
Relay assembly
Loading…
↗
8
97013−06030
Bolt
Loading…
↗
9
92903−06600
Washer, plain (646)
Loading…
↗
10
90464−18M46
Clamp(65j)
Loading…
↗
11
61A−81949−10
Wire, lead
Loading…
↗
12
61A−81949−00
Wire, lead
Loading…
↗
13
6G5−82119−00
Cover, lead wire
Loading…
↗
14
61A−81941−00
Starter relay assembly
Loading…
↗
15
61A−81952−00
Holder, relay
Loading…
↗
16
97780−50612
Screw, tapping(61a)
Loading…
↗
17
61A−82150−00
Fuse holder assembly
Loading…
↗
18
61A−82151−00
Fuse(12v-80a)
Loading…
↗
19
61A−82153−00
Stay, fuse holder
Loading…
↗
20
66K−81949−10
Wire, Lead
Loading…
↗
21
61A−81960−02
Rectifier & regulator assembly
Loading…
↗
22
69J−81975−A0
Plate, rectifier fitting
Loading…
↗
23
69J−81972−01−1S
Cover, rectifier
Loading…
↗
24
97013−06025
Bolt(62y)
Loading…
↗
28
90445−09224
Hose (l1500)
Loading…
↗
29
90467−08004
Clip, pipe 6162435600
Loading…
↗
30
65L−81942−00
Cover
Loading…
↗
31
90169−05M00
Screw truss head tapping
Loading…
↗
32
61A−82154−01
Case
Loading…
↗
33
61A−82176−00
Damper
Loading…
↗
34
61A−82117−00
Wire, lead
Loading…
↗
35
65L−81950−00
Relay assembly
Loading…
↗
36
97780−60625
Screw, tapping(65j)
Loading…
↗
37
67H−82380−00
Sensor, pressure
Loading…
↗
39
65L−85886−00
Thermosensor
Loading…
↗
40
90170−12M36
Nut
Loading…
↗
41
90201−12M34
Washer (692)
Loading…
↗
42
65L−8592A−01
Sensor
Loading…
↗
43
69L−11395−00
15 −
Loading…
↗
44
93210−17003
O-ring
Loading…
↗
45
69L−11397−00
Gasket
Loading…
↗
46
90119−06M74
Bolt, with washer(63m)
Loading…
↗
47
90465−13M18
Clamp
Loading…
↗
48
65L−85832−00
Case, under
Loading…
↗
49
65L−11354−00
Gasket
Loading…
↗
50
65L−1131N−00
Gasket, holder
Loading…
↗
51
65L−11396−00
Gasket, holder
Loading…
↗
52
65L−11353−11
Joint
Loading…
↗
53
69L−11357−00
Seal, cylinder 3
Loading…
↗
54
97095−06030
Bolt(jf7)
Loading…
↗
55
92995−06100
Washer(6a1)
Loading…
↗
56
92995−06600
Washer, plain (646)
Loading…
↗
57
66K−82519−00
15 −
Loading…
↗
58
65L−81919−00
Graphic, Regulator
Loading…
↗
59
61A−81919−00
Graphic, Regulator
Loading…
↗
60
65L−83625−50
Mark 5
Loading…
↗
61
68F−81949−00
AP
Wire, lead
Loading…
↗
