250GETO (2007)
ELECTRICAL 3

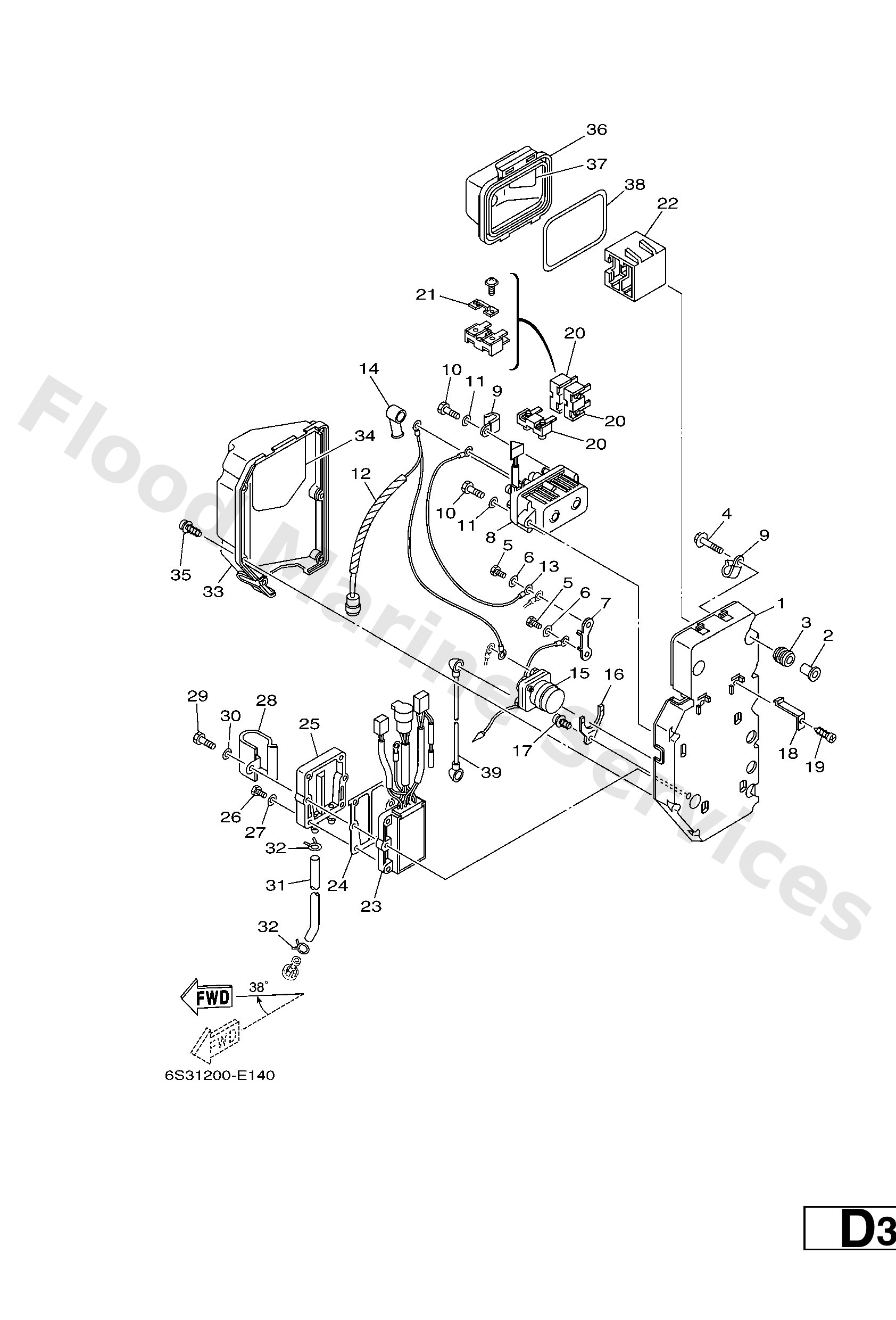

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
61A8194801
Bracket
Loading…
↗
2
9038706119
Collar
Loading…
↗
3
6A08231700
Damper, ignition coil
Loading…
↗
4
9011906M65
Bolt, with washer
Loading…
↗
5
9701306014
Bolt(gj3)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
61A8714900
Connector
Loading…
↗
8
61A8195000
Relay assembly
Loading…
↗
9
9046508M63
Clamp(61u)
Loading…
↗
10
9701306030
Bolt
Loading…
↗
12
61A8194910
Wire, lead
Loading…
↗
13
61A8194900
Wire, lead
Loading…
↗
14
6G58211900
Cover, lead wire
Loading…
↗
15
61A8194100
Starter relay assembly
Loading…
↗
16
61A8195200
Holder, relay
Loading…
↗
17
9778050612
Screw, tapping(61a)
Loading…
↗
18
61A8217100
Stay, fuse box
Loading…
↗
20
61A8215001
Fuse holder assembly
Loading…
↗
21
61A8215100
Fuse(12v-80a)
Loading…
↗
22
61A8215300
Stay, fuse holder
Loading…
↗
23
61A8196002
Rectifier & regulator assembly
Loading…
↗
24
69J81975A0
Plate, rectifier fitting
Loading…
↗
25
69J81972011S
Cover, rectifier
Loading…
↗
26
9701306025
Bolt(62y)
Loading…
↗
28
9046208047
Clamp
Loading…
↗
31
61A2431400
Pipe 1
Loading…
↗
32
9046708M18
Clip
Loading…
↗
33
61A8194200
Cover
Loading…
↗
34
61A8191941
Graphic, Regulator
Loading…
↗
35
9016905M00
Screw truss head tapping
Loading…
↗
36
61A8215401
Case
Loading…
↗
37
61A8191900
Graphic, Regulator
Loading…
↗
38
61A8217600
Damper
Loading…
↗
39
61A8211700
Wire, lead
Loading…
↗
