30HMH (2002)
ELECTRICAL 3

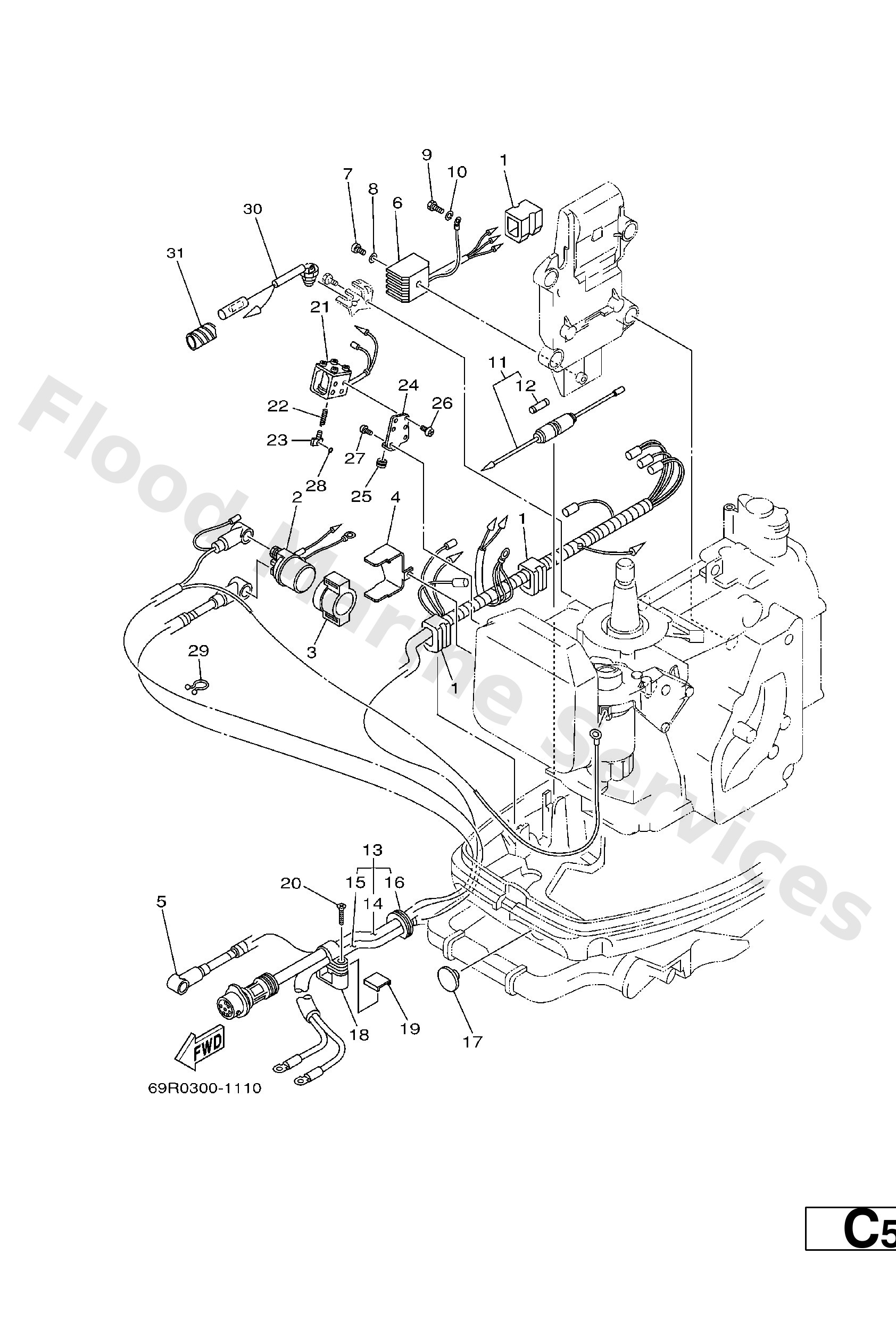

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
90480--17M08
Grommet (689)
Loading…
↗
2
6G1--81941--10
Starter relay
Loading…
↗
3
6G1--81952--00
Holder, relay
Loading…
↗
4
61T--81945--01
Plate, switch fitting
Loading…
↗
5
689--82531--02
Wire, lead
Loading…
↗
6
664--81970--61
Rectifier assembly
Loading…
↗
7
97880--05025
Screw, panhead (a93)
Loading…
↗
8
92990--05600
Washer, plain (646)
Loading…
↗
9
97090--06012
Bolt(gh1)
Loading…
↗
10
92990--06100
Washer(6a1)
Loading…
↗
11
682--82150--10
Fuse holder assembly
Loading…
↗
12
682--82151--00
Fuse
Loading…
↗
13
61T--82580--00
Wire harness assembly 2
Loading…
↗
14
61T--82590--00
Wire harness assembly
Loading…
↗
15
689--82105--13
Battery cable
Loading…
↗
16
689--42724--50
Grommet
Loading…
↗
17
90480--17165
Grommet(663)
Loading…
↗
18
689--82594--10
Clamp
Loading…
↗
19
682--42525--00
Plate, friction 1
Loading…
↗
20
90161--06M00
Screw, tapping(6e7)
Loading…
↗
21
61T--86111--00
Coil, solenoid
Loading…
↗
22
682--86116--00
Wire, pull
Loading…
↗
23
682--86117--00
Hook, wire pull
Loading…
↗
24
61T--86112--00
Stay, solenoid
Loading…
↗
25
90480--10155
Grommet(664)
Loading…
↗
26
98503--04006
Screw, pan head (7h3)
Loading…
↗
27
97880--05012
Screw,pan head (646)
Loading…
↗
28
93210--03261
O-ring (663)
Loading…
↗
29
90465--18147
Clamp
Loading…
↗
30
689--82540--01
Neutral switch ass'y
Loading…
↗
31
90446--10M02
Tube (6e5)
Loading…
↗
