40JMH (2003)
ELECTRICAL 3

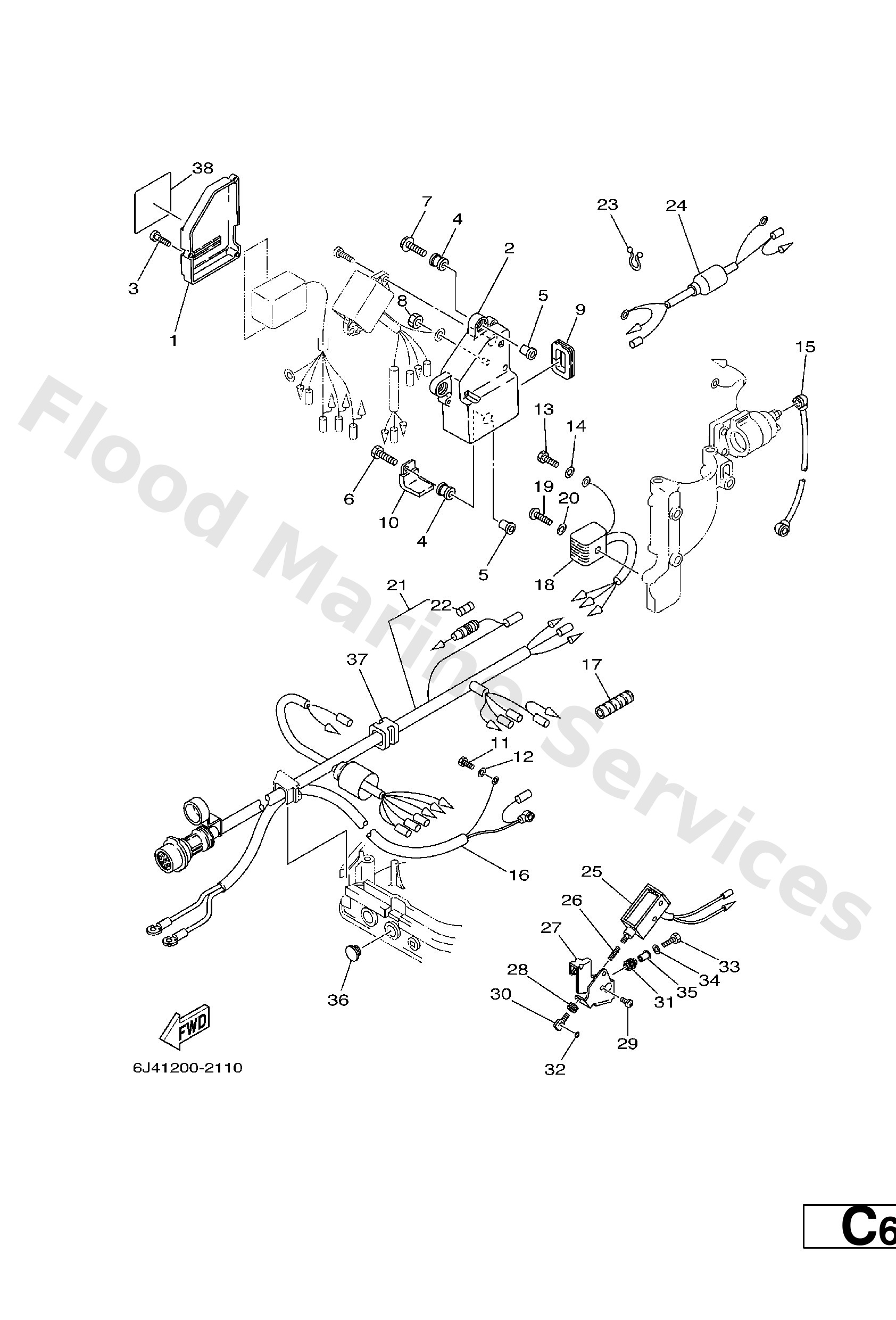

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6F5−81916−40
10 −
Loading…
↗
2
6F5−85542−40
Bracket
Loading…
↗
3
90164−05M00
Screw, tapping (6f5)
Loading…
↗
4
6A0−82317−00
Damper, ignition coil
Loading…
↗
5
624−42542−00
Collar
Loading…
↗
6
97095−06025
Bolt
Loading…
↗
7
90119−06M88
Bolt, with washer
Loading…
↗
8
95380−06600
Nut(661)
Loading…
↗
9
6F5−81922−40
10 −
Loading…
↗
10
90465−06M16
Clamp
Loading…
↗
11
97095−08016
Bolt, hexagon deep recess
Loading…
↗
12
92995−08100
Ybs67-8 washer, spring
Loading…
↗
13
97013−06016
Bolt, hexagon deep recess
Loading…
↗
14
92903−06600
Washer, plain (646)
Loading…
↗
15
6F5−82117−00
Wire, lead
Loading…
↗
16
6F5−82105−00
Battery cable
Loading…
↗
17
90446−10M02
Tube (6e5)
Loading…
↗
18
6F5−81970−61
Rectifier assembly
Loading…
↗
19
97880−05025
Screw, panhead (a93)
Loading…
↗
20
92990−05600
Washer, plain (646)
Loading…
↗
21
6J4−82590−00
Wire Harness assembly
Loading…
↗
22
663−82151−00
Fuse
Loading…
↗
23
90465−18147
Clamp
Loading…
↗
24
6F5−82519−10
10 −
Loading…
↗
25
6J4−86111−00
Coil, solenoid
Loading…
↗
26
6J4−86116−00
Wire, pull
Loading…
↗
27
6J4−86112−00
Stay, solenoid
Loading…
↗
28
90480−10155
Grommet(664)
Loading…
↗
29
97880−05008
Screw, with washer
Loading…
↗
30
682−86117−00
Hook, wire pull
Loading…
↗
32
93210−03261
O-ring (663)
Loading…
↗
34
92995−06600
Washer, plain (646)
Loading…
↗
36
90480−17165
Grommet(663)
Loading…
↗
37
90480−17M08
Grommet (689)
Loading…
↗
38
6F5−83622−60
Mark 2
Loading…
↗
