40YMHO (2006)
ELECTRICAL 3

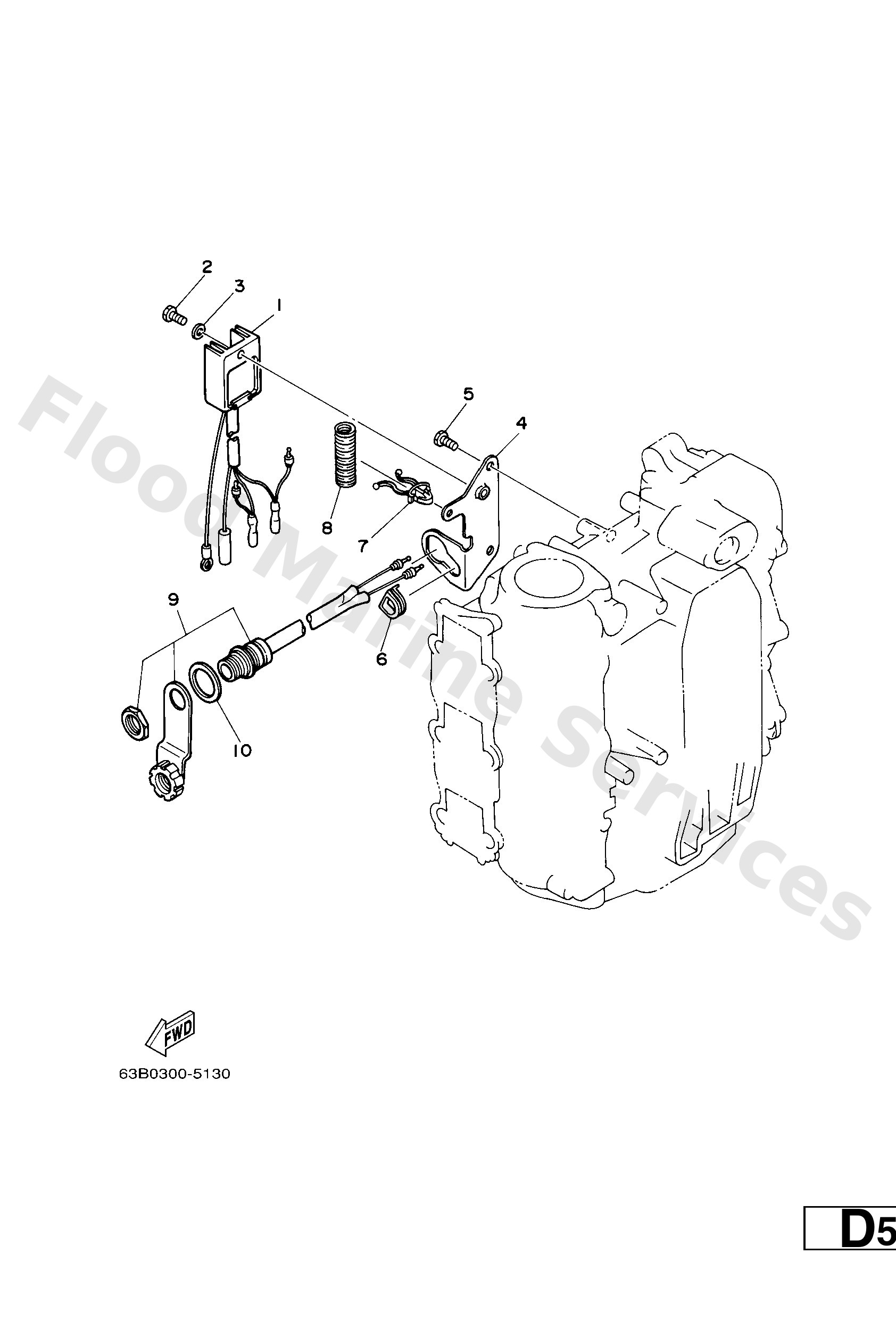

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6J88196000
40V
Rectifier & regulator assembly
Loading…
↗
2
9709506012
40V
Bolt(gh1)
Loading…
↗
3
9299506600
40V
Washer, plain (646)
Loading…
↗
4
6H48197502
40V
Plate, rectifier fitting
Loading…
↗
5
9701306012
40V
Bolt(gh1)
Loading…
↗
6
6F58192200
40V
Grommet 1
Loading…
↗
7
9046412M35
40V
Clamp(6h4)
Loading…
↗
8
9044014M00
40V
Pipe(6h4)
Loading…
↗
9
6828438100
40V
2p concent 1
Loading…
↗
10
9020226M45
40V
Washer, plate(6h4)
Loading…
↗
